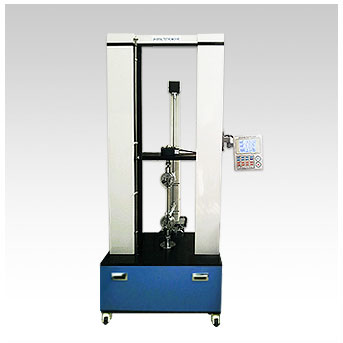

Medium Size Universal Testing Machines

Display Unit

Remote Control Switch





Extensometer

Specimen Fixing Jig

Software & Report Printout



Features

- Multi purpose testing machine

- Test for tensile, compressive and bending strength can be performed.

- Metallic, nonmetallic, fabric, rubber, plastic, adhesive and many other materials can be tested.

- Made by AC servo motor, precise control and low noise is realized.

- PC control and report printout is possible.

Specifications

Model

NA-300K

NA-500K

NA-1000K

NA-2000K

NA-3000K

Max. Capacity

300Kg

500Kg

1000Kg

2000Kg

3000Kg

Loading System

Computerized Numerical Control System Operated

Power Source

AC 220V, 3-phase, 50/60Hz

AC Servo Motor Capacity

0.4KW

0.75KW

1.0KW

1.0KW

1.5KW

Cross-Head

1~500mm/min

Accuracy

Testing Load Accuracy - Within ± 0.4%
Testing Load Accuracy - Within ± 0.5%

Cross-Head

  Moving System

Fast ¡ã ¡å, Slow ¡ã ¡å (use Calibration Mode) - Any time after P.C
on (Test, Stop, Original) Key - After U.T.M Program

Safety Function

  for Over-loading

Emergency S/W, N.F.B, Software Protect of 95% Full Scale

Stroke Limiter

4 Point Limiter

Sample Break Detection

1. Auto    2. User Defined

Sensor

Load Detector - Load cell  /  Stroke Detector - Encoder (1000 pulse)

Reducer

30 : 1

Screw

Precision Ball Screw

Column

2

2

2

2

2

Column to Column

  (mm)

440

500

500





Test Mode

Tensile, Compress, Tear, Cycle, Bending, 90¢ª Peel, Relaxation Test

Jaws

Flat Jaws 1 set

AC Servo Motor & Drive

Mitsubishi

Accuracy of Load cell

Within ± 0.03% (F.S),   Maker - A & D, Korea

Control Board

NA-2012H

Option

Jig, Program, Computer, Extensometer

Dimensions

  (W x D x H, mm)

600 x 350 x 1500

700 x 400 x 1500

700 x 450 x 1700

700 x 450 x 1700

700 x 450 x 1700

Weight (Kg)

250

350

500

600

700
