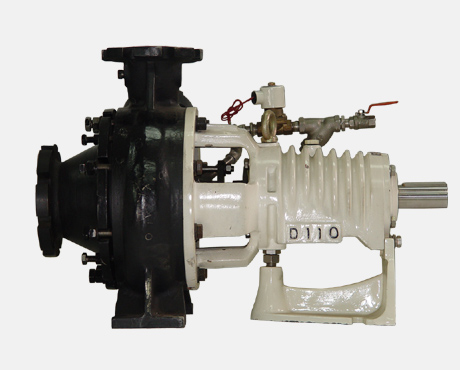

Dukji   DSW   Centrifugal Screw Pump

DSW8065

DSW1080

DSW1210

DSW1515

DSW2015

DSW3025

DSW4035

Applicable Industry Sectors

Sewage disposal plant and wastewater treatment plant, transportation of fish and shellfish, pulp-hides transportation, coal-powered coal transportation, and high density slurry transportation for various industries



Features

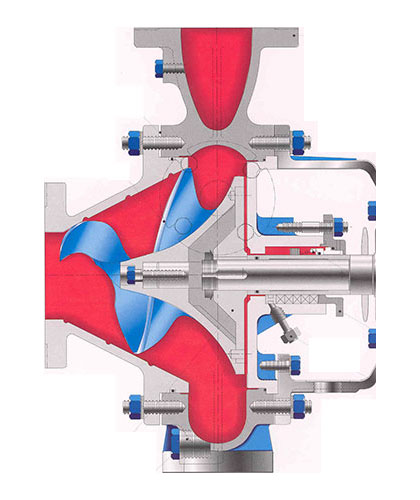

- Screw impeller structure can transfer every solid without blocking.

- In case of repair and maintenance, it is possible to confirm inside of casing through inspection hole on the casing.

- Easy assembling with back pullout structure

- Heavy duty design

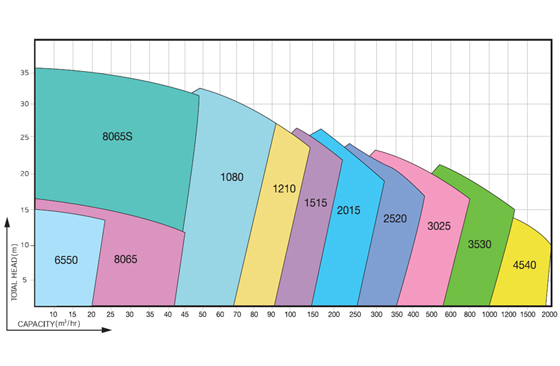

Selection Diagram

Model

Flange (mm)

Motor

(KW)

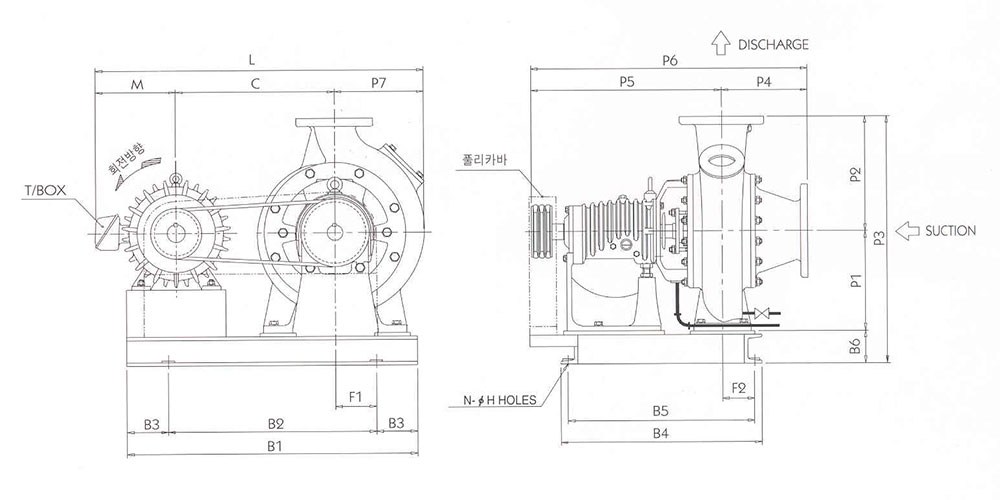

Dimensions (mm)

Weight (Kg)

Pump



Base

Suction

Discharge

P3

P6

L

B1

B5

Pump

Motor

Base

DSW8065

80

65

7.5

495

635

793

800

660

100

70

60

DSW1080

100

80

15

595

730

947

900

670

140

136

70

DSW1210

125

100

15

595

730

947

900

670

140

136

70

DSW1515

150

150

18.5

815

920

1103

1050

830

270

166

140

DSW2015

200

150

22

815

920

1103

1050

830

270

166

140

DSW3025

300

250

37

900

1085

1287

1250

830

350

282

140

DSW4035

400

350

55

1320

1250

1570

1600

1110

550

420

250

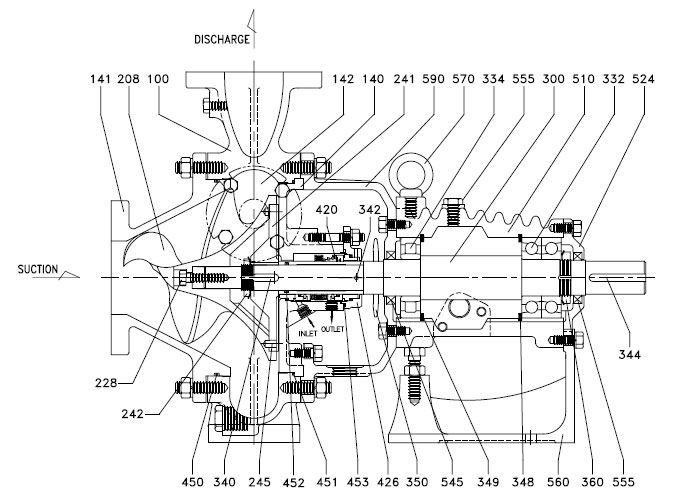

Spare Parts

No

Description

Qty

100

Casing

1

140

Casing Cover

1

141

Suction Cover

1

142

Hand Hole Cover

1

208

Impeller

1

228

Impeller Lock Bolt

1

241

Impeller Lock Plate

1

242

Impeller Plate Lock Nut & Washer

1

245

Impeller Plate Lock Pin

2

300

Shaft

1

310

Sleeve

1

332

Bearing (Outboard)

2

334

Bearing (Inboard)

1

340

Impeller Lock Plate Key

1

342

Sleeve Lock Pin

1

344

Coupling Key

1

348

Snap Ring (Outboard)

1

349

Snap Ring (Inboard)

1

350

Deflector

1

360

Bearing Lock Nut & Washer

1

420

Mechanical Seal

1

426

Seal Gland

1

450

O-Ring (Suction Cover)

1

451

O-Ring (Casing Cover)

1

452

O-Ring (Sleeve)

1

453

O-Ring (Seal Gland)

1

510

Bearing Housing

1

524

Bearing Cover

1

545

Oil Seal (Adapter)

1

555

Oil Seal (bearing Cover)

1

555

Oil Cap

1

560

Support

1

590

Adapter

1

570

Eye Bolt

1
