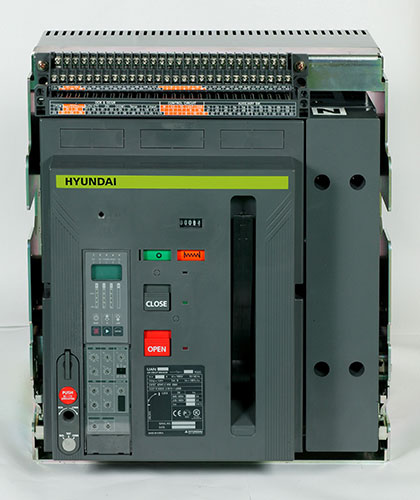

HYUNDAI UAN (New Model) Air Circuit Breaker

UAS

UAN

HiAN

HiAS

Model

A frame

B frame

C frame

D frame

Rated Current (In Max, A)

06 : 630

06 : 630





08 : 800

08 : 800





10 : 1,000

10 : 1,000





12 : 1,250

12 : 1,250





16 : 1,600

16 : 1,600





20 : 2,000

20 : 2,000







25 : 2,500







32 : 3,200

32 : 3,200





40 : 4,000

40 : 4,000

40 : 4,000





50 : 5,000

50 : 5,000







63 : 6,300

Rated Operation Voltage (Ue, V)

690

Rated Insulation Voltage (Ui, V)

1,000

Frequency (Hz)

50/60

Pole

3, 4

Rated Breaking Capacity

(lcu  Sym, kA)

690/600/550V

65

85

85

100

500/480/460V

85

100

100

150

415/380/230/220V

85

100

100

150



UAN Models

Model

Rated Current

[In max] (A)

Frame

Pole

Rated breaking capacity

(Icu) (kA sym)

Mount

UAN06A-3A

06 630A

A

3p

(500V)85

(690V)65

Draw-out

UAN06A-3H

06 630A

A

3p

(500V)85

(690V)65

Fixed

UAN06A-4A

06 630A

A

4p

(500V)85

(690V)65

Draw-out

UAN06A-4H

06 630A

A

4p

(500V)85

(690V)65

Fixed

UAN08A-3A

08 800A

A

3p

(500V)85

(690V)65

Draw-out

UAN08A-3H

08 800A

A

3p

(500V)85

(690V)65

Fixed

UAN08A-4A

08 800A

A

4p

(500V)85

(690V)65

Draw-out

UAN08A-4H

08 800A

A

4p

(500V)85

(690V)65

Fixed

UAN10A-3A

10 1,000A

A

3p

(500V)85

(690V)65

Draw-out

UAN10A-3H

10 1,000A

A

3p

(500V)85

(690V)65

Fixed

UAN10A-4A

10 1,000A

A

4p

(500V)85

(690V)65

Draw-out

UAN10A-4H

10 1,000A

A

4p

(500V)85

(690V)65

Fixed

UAN12A-3A

12 1,250A

A

3p

(500V)85

(690V)65

Draw-out

UAN12A-3H

12 1,250A

A

3p

(500V)85

(690V)65

Fixed

UAN12A-4A

12 1,250A

A

4p

(500V)85

(690V)65

Draw-out

UAN12A-4H

12 1,250A

A

4p

(500V)85

(690V)65

Fixed

UAN16A-3A

16 1,600A

A

3p

(500V)85

(690V)65

Draw-out

UAN16A-3H

16 1,600A

A

3p

(500V)85

(690V)65

Fixed

UAN16A-4A

16 1,600A

A

4p

(500V)85

(690V)65

Draw-out

UAN16A-4H

16 1,600A

A

4p

(500V)85

(690V)65

Fixed

UAN20A-3A

20 2,000A

A

3p

(500V)85

(690V)65

Draw-out

UAN20A-3V

20 2,000A

A

3p

(500V)85

(690V)65

Fixed

UAN20A-4A

20 2,000A

A

4p

(500V)85

(690V)65

Draw-out

UAN20A-4V

20 2,000A

A

4p

(500V)85

(690V)65

Fixed

UAN20B-3A

20 2,000A

B

3p

(500V)100

(690V)85

Draw-out

UAN20B-3H

20 2,000A

B

3p

(500V)100

(690V)85

Fixed

UAN20B-4A

20 2,000A

B

4p

(500V)100

(690V)85

Draw-out

UAN20B-4H

20 2,000A

B

4p

(500V)100

(690V)85

Fixed

UAN25B-3A

25 2,500A

B

3p

(500V)100

(690V)85

Draw-out

UAN25B-3H

25 2,500A

B

3p

(500V)100

(690V)85

Fixed

UAN25B-4A

25 2,500A

B

4p

(500V)100

(690V)85

Draw-out

UAN25B-4H

25 2,500A

B

4p

(500V)100

(690V)85

Fixed

UAN32B-3A

32 3,200A

B

3p

(500V)100

(690V)85

Draw-out

UAN32B-3H

32 3,200A

B

3p

(500V)100

(690V)85

Fixed

UAN32B-4A

32 3,200A

B

4p

(500V)100

(690V)85

Draw-out

UAN32B-4H

32 3,200A

B

4p

(500V)100

(690V)85

Fixed

UAN40B-3A

40 4,000A

B

3p

(500V)100

(690V)85

Draw-out

UAN40B-3V

40 4,000A

B

3p

(500V)100

(690V)85

Fixed

UAN40B-4A

40 4,000A

B

4p

(500V)100

(690V)85

Draw-out

UAN40B-4V

40 4,000A

B

4p

(500V)100

(690V)85

Fixed

UAN40C-3A

40 4,000A

C

3p

(500V)100

(690V)85

Draw-out

UAN40C-3V

40 4,000A

C

3p

(500V)100

(690V)85

Fixed

UAN40C-4A

40 4,000A

C

4p

(500V)100

(690V)85

Draw-out

UAN40C-4V

40 4,000A

C

4p

(500V)100

(690V)85

Fixed

UAN50C-3A

50 5,000A

C

3p

(500V)100

(690V)85

Draw-out

UAN50C-3V

50 5,000A

C

3p

(500V)100

(690V)85

Fixed

UAN50C-4A

50 5,000A

C

4p

(500V)100

(690V)85

Draw-out

UAN50C-4V

50 5,000A

C

4p

(500V)100

(690V)85

Fixed
