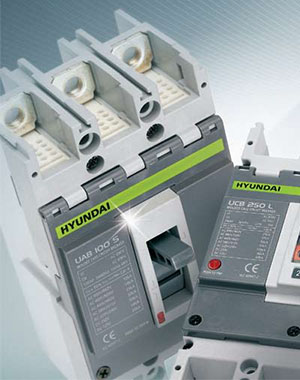

HYUNDAI
UCB-series (50 ~ 1600AF) Molded
Case Circuit Breaker (MCCB)
|
Model |
Frame |
Pole |
Rated Current
(A) |
Breaking
Capacity [Icu] (kA rms) |
|
AC220V AC240V |
AC380V AC415V |
AC440V AC460V |
AC600V AC660V |
|
UCB50R |
50 |
2, 3, 4 |
15,
20, 30, 40, 50 |
50 |
30/25 |
25 |
10 |
|
UCB50H |
15,
16, 20, 25, 30, 32, 40, 50 |
85 |
42 |
42 |
20 |
|
UCB50L |
15,
16, 20, 25, 30, 32, 40, 50 |
100 |
50 |
50 |
25 |
|
UCB100R |
125 |
2, 3, 4 |
15,
16, 20, 25, 30, 32, 40,
50, 60, 63, 75,
80, 100, 125
|
50 |
30/25 |
25 |
10 |
|
UCB100S |
65 |
42/36 |
35 |
18 |
|
UCB100H |
85 |
42 |
42 |
20 |
|
UCB100L |
100 |
50 |
50 |
25 |
|
UCB160H |
160 |
2, 3, 4 |
100,
125, 160 |
85 |
42 |
42 |
20 |
|
UCB160L |
100 |
50 |
50 |
25 |
|
UCB250R |
250 |
2, 3, 4 |
100,
125, 150, 160, 175, 200, 225, 250 |
35 |
25/18 |
18 |
7.5 |
|
UCB250S |
100,
125, 150, 160, 175, 200, 225, 250 |
50 |
35/25 |
25 |
10 |
|
UCB250N |
100,
125, 150, 160, 175, 200, 225, 250 |
65 |
42/36 |
35 |
18 |
|
UCB250H |
125,
150, 160, 175, 200, 225, 250 |
85 |
42 |
42 |
20 |
|
UCB250L |
125,
150, 160, 175, 200, 225, 250 |
100 |
50 |
50 |
25 |
|
UCB400R |
400 |
2, 3, 4 |
250,
300, 320, 350, 400 |
35 |
30 |
25 |
18 |
|
UCB400S |
50 |
42 |
35 |
22 |
|
UCB400H |
85 |
65 |
50 |
25 |
|
UCB400L |
125 |
100 |
85 |
30 |
|
UCB630R |
630 |
2, 3, 4 |
500,
630 |
50 |
45 |
35 |
22 |
|
UCB630S |
100 |
65 |
50 |
25 |
|
UCB630H |
100 |
85 |
65 |
35 |
|
UCB630L |
125 |
100 |
85 |
35 |
|
UCB800R |
800 |
2, 3, 4 |
700,
800 |
50 |
45 |
35 |
25 |
|
UCB800S |
100 |
65 |
50 |
25 |
|
UCB800H |
100 |
85 |
65 |
35 |
|
UCB800L |
125 |
100 |
85 |
35 |
|
UCB1000S |
1000 |
3, 4 |
505-1,000 |
100 |
100 |
75 |
40 |
|
UCB1000L |
150 |
130 |
100 |
60 |
|
UCB1250S |
1250 |
3, 4 |
630-1,250 |
100 |
100 |
75 |
40 |
|
UCB1250L |
150 |
130 |
100 |
60 |
|
UCB1600S |
1600 |
3 |
640-1,600 |
100 |
65 |
45 |
25 |
|
