HYUNDAI

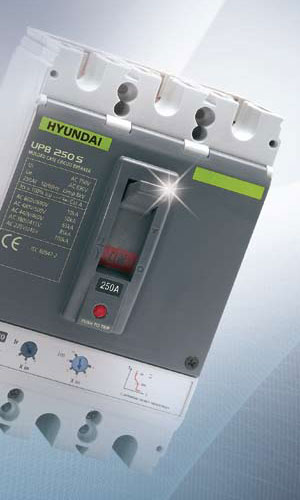

UPB (125 ~ 630AF) Molded
Case Circuit Breaker (MCCB)
|
Model |
Frame |
Pole |
Rated Current
(A) |
Breaking
Capacity [Icu] (kA rms) |
Trip Mechanism
& Characteristics |
|
AC220V AC240V |
AC380V AC415V |
AC440V AC460V |
AC600V AC660V |
Thermal Magnetic |
Electronic |
|
Fixed |
Adjustable |
|
UPB100S |
125 |
3, 4 |
15,
16, 20, 25, 30, 32, 40, 50, 60, 63, 75,
80, 100, 125 |
100 |
85 |
65 |
10 |
O |
O |
O |
|
UPB100H |
3, 4 |
15,
16, 20, 25, 30, 32, 40, 50, 60, 63, 75,
80, 100, 125 |
130 |
100 |
85 |
10 |
O |
O |
O |
|
UPB100L |
3, 4 |
15,
16, 20, 25, 30, 32, 40, 50, 60, 63, 75,
80, 100, 125 |
150 |
130 |
100 |
25 |
O |
O |
O |
|
UPB100X |
3, 4 |
15,
16, 20, 25, 30, 32, 40, 50, 60, 63, 75,
80, 100, 125 |
200 |
150 |
150 |
25 |
O |
O |
O |
|
UPB160S |
160 |
3, 4 |
100,
125, 160 |
100 |
85 |
65 |
10 |
O |
O |
O |
|
UPB160H |
3, 4 |
100,
125, 160 |
130 |
100 |
85 |
10 |
O |
O |
O |
|
UPB160L |
3, 4 |
100,
125, 160 |
150 |
130 |
100 |
25 |
O |
O |
O |
|
UPB160X |
3, 4 |
100,
125, 160 |
200 |
150 |
150 |
25 |
O |
O |
O |
|
UPB250S |
250 |
3, 4 |
125,
150, 160, 175, 200, 225, 250 |
100 |
85 |
65 |
10 |
O |
O |
O |
|
UPB250H |
3, 4 |
125,
150, 160, 175, 200, 225, 250 |
130 |
100 |
85 |
10 |
O |
O |
O |
|
UPB250L |
3, 4 |
125,
150, 160, 175, 200, 225, 250 |
150 |
130 |
100 |
25 |
O |
O |
O |
|
UPB250X |
3, 4 |
125,
150, 160, 175, 200, 225, 250 |
200 |
150 |
150 |
25 |
O |
O |
O |
|
UPB400S |
400 |
3, 4 |
200-400 |
100 |
85 |
65 |
10 |
- |
- |
O |
|
UPB400H |
3, 4 |
200-400 |
130 |
100 |
85 |
10 |
- |
- |
O |
|
UPB400L |
3, 4 |
200-400 |
150 |
130 |
100 |
25 |
- |
- |
O |
|
UPB400X |
3, 4 |
200-400 |
200 |
150 |
150 |
25 |
- |
- |
O |
|
UPB630S |
630 |
3, 4 |
320-630 |
100 |
85 |
65 |
10 |
- |
- |
O |
|
UPB630H |
3, 4 |
320-630 |
130 |
100 |
85 |
10 |
- |
- |
O |
|
UPB630L |
3, 4 |
320-630 |
150 |
130 |
100 |
25 |
- |
- |
O |
|
UPB630X |
3, 4 |
320-630 |
200 |
150 |
150 |
25 |
- |
- |
O |
|
