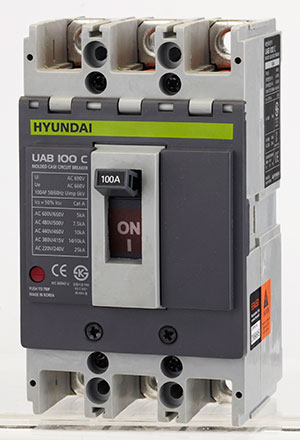

HYUNDAI UAB (30 ~ 100AF)   Molded Case Circuit Breaker (MCCB)

Model	Frame	Pole	Rated Current (A)	Breaking Capacity [Icu] (kA rms)				Trip Mechanism & Characteristics
				AC220V AC240V	AC380V AC415V	AC440V AC460V	AC600V AC660V	Hydraulic Magnetic	Thermal Magnetic
									Fixed	Adjustable
UAB30C	30	2, 3	3, 5, 10, 15, 20, 30	10	7.5/5	5	2.5	O	-	-
UAB30R		2, 3	5, 10, 15, 20, 30	25	14/10	10	5	O	-	-
UAB50C	50	2, 3, 4	5, 10, 15, 20, 30, 40, 50	10	7.5/5	5	2.5	O	-	-
UAB50R		2, 3, 4	5, 10, 15, 20, 30, 40, 50	25	14/10	10	5	O	-	-
UAB50S		2, 3, 4	15, 16, 20, 25, 30, 32, 40, 50	42	25	21	7.5	-	O	O
UAB50H		2, 3, 4	15, 16, 20, 25, 30, 32, 40, 50	50	30	25	10	-	O	O
UAB60C	60	2, 3, 4	5, 10, 15, 20, 30, 40, 50, 60	10	7.5/5	5	2.5	O	-	-
UAB60R		2, 3, 4	5, 10, 15, 20, 30, 40, 50, 60	25	14/10	10	5	O	-	-
UAB100C	100	2, 3, 4	5, 10, 15, 20, 30, 40, 50, 60, 75, 100	25	14/10	10	5	O	-	-
UAB100R		2, 3, 4	15, 16, 20, 25, 30, 32, 40, 50, 60, 63, 75, 80, 100	42	25	21	7.5	-	O	O
UAB100S		2, 3, 4	15, 16, 20, 25, 30, 32, 40, 50, 60, 63, 75, 80, 100	50	30	25	10	-	O	O
