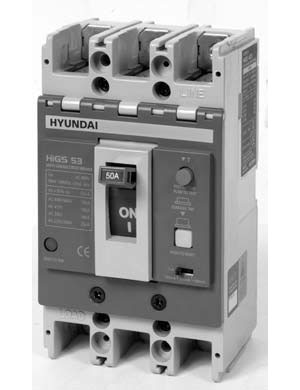

HYUNDAI
HiGE HiGS HiGH HiGL (Old
Model) Earth
Leakage Circuit Breaker (ELCB)
|
Model |
Type |
Pole |
Breaking
Capacity [Icu]
(kA rms) |
Rated Current
(A) |
|
AC220V |
AC380V |
AC460V |
|
HiGE50 |
Economy
|
2,
3 |
10 |
7.5 |
5 |
5,
10, 15, 20, 30, 40, 50 |
|
4 |
25 |
14 |
10 |
5,
10, 15, 20, 30, 40, 50 |
|
HiGE63 |
3 |
10 |
7.5 |
5 |
60 |
|
HiGE100 |
2,
3 |
25 |
14 |
10 |
60,
75, 100 |
|
HiGE225 |
2,
3 |
35 |
18 |
18 |
125,
150, 175, 200, 225 |
|
HiGE403 |
3 |
35 |
30 |
25 |
250,
300, 350, 400 |
|
HiGE603 |
3 |
50 |
45 |
35 |
500,
600 |
|
HiGE803 |
3 |
50 |
45 |
35 |
700,
800 |
|
HiGS30 |
Standard
|
2,
3 |
10 |
7.5 |
5 |
5,
10, 15, 20, 30 |
|
HiGS50 |
2,
3 |
25 |
14 |
10 |
5,
10, 15, 20, 30, 40, 50 |
|
4 |
50 |
25 |
25 |
15,
20, 30, 40, 50 |
|
HiGS63 |
3 |
25 |
14 |
10 |
60 |
|
HiGS100 |
2,
3, 4 |
50 |
30 |
25 |
15,
20, 30, 40, 50, 60, 75, 100 |
|
HiGS225 |
3,
4 |
50 |
25 |
25 |
125,
150, 175, 200, 225 |
|
HiGS403 |
3 |
50 |
42 |
35 |
250,
300, 350, 400 |
|
HiGS603 |
3 |
100 |
65 |
50 |
500,
600 |
|
HiGS803 |
3 |
100 |
65 |
50 |
700,
800 |
|
HiGH33 |
High
Breaking Capacity
|
3 |
25 |
14 |
10 |
5,
10, 15, 20, 30 |
|
HiGH50 |
3 |
50 |
30 |
25 |
15,
20, 30, 40, 50 |
|
4 |
65 |
35 |
35 |
15,
20, 30, 40, 50 |
|
HiGH100 |
3,
4 |
65 |
35 |
35 |
15,
20, 30, 40, 50, 60, 75, 100 |
|
HiGH225 |
3,
4 |
65 |
35 |
35 |
125,
150, 175, 200, 225 |
|
HiGH403 |
3 |
85 |
65 |
50 |
250,
300, 350, 400 |
|
HiGL403 |
Current
Limiting |
3 |
125 |
100 |
85 |
250,
300, 350, 400 |
|
HiGL603 |
3 |
125 |
100 |
85 |
500,
600 |
|
HiGL803 |
3 |
125 |
100 |
85 |
700,
800 |
|
