RC-Series Control Transformer



Standard Specifications

Type : Dry Type

Rated capacity : 15VA up to 3000VA

Cooling type : Natural air cooling

Rated voltage : Below 690V

Insulation : B, F, H

Rated frequency : 50/60 Hz

Rating condition : Continuous rating

Phase : Single phase

Ambient temp. : 40 ℃

Voltage ratio : ± 1 %

Model

Capacity

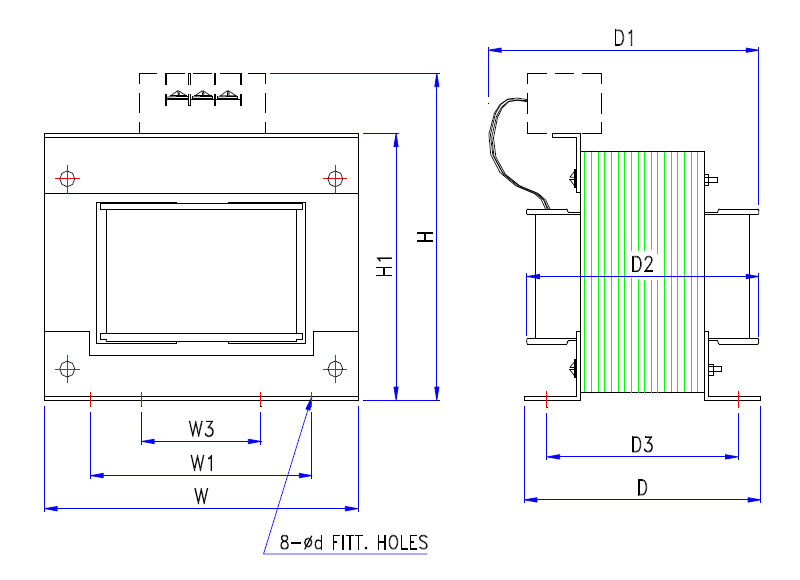

Dimensions(mm)

Weight
(kg)

W

W1

W3

D

D1

D2

D3

H1

H

d

RC-15

15VA

66

-

39 58 75 54 47

-

80

Φ5.5

2.0
RC-20

20VA

66

-

39 58 75 54 47

-

80

Φ5.5

2.0
RC-30

30VA

76 65 39 74 75 60 61

-

91

Φ5.5

2.3
RC-50

50VA

76 65 39 86 90 75 73

-

91

Φ5.5

2.7
RC-75

75VA

86 74 42 88 87 72 73 82

H1+F

Φ5.5

3.2
RC-100

100VA

86 74 42 89 100 85 75 82

H1+F

Φ6.5

3.3
RC-150

150VA

96 82 50 95 100 85 75 96

H1+F

Φ6.5

3.8
RC-200

200VA

105 90 54 104 105 95 86 97

H1+F

Φ6.5

3.8
RC-300

300VA

105 90 54 114 120 105 95 97

H1+F

Φ6.5

4.4
RC-400

400VA

114 98 62 123 130 115 105 108

H1+F

Φ6.5

6.6
RC-500

500VA

133 115 76 116 140 115 94 124

H1+F

Φ6.5

6.6
RC-600

600VA

133 115 76 116 140 115 94 124

H1+F

Φ6.5

7.0
RC-750

750VA

133 115 76 127 160 130 104 124

H1+F

Φ7.5

9.3
RC-1000

1000VA

153 130 90 130 175 130 105 142

H1+F

Φ7.5

10.4
RC-1200

1200VA

153 130 90 140 185 140 115 142

H1+F

Φ7.5

12.5
RC-1500

1500VA

181 143 98 155 210 170 130 177

H1+F

Φ9.5

17.1
RC-2000

2000VA

181 143 98 164 220 180 140 177

H1+F

Φ9.5

19.5
RC-2500

2500VA

219 160 120 150 210 170 115 204

H1+F

Φ9.5

23.5
RC-3000

3000VA

219 160 120 155 210 170 120 204

H1+F

Φ9.5

26.8
