CFP Process Pump



CFP Pump Models

Model

Motor

Frame

CFP25-130

CFP25-160

71

80

90L

100L

112M

132S

132M

160M

160L

CFP25-200

71

80

90L

100L

112M

132S

132M

160M

160L

180M

180L

CFP40-130

CFP40-160

71

80

90L

100L

112M

132S

132M

160M

160L

CFP40-200

71

80

90L

100L

112M

132S

132M

160M

160L

180M

180L

CFP40-250

90L

100L

112M

132S

132M

160M

160L

180M

180L

200L

225S

CFP50-130

CFP50-160

71

80

90L

100L

112M

132S

160M

160L

180M

180L

CFP50-200

71

80

90L

100L

112M

132S

160M

160L

180M

180M

180L

200L

CFP50-250

90L

100L

112M

132S

132M

160M

160L

180M

180L

200L

225S

250S

250M

280S

CFP50-320

90L

100L

112M

132S

132M

160M

160L

180M

180L

200L

225S

250S

250M

280S

CFP80-130

CFP80-160

90L

100L

112M

132S

132M

160M

160L

180M

180L

200L

225S

CFP80-200

90L

100L

112M

132S

132M

160M

160L

180M

180L

200L

225S

250S

250M

280S

CFP80-250

90L

100L

112M

132S

132M

160M

160L

180M

180L

200L

225S

250S

250M

280S

280M

315S

CFP80-320

112M

132S

132M

160M

160L

180M

180L

200L

225S

250S

250M

280S

280M

315S

Model

Motor

Frame

CFP100-160

90L

100L

112M

132S

132M

160M

160L

200L

180M

180L

200L

225S

250S

250M

280S

CFP100-200

CFP100-250X

112M

132S

132M

160M

160L

180M

180L

200L

225S

250S

250M

280S

280M

315S

315M

CFP100-250XA

225S

250S

250M

280S

280M

315S

315M

CFP100-320X

132S

132M

160M

160L

180M

180L

200L

225S

CFP100-320XA

250M

280S

280M

315S

315M

CFP100-400X

132M

160M

160L

180M

180L

200L

225S

205S

250M

CFP100-320Y

132M

160M

160L

180M

180L

200L

225S

250S

250M

CFP100-400Y

160L

180M

180L

200L

225S

250S

250M

280S

280M

CFP100-500

180L

200L

225S

250S

250M

280S

280M

315S

315M

CFP150-200

CFP150-250

112M

132S

132M

160M

160L

180M

180L

200L

CFP150-320

CFP150-400

160L

180M

180L

200L

225S

250S

250M

280S

280M

315S

CFP150-500

200L

225S

250S

250M

280S

280M

315S

315M

CFP200-200

160M

160L

180M

180L

200L

225S

250S

250M

280S

CFP200-250

160L

180M

180L

200L

225S

250S

250M

280S

280M

CFP250-250

200L

225S

250S

250M

280S

280M

315S

315M

CFP200-320

CFP200-400

200L

225S

250S

250M

280S

280M

315S

315M

CFP200-500

250M

280S

280M

315S

315M

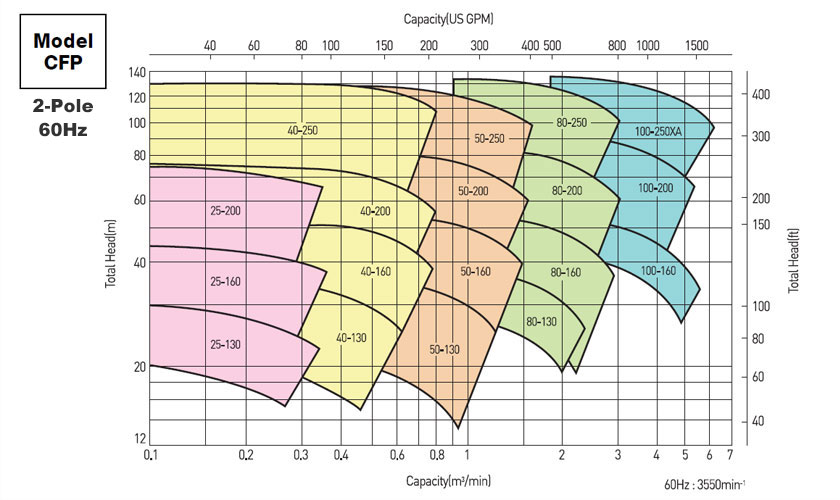

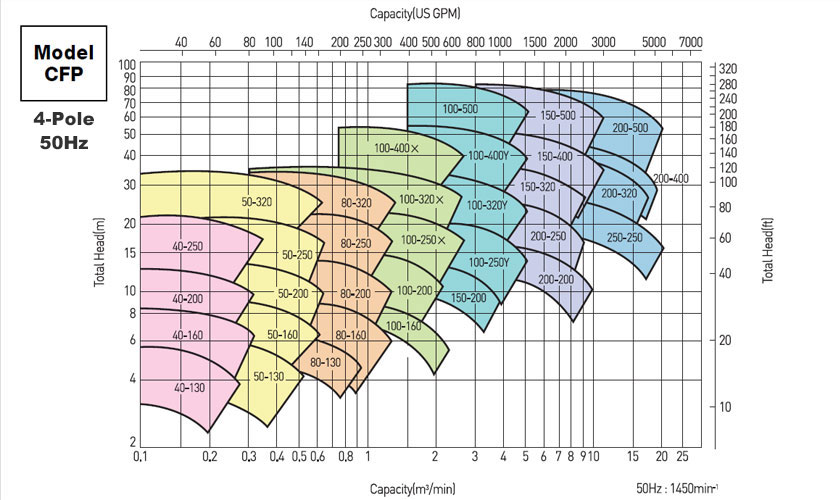

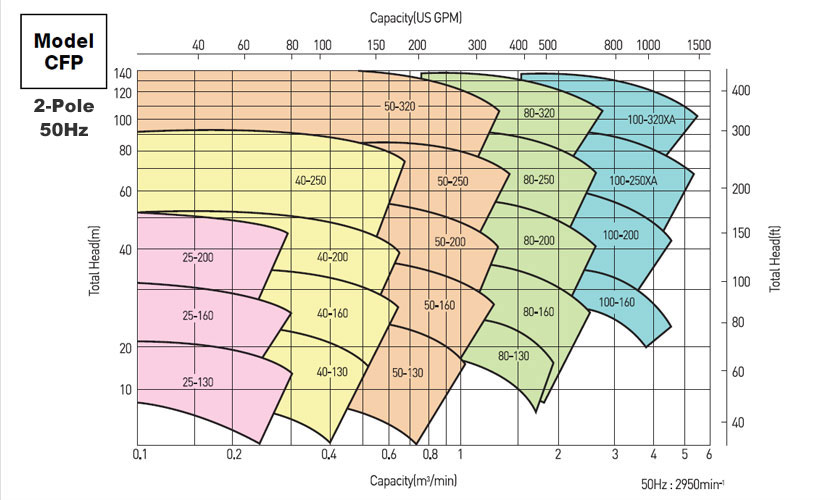

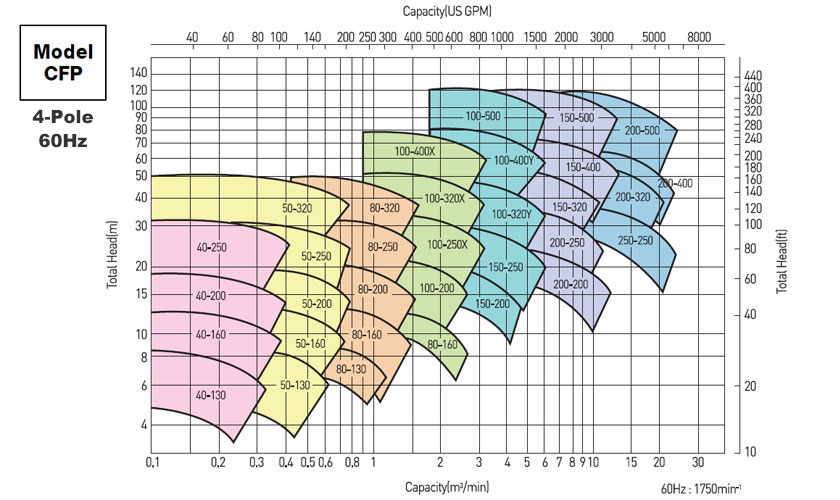

Selection Diagram

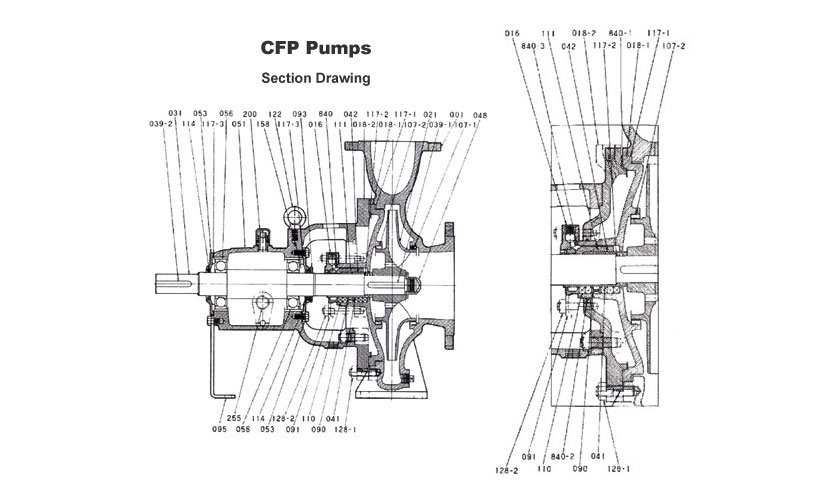

Spare Parts

Part No.

Part Name

001

Casing

016

Seal Cover

018-1

Gland Cover(I)

018-2

Gland Cover(II)

021

Impeller

031

Shaft

039-1

Impeller Key

039-2

Coupling Key

041

Packing Sleeve

042

Mechanical Seal Sleeve

048

Impeller Nut

051

Bearing Housing

Part No.

Part Name

053

Bearing Cover

056

Ball Bearing

066

Cooling Cover

090

Lantern Ring

091

Packing Gland

093

Flinger

095

Stay

107-1

Liner Ring

107-2

Liner Ring

110

Gland Packing

111

Mechanical Seal

114

Oil Seal

Part No.

Part Name

117-1

Sheet Gasket

117-2

Shaft Sleeve Gasket

117-3

Bearing Cover Gasket

117-4

Cooling Cover Gasket

122

Eye Bolt

128-1

Casing Set Bolt

128-2

Mechanical Seal Cover Bolt

158

Wave Washer

200

Air Vent

255

Oil Level Gauge

840-1

Gland Cover O-Ring

840-2

Gland Cover O-Ring

840-3

Mechanical Seal Cover O-Ring
