HDR Double Suction Pump



HDR Models: Suction Diameter 350 ~ 500mm

Model

Suction

(mm)

Discharge

(mm)

HDR200-500A

250

200

HDR250-390G

340

250

HDR250-470H

340

250

HDR250-580J

340

250

HDR300-300E

340

300

HDR300-330F

340

300

HDR300-440G

400

300

HDR300-530H

400

300

HDR300-660J

400

300

HDR350-340E

400

340

HDR350-370F

400

350

HDR350-490G

450

340

HDR350-550G

500

340

HDR350-600H

450

350

HDR350-670H

500

340

HDR350-740J

450

300

HDR350-830J

500

340

HDR400-380E

450

400

HDR400-420F

450

400

HDR400-470F

500

400

HDR450-430E

500

450







HDR Models: Suction Diameter 600 ~ 1000mm

Model

Suction

(mm)

Discharge

(mm)

HDR400-1000J

600

400

HDR450-680G

600

450

HDR450-850H

600

450

HDR450-1200J

700

450

HDR500-520E

600

500

HDR500-580F

600

500

HDR500-680G

600

450

HDR500-810G

700

500

HDR500-1020H

700

500

HDR500-1310J

800

500

HDR600-620E

700

600

HDR600-690F

700

600

HDR600-760F

800

600

HDR600-890G

800

600

HDR600-1020G

900

600

HDR600-1120H

800

600

HDR600-1280H

900

600

HDR600-1500J

900

600

HDR700-680E

800

700

HDR700-870F

900

700

HDR700-1160G

1000

700

HDR700-1460H

1000

700

HDR700-1710J

1000

700

HDR800-790E

900

800

HDR800-990F

1000

800

HDR900-890E

1000

900

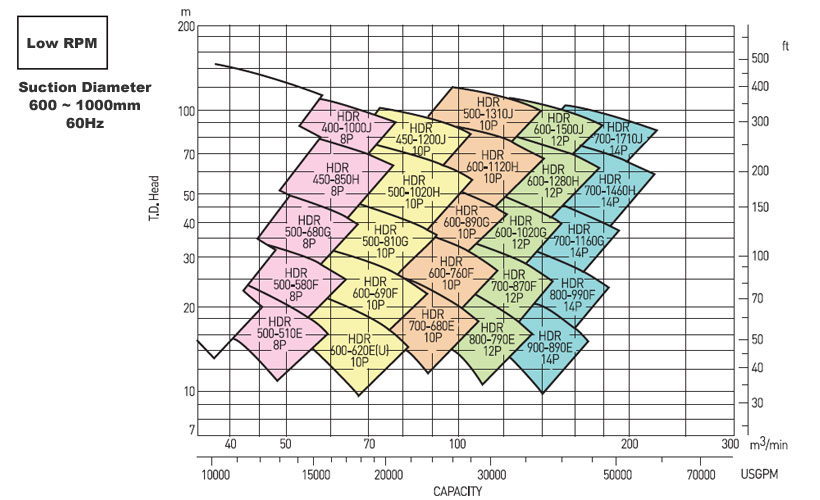

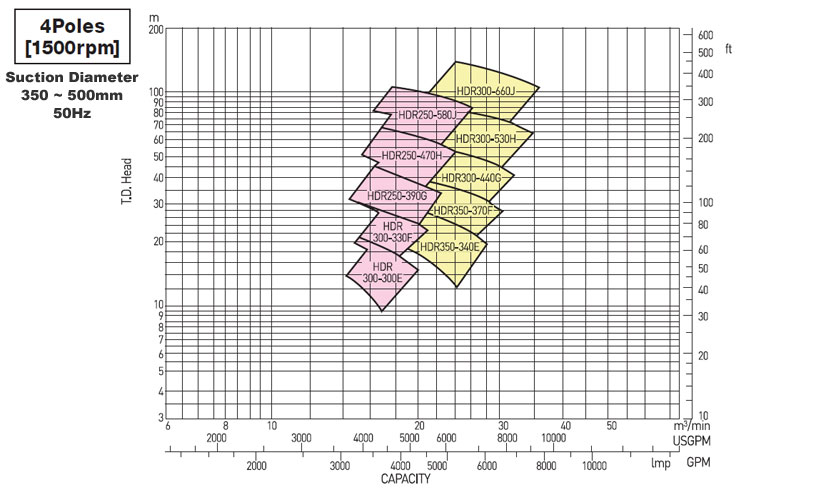

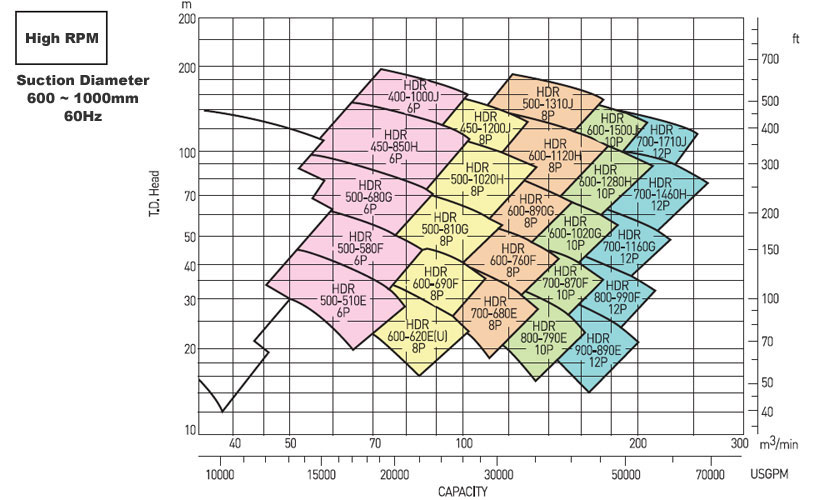

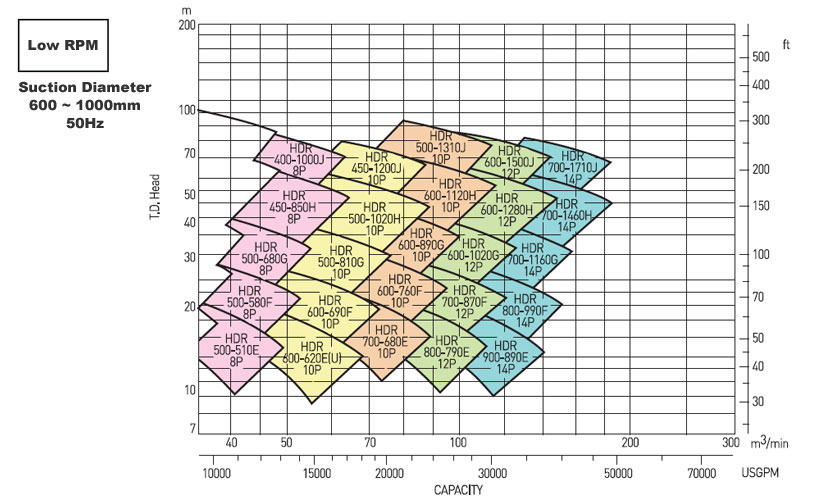

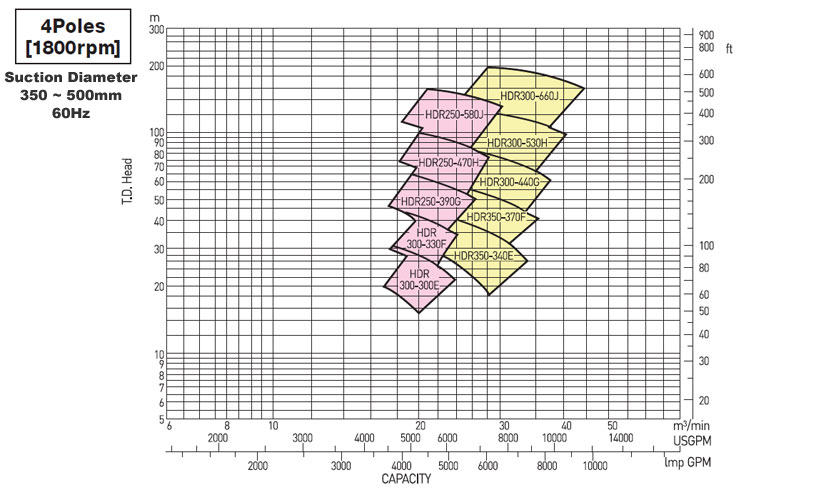

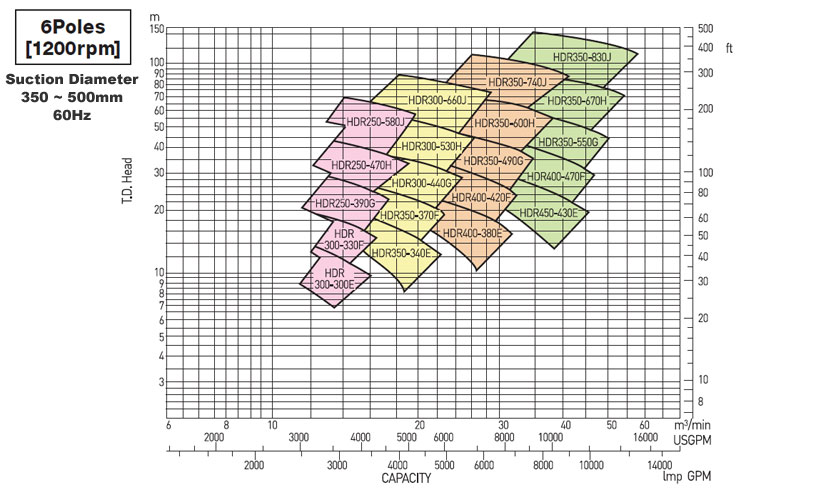

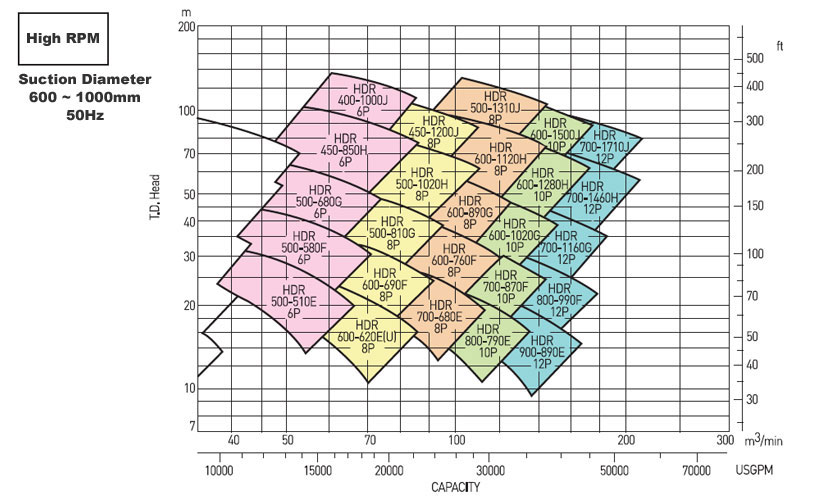

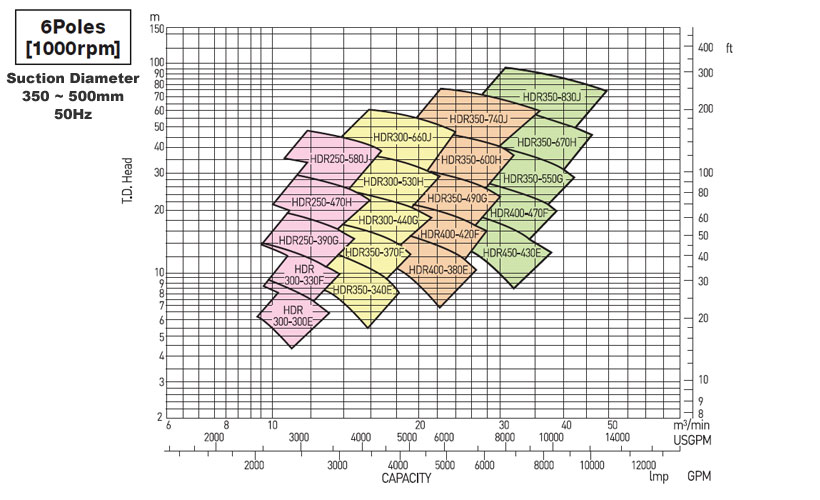

Selection Diagram

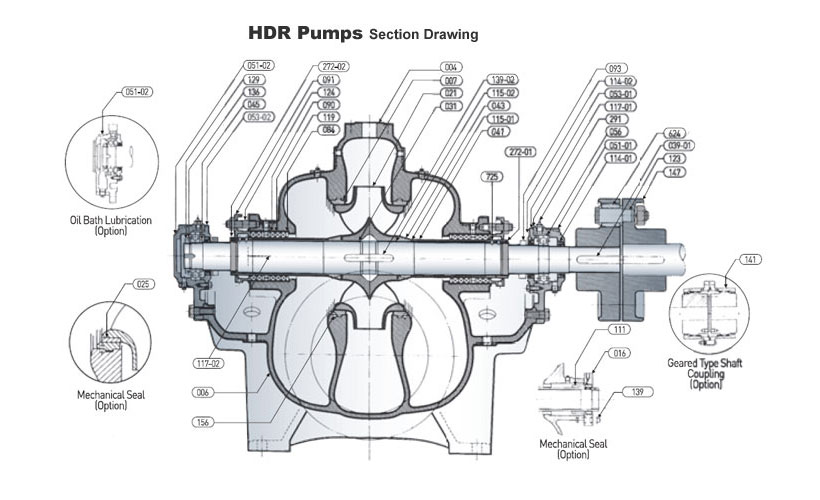

Spare Parts

Part No

Part Name

Qty

Material

004

Casing-Upper Half

1

Cast Iron or Ductile Cast Iron

006

Casing-Lower Half

1

Cast Iron or Ductile Cast Iron

021

Impeller

1

Bronze or 304 Stainless Steel

031

Shaft

1

Carbon Steel or Cr-Mo Steel

039-01

Key

1

Carbon Steel

039-02

Key

1

Carbon Steel

041

Shaft Sleeve

2

304 Stainless Steel

045

Adjust Ring

2

Roller Steel

051-01

Bearing Housing Inboard

1

Carbon Iron

051-02

Bearing Housing Outboard

1

Carbon Iron

053-01

Bearing Cover

1

Cast Iron

053-02

Bearing Cover

1

Cast Iron

056

Ball Bearing

2

-

084

Packing Plate

2

304 Stainless Steel

090

Lantern Ring

2

304 Stainless Steel

091

Grand

2

Bronze

093

Deflector

2

Rolled Steel or 304 Stainless Steel

107

Casing-Ring

2

N.B.R.

114-01

Oil Seal

1

N.B.R.

114-02

Oil Seal

2

-

115-01

O-Ring

2

N.B.R.

115-02

O-Ring

2

N.B.R.

Part No

Part Name

Qty

Material

117-01

Sheet Gasket

2

Press Board

117-02

Sheet Gasket

1

Asbestos

119

Grand Packing

10

Carbonized Fiber

123

Coupling Bolt

1 set

Roller Steel

124

Grand Bolt

4

Brass

129

Bearing Nut

1

Roller Steel

136

Bearing Washer

1

Roller Steel

147

Flexible Flanged Shaft Coupling

1 set

Cast Iron

156

Dowel Pin

2

316 Stainless Steel

272-01

Sleeve Nut

1

Bronze

272-02

Sleeve Nut

1

Bronze

291

Grease Nipple

2

Brass

624

Rubber Bush for Coupling Bolt

1 set

N.B.R.

643

Sleeve Head

2

Bronze or 304 Stainless Steel

725

Set Screw

4

316 Stainless Steel

141

Geared Type Shaft Coupling

1 set

-

025

Impeller Ring

2

Bronze or 304 Stainless Steel

016

Mechanical Seal Cover

2

Bronze or 304 Stainless Steel

111

Mechanical Seal

2 set

-

139

Mechanical Seal Cover Bolt

8

316 Stainless Steel
