HTM   Multistage Turbine Pump



    Model

Suction Diameter (mm)

 Discharge Diameter (mm)

Stage

Capacity

(L/m)

Head

(m)

HTM40/4

50

40

4

250

40

HTM40/5

50

40

5

250

51

HTM40/6

50

40

6

250

61

HTM40/7

50

40

7

250

71

HTM40/8

50

40

8

250

81

HTM50/4

65

50

4

370

52

HTM50/5

65

50

5

370

66

HTM50/6

65

50

6

370

79

HTM50/7

65

50

7

370

92

HTM65/3

80

65

3

700

53

HTM65/4

80

65

4

700

71

HTM65/5

80

65

5

700

89

HTM65/6

80

65

6

700

106

HTM80/2

100

80

2

1,070

44

HTM80/3

100

80

3

1,070

64

HTM80/4

100

80

4

1,200

81

HTM80/5

100

80

5

1,200

102

HTM80/6

100

80

6

1,200

122

HTM80/7

100

80

7

1,200

142

HTM80/8

100

80

8

1,200

163

HTM100/2

125

100

2

2,330

64

HTM100/3

125

100

3

2,330

96

HTM100/4

125

100

4

2,330

128

HTM100/5

125

100

5

2,330

160

HTM125/2

150

125

2

3,670

97

HTM125/3

150

125

3

3,670

145

HTM125/4

150

125

4

3,670

194

HTM150/2

200

150

2

5,330

128

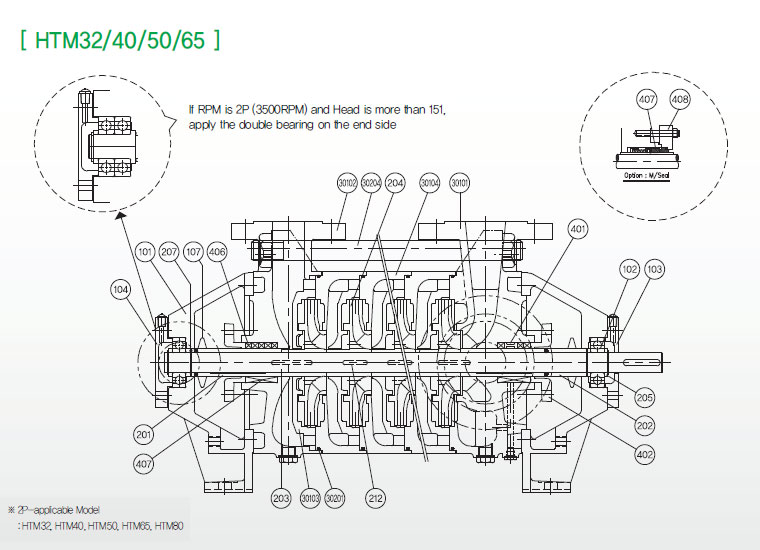

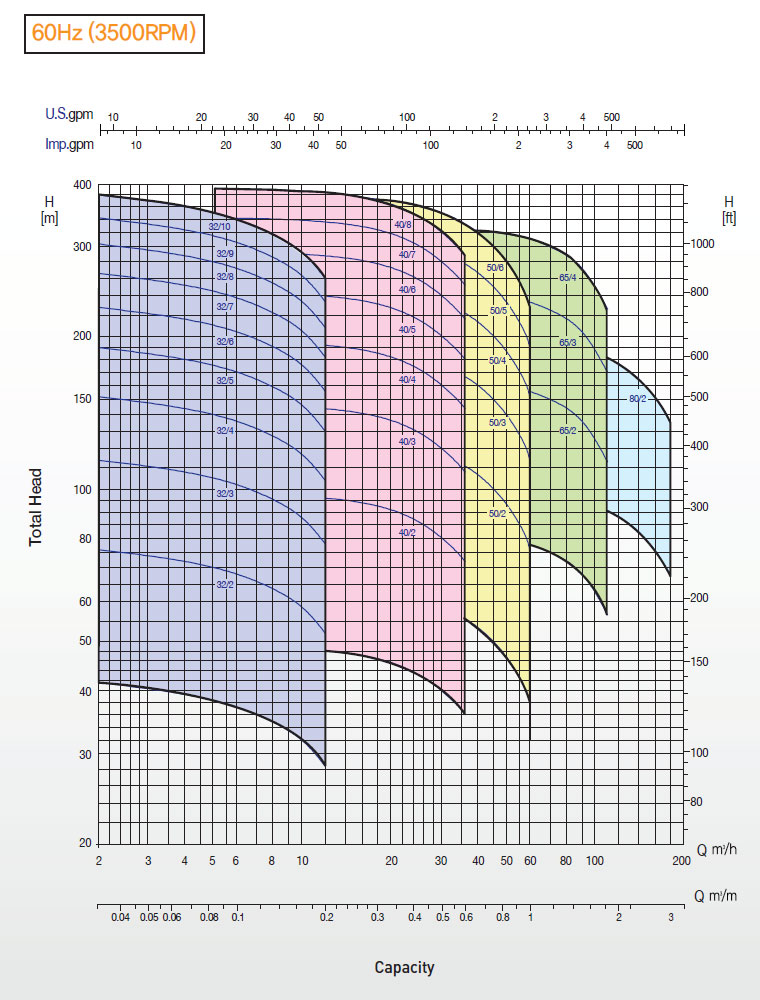

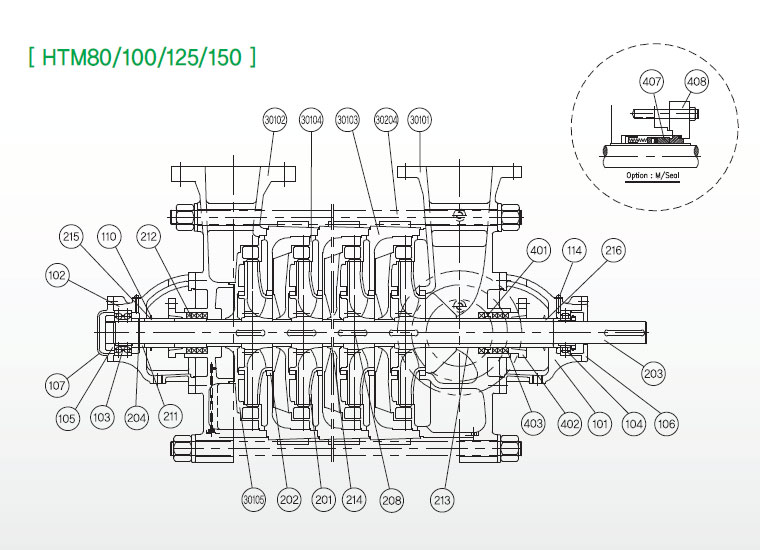

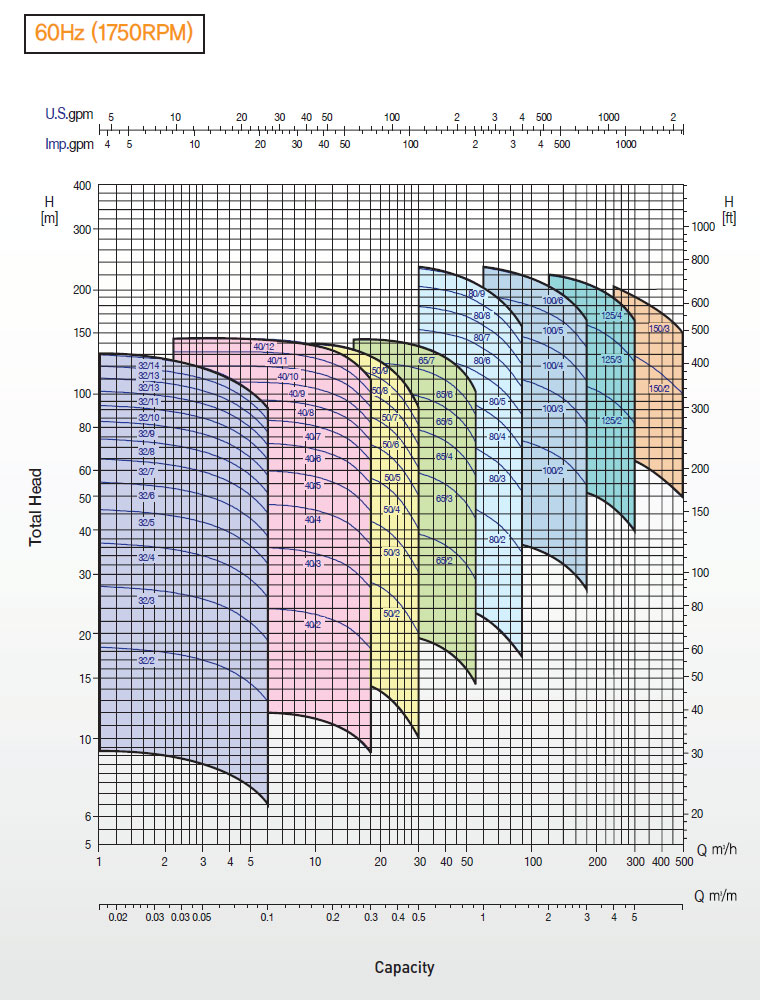

Selection Diagram

Spare Parts

Part No

Part Name

Material

Option

Part No

Part Name

Material

Option

101

Bearing Housing

GC200

-

30101

Suction Casing

GC200

SSC13

102

Ball Bearing

Steel

-

30102

Discharge Casing

GC200

SSC13

130/104

Bearing Cover

GC200

-

30103

Diffuser

GC200

SSC13

107

Thrower

Rubber

-

30104

Stage Casing

GC200

SSC13

201

Shaft Sleeve

SM45C

STS304

30201

O-Ring

Rubber

SSC13

202

Spacer Sleeve

SM45C

STS304

30204

Tie-Bolt

SM25C

SSC13

203

Shaft

SM45C

STS304

401

Lantern Ring

GC200

STS304

204

Impeller

GC200/CAC406

SSC13

402

Packing Gland

GC200

SSC13

205

Spacer Ring

SM45C

-

406

Packing

P.T.F.E

Reguirement

207

Stop Ring

SM25C

-

407

Mechanical Seal

SiC/Carbon

-

212

Key

SM55C

STS304

408

M/Seal Cover

GC200

SSC13



Part No

Part Name

Material

Option

Part No

Part Name

Material

Option

101/102

Bearing Housing GC200 -

212/213

Shaft Sleeve SM45C STS304

103

Ball Bearing Steel -

215/216

Spacer Sleeve SM45C STS304

104

Roller Bearing Steel -

30101

Suction Casing GC200 SSC13

105

Bearing Nut GC200 -

30102

Discharge Casing GC200 SSC13

106/107

Bearing Cover GC200 -

30103

Stage Casing GC200 SSC13

110

Thrower Rubber -

30104

Diffuser GC200 SSC13

114

Grease Nipple CAC406 -

30105

Diffuser-L GC200 SSC13

201

Impeller GC200 SSC13

30204

Tie-Bolt SM25C -

202

Casing Ring GC200 SSC13

401

Lantern Ring Acetal STS304

203

Shaft SM45C STS304

402

Packing Gland GC200 SSC13

204

Stop Ring SS400 -

403

Packing P.T.F.E Reguirement

208

Key SM55C STS304

407

Mechanical Seal SiC/Carbon Reguirement
