SRH / SRHD Multistage High Pressure Pump



Pump Models

SRH40

SRHD40

SRH40/6

SRH40/7

SRH40/8

SRH40/9

SRH40/10

SRH40/11

SRH40/12

SRH40/13

SRH40/14

SRH55

SRHD55

SRH55/5

SRH55/6

SRH55/7

SRH55/8

SRH55/9

SRH55/10

SRH55/11

SRH55/12

SRH55/13

SRH55/14

SRH65

SRHD65

SRH65/4

SRH65/5

SRH65/6

SRH65/7

SRH65/8

SRH65/9

SRH65/10

SRH65/11

SRH65/12

SRH65/13

SRH65/14

SRH80

SRHD80

SRH80/3

SRH80/4

SRH80/5

SRH80/6

SRH80/7

SRH80/8

SRH80/9

SRH80/10

SRH80/11

SRH80/12

SRH80/13

SRH80/14

SRH100

SRHD100

SRH100/6

SRH100/7

SRH100/8

SRH100/9

SRH100/10

SRH100/11

SRH100/12

SRH100/13

SRH100/14

SRH125(A)

SRHD125(A)

SRH125/5

SRH125/6

SRH125/7

SRH125/8

SRH125/9

SRH125/10

SRH125/11

SRH125/12

SRH125/13

SRH125/14

SRH125(B)

SRHD125(B)

5

6

7

8

9

10

11

12

13

14

SRH150(A)

SRHD150(A)

SRH150/4

SRH150/5

SRH150/6

SRH150/7

SRH150/8

SRH150/9

SRH150/10

SRH150/11

SRH150(B)

SRHD150(B)

5

6

7

8

9

10

11

SRHD200

SRHD200/7

Applications

Features

- Power Generation Boiler Feed

- Chemical Process

- High Pressure Service

- General Industries

- Compact design with centerline support

- Highly reliable and efficient

- Compact design applicable for wide range of liquids

- Interchangibility is maintained for all components of the pump

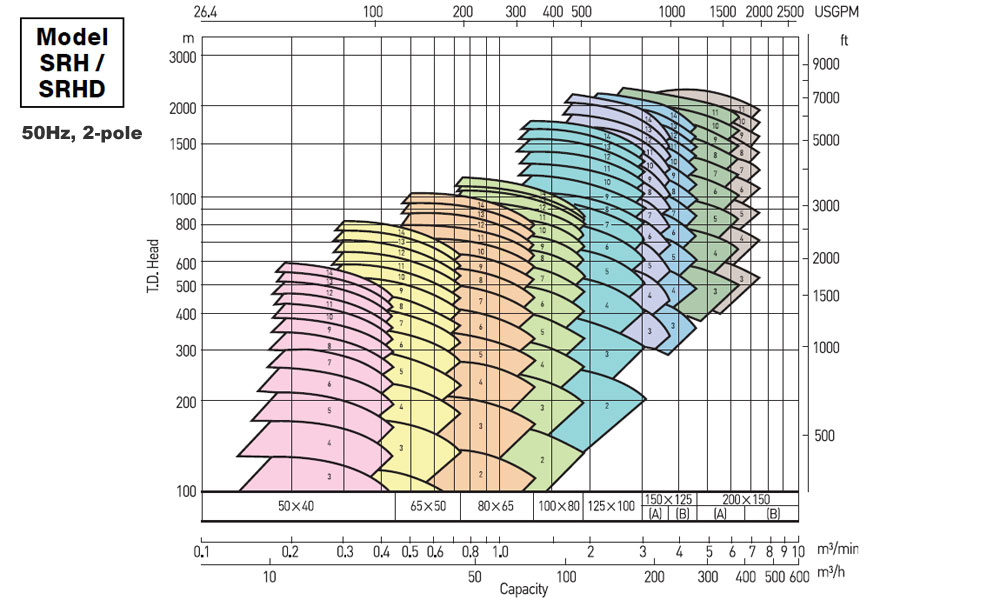

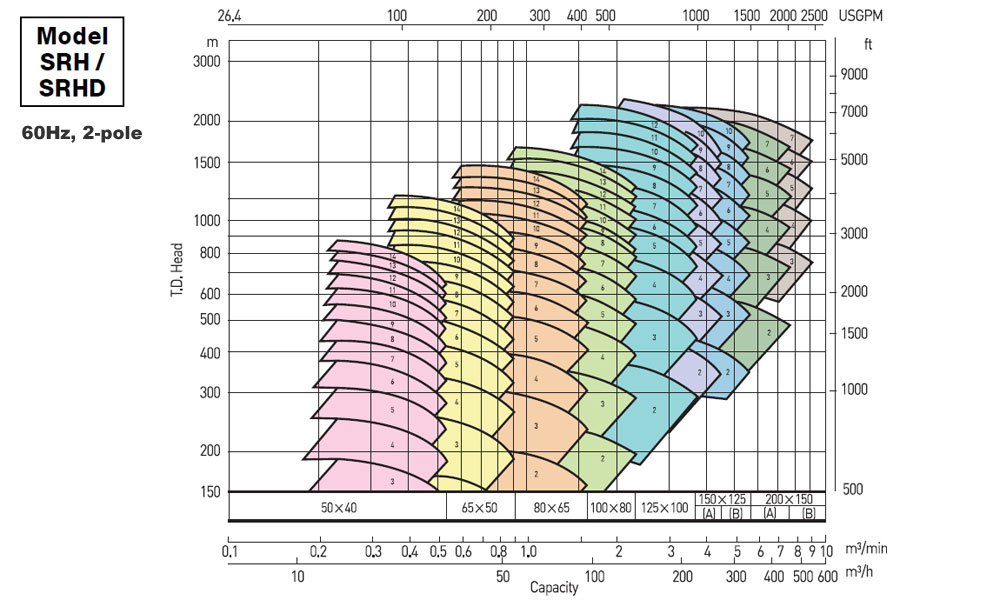

Selection Diagram

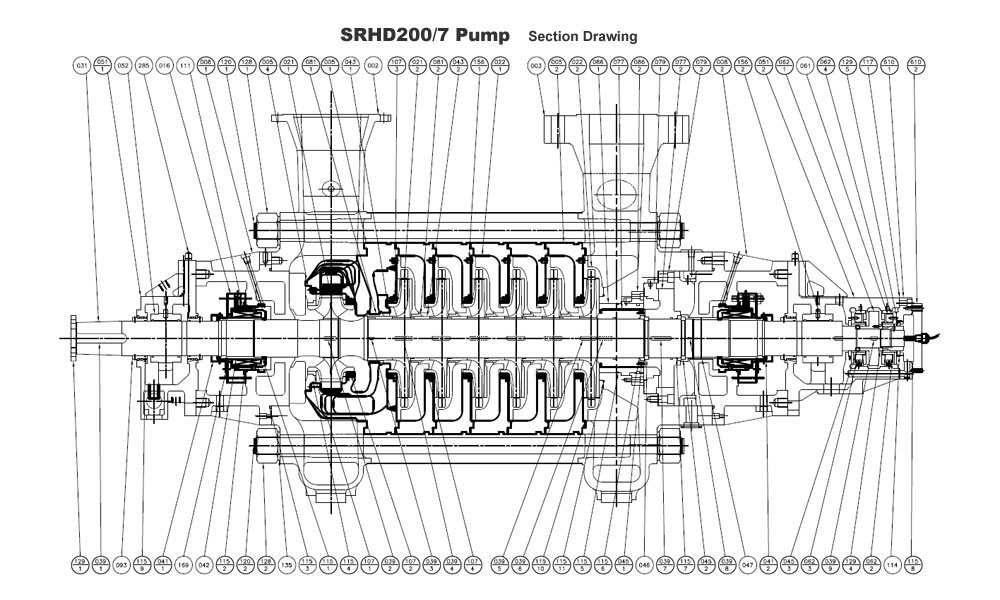

Spare Parts

No

Part Name

Material

Qty

No

Part Name

Material

Qty

No

Part Name

Material

Qty

002

Suction Casing

 -

1

045-1

Adjust Ring

SUS420J2

1

114

Oil Seal

CAC406

2

003

Discharge Casing

 -

1

045-2

Adjust Ring

SUS420J2

1

115-1

O-ring - Mechanical Seal Sleeve

Viton

2

005-1

Interstage Casing - 1st Stage

 -

1

045-3

Adjust Ring

SS400

1

115-2

O-ring - Mechanical Seal Cover

Viton

2

005-2

Interstage Casing - Series Stages

SUS420J2

5

046

Split Ring

SUS420J2

2

115-3

O-ring - Stuffing Box

Viton

2

005-4

Interstage Casing Cover

SUS420J2

1

047

Sprint Ring Retainer

SUS420J2

1

115-4

O-ring - Interstage Casing Cover

Viton

1

008-1

Stuffing Box - CP Side

SCS6

1

051-1

Bearing Housing - CP Side

SCPH2

1

115-5

O-ring - Balance Bush

Viton

1

008-2

Stuffing Box - TH Side

SCS6

1

051-2

Bearing Housing - TH Side

SCPH2

1

115-6

O-ring - Balance Piston

Viton

1

016

Mechanical Seal Cover

SUS304

2

052

Sleeve Bearing

S20C/WJ2

2

115-7

O-ring - Balance Disk

Viton

1

021-1

Impeller - 1st Stage

SCS6

1

061

Thrust Bearing Case

FC200

2

115-8

O-ring - Bearing End Cover

NBR

1

021-2

Impeller - Series Stages

SCS6

6

062-1

Thrust Disk

SCM435

1

115-9

O-ring - Deflector

NBR

3

022-1

Guide Vane - Series Stages

SCS6

5

062-2

Thrust Shoe

S20C/CAC402

12

115-10

O-ring - Last Interstage Casing

Viton

1

022-2

Guide Vane - Last Stage

SCS6

1

062-3

Leveling Plate

S20C

12

115-11

O-ring - Discharge Casing

Viton

1

031

Shaft

SUS410

1

062-4

Rocker Plate

S20C

12

117-1

Gasket

V#6500

1

039-1

Key - Coupling

S45C

1

077-1

Balance Piston

SUS420J2

1

120-1

Bolt, Right Hand

SCM435Q

6

039-2

Key - 1st Impeller

SUS420J2

1

077-2

Balance Disk

SUS420J2

1

120-2

Bolt, Left Hand

SCM435Q

6

039-3

Key - 2nd Interstage Sleeve

SUS420J2

1

079-1

Balance Seat

HCRFC

1

128-1

Nut, Right Hand

S45C

12

039-4

Key - Series Impellers

SUS420J2

5

079-2

Balance Seat Retainer

SUS420J2

1

128-2

Nut, Left Hand

S45C

12

039-5

Key - Last Impeller

SUS420J2

1

081-1

Interstage Bush - 2nd Stage

SUS420J2

1

129-1

Coupling Nut

SS400

1

039-6

Key - Balance Piston

SUS420J2

1

081-2

Interstage Bush - Series

SUS420J2

5

129-4

Locking Sleeve

S35C

1

039-7

Key - Balance Disk

SUS420J2

1

086-1

Balance Bush

SUS420J2

1

129-5

Shaft Nut

S35C

1

039-8

Key - Split Spring Retainer

S45C

1

086-2

Balance Bush Retainer

SUS420J2

1

135

Washer

SCM435Q

24

039-9

Key - Thrust Disk

S45C

1

093

Deflector

CAC406

3

156-1

Pin

SUS410

8

041-1

Sleeve Nut, Left Hand

SUS304

1

107-1

Case Wear Ring - 1st Stage, CP

SUS420J2

1

156-2

Pin

SUS410

2

041-2

Sleeve Nut, Right Hand

SUS304

1

107-2

Case Wear Ring - 1st Stage, TH

SUS420J2

1

169

Set Plate

SUS304

2

042

Shaft Sleeve

SUS304

2

107-3

Case Wear Ring - 2nd Stage

SUS420J2

1

285

Air Breather

 -

2

043-1

Interstage Sleeve - 2nd stage

SUS420J2

1

107-4

Case Wear Ring - Series Stages

SUS420J2

5

610-1

Adaptor

SS400

1

043-2

Interstage Sleeve - Series

SUS420J2

5

111

Mechanical Seal

 -

2

610-2

Bearing End Cover

SS400

1
