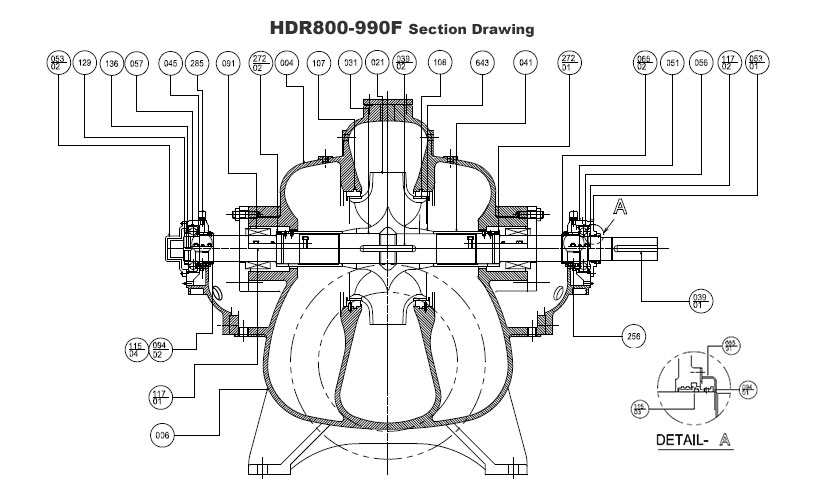

Part No |
Part Name |
Qty |
Material |
|
004 |
Casing - Upper Half |
1 |
GCD450 |
|
006 |
Casing - Lower Half |
1 |
GCD450 |
|
021 |
Impeller |
1 |
SSC1 |
|
031 |
Shaft |
1 |
SUS420J2 |
|
039-01 |
Key |
1 |
SM45C |
|
039-02 |
Key |
1 |
STS304 |
|
041 |
Shaft Sleeve |
2 |
SSC1 |
|
045 |
Bearing
Seat |
1 |
SS400 |
|
051 |
Bearing Housing |
2 |
GC200 |
|
053-01 |
Bearing Cover |
1 |
GC200 |
|
053-02 |
Bearing Cover |
1 |
GC200 |
|
056 |
Ball Bearing |
1 |
Steel |
|
057 |
Ball Bearing |
1 |
Steel |
|
065-01
|
Deflector
Cover
|
2
|
STS304
|
|
065-02
|
Deflector
Cover
|
1
|
STS304
|
|
|
Part No |
Part Name |
Qty |
Material |
|
094-01
|
Deflector
|
1
|
CAC406
|
|
094-02
|
Deflector
|
2
|
CAC406
|
|
107 |
Casing Ring |
2 |
GCD450 |
|
108
|
Impeller
Ring
|
2
|
SSC1
|
|
115-03 |
O-Ring |
1 |
NBR |
|
115-04 |
O-Ring |
2 |
N.B.R. |
|
117-01 |
Gasket |
1 |
Oil
Sheet |
|
117-02 |
Gasket |
2 |
Oil
Sheet |
|
091 |
Mechanical
Seal |
2 |
Silicon
Carbide-Carbon |
|
129 |
Bearing Nut |
1 |
SS400 |
|
136 |
Bearing Washer |
1 |
SS400 |
|
256
|
Constant
Level Oiler
|
2
|
-
|
|
272-01 |
Sleeve Nut |
1 |
STS304 |
|
272-02 |
Sleeve Nut |
1 |
STS304 |
|
285
|
Air
Breather
|
2
|
Plastic
|
|
643 |
Sleeve Head |
2 |
STS304 |
|
