V-EVM Stainless Steel Vertical Multistage Pump

V-4EVM1808  Stainless Steel Vertical Booster Pump

Model

Connections (mm)

Motor

Capacity (L/m)

Head (m)

Pressure Tank (L)

KW

No

V-4EVM1808

125

15

4

600 ~ 1840

86 ~ 180

200



Performance Curve

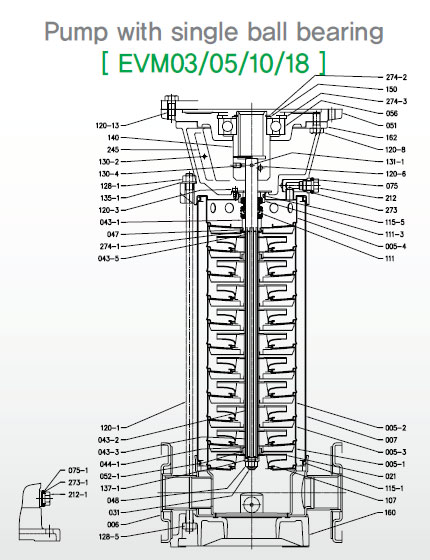

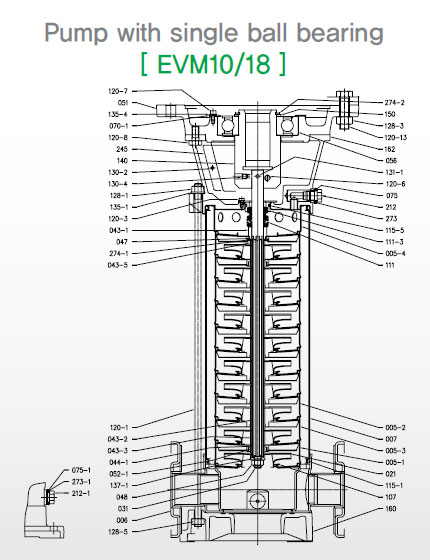

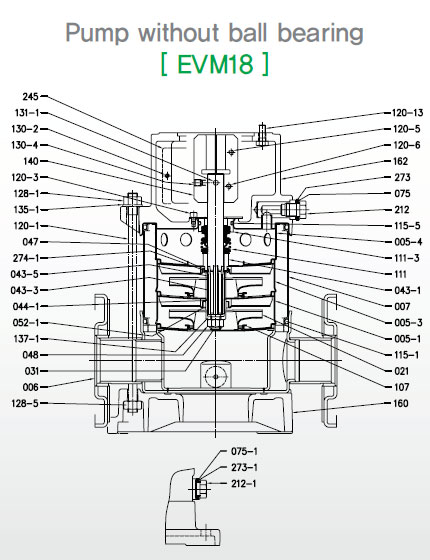

Sectional Drawing & Spare Parts for 60Hz (3600rpm)





NO.

Part Name

Material

EVM

EVML

005-1

Suction Casing

STS304

STS316

005-2

Intermediate Casing

STS304

STS316

005-3

Intermediate Casing Bearing

STS304

STS316

005-4

Discharge Casing

STS304

STS316

006

Bottom Casing

STS304/SSC13

STS316/SSC14

007

Outer Casing

STS316/STS304

STS316

011

Casing Cover

Cast Iron/STS304

Cast Iron/STS316

012

Suction Cover

STS304

STS316

021

Impeller

STS304

STS316

031

Shaft

STS316

039-1

Key

Carbon Steel

043-1

Shaft Sleeve (Mechanical seal)

STS304

STS316

043-2

Shaft Sleeve (Intermediate)

STS304

STS316

043-3

Shaft Sleeve (Bearing)

STS304

STS316

043-4

Shaft Sleeve (Adjustment)

STS304

STS316

043-5

Shaft Sleeve (Last Stage)

STS304

STS316

043-6

Shaft Sleeve (Adjustment)

STS304

STS316

043-7

Shaft Sleeve (Bottom Bearing)

STS304

STS316

043-8

Shaft Sleeve (Discharge/Lower)

STS304

STS316

044-1

Shaft Sleeve Bearing

Tungsten Carbide

044-2

Bearing Sleeve

Tungsten Carbide

045

Flange Holder

STS420

047

Ring Holder

STS304

STS316

048

Impeller Nut

A2-70 UNI 7323

A4-70 UNI 7323

051

Motor Adapter

Cast Iron EN-GJL-200 EN 1561

052-1

Bearing

Tungsten Carbide

052-2

Bearing

Tungsten Carbide

053

Bush Holder

STS304

STS316

056

Ball Bearing

-

070-1

Ring for Bearing

STS304

070-2

Ring for Bearing

STS304

STS316

081

Bush

PTFE

107

Liner Ring

EPDM/STS304(03~18), PTFE/STS316(32~45)

PTFE / STS316

111-1

Mechanical Seal

Silicon Carbide / Carbon / FPM

111-2

Mechanical Seal Cartridge

STS304

STS316

111-3

Mechanical Seal Seat

STS304

STS316

111-4

Seal Holder

Brass OT 58 UNI 5705

STS316

111-5

Adjusting Ring

STS304

STS316

115-1

O-Ring (Outer Casing)

EPDM

FPM

115-2

O-Ring (Intermediate Casing)

EPDM

FPM

115-4

O-Ring (Cartridge Sleeve)

EPDM

FPM

115-5

O-Ring (Seal Cover)

EPDM

FPM

120

Tie-rod

Zincate Steel 6.8 Strength Class 898/1

120-3

Screw (Mechanical Seal)

A2-70 UNI 7323

120-4

Screw (Casing Cover)

Zincate Steel 8.8 Strength Class 898/1

120-5

Screw for Coupling(Pump)

Zincate Steel 8.8 Strength Class 898/1

120-6

Screw for Coupling(Motor)

Zincate Steel 8.8 Strength Class 898/1

120-7

Screw (Coupling Bearing)

Zincate Steel 8.8 Strength Class 898/1

120-9

Screw (Bearing Sleeve)

STS304

STS316

120-12

Screw (Shaft Spacer)

STS304

STS316

120-13

Screw (Motor Adapter)

Zincate Steel 8.8 Strength Class 898/1

130-2

Screw for Coupling Guard

A2-70 UNI 7323

131-1

Pin for Shaft

Carbon Steel

136

Bearing Washer

Carbon Steel

137-1

Impeller Spacer

STS304

STS316

137-2

Shaft Spacer

STS304

STS316

140

Coupling

Brass OT 58 UNI 5705

140-1

Motor Coupling

Carbon Steel

140-2

Coupling (Pump Side)

Carbon Steel

150

Spacer

Carbon Steel

160

Base

Cast Iron EN-GJL-200 EN 1561

162

Motor Bracket

Cast Iron EN-GJL-200 EN 1561

212

Plug

STS304

STS316

245

Coupling Guard

STS304

274-1

C-Type Snap Ring (M/Seal)

STS304

STS316

274-2

C-Type Snap Ring (Coupling)

Carbon Steel TC80

274-3

C-Type Snap Ring (Bracket)

Carbon Steel TC80

613

Flange

-
