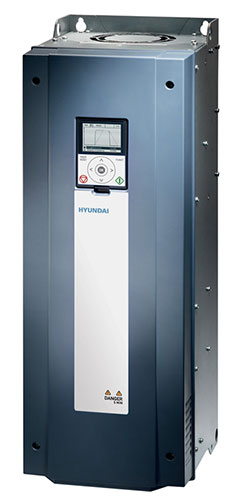

N800A
HYUNDAI AC Drive Inverter
|
|
|
|
|
|
|
|
-
Excellent high-torque
control performance |
|
-
Various user dedicated program, interface
and option
|
|
-
International standard certification, CE,
UL, cUL,
TR-CU, KCMR9
|
|
|
Models
|
Applicable Motor[kW] |
3Ph, 220 V |
3Ph, 440 V |
|
0.37 |
N800A0100-3L-0003-2 |
|
|
0.55 |
N800A0100-3L-0004-2 |
|
|
0.75 |
N800A0100-3L-0007-2 |
N800A0100-3L-0003-5 |
|
1.1 |
N800A0100-3L-0008-2 |
N800A0100-3L-0004-5 |
|
1.5 |
N800A0100-3L-0011-2 |
N800A0100-3L-0005-5 |
|
2.2 |
N800A0100-3L-0012-2 |
N800A0100-3L-0008-5 |
|
3 |
N800A0100-3L-0018-2 |
N800A0100-3L-0009-5 |
|
4 |
N800A0100-3L-0024-2 |
N800A0100-3L-0012-5 |
|
5.5 |
N800A0100-3L-0031-2 |
N800A0100-3L-0016-5 |
|
7.5 |
N800A0100-3L-0048-2 |
N800A0100-3L-0023-5 |
|
11 |
N800A0100-3L-0062-2 |
N800A0100-3L-0031-5 |
|
15 |
N800A0100-3L-0075-2 |
N800A0100-3L-0038-5 |
|
18.5 |
N800A0100-3L-0088-2 |
N800A0100-3L-0046-5 |
|
22 |
N800A0100-3L-0105-2 |
N800A0100-3L-0061-5 |
|
30 |
N800A0100-3L-0140-2 |
N800A0100-3L-0072-5 |
|
37 |
N800A0100-3L-0170-2 |
N800A0100-3L-0087-5 |
|
45 |
N800A0100-3L-0205-2 |
N800A0100-3L-0105-5 |
|
55 |
N800A0100-3L-0261-2 |
N800A0100-3L-0140-5 |
|
75 |
N800A0100-3L-0310-2 |
N800A0100-3L-0170-5 |
|
90 |
|
N800A0100-3L-0205-5 |
|
110 |
|
N800A0100-3L-0261-5 |
|
132 |
|
N800A0100-3L-0310-5 |
|
160 |
|
N800A0100-3L-0385-5 |
|
200 |
|
N800A0100-3L-0460-5 |
|
250 |
|
N800A0100-3L-0590-5 |
|
|
|
|
Features
|
|
HHI N800A AC drive is
equipped with |
|
Smart new benefits from functional safety
with Safe Torque Off to prevent the drive from generating torque on the motor
shaft, Safe Stop1, and ATEX certified motor over-temperature protection. |
|
N800A also has unique features with
built-in Ethernet to make integration to plant automation easy and efficient via
integrated Modbus TCP, Ethernet IP or Profinet I/O. |
|
|
|
One Drive, Extensive Applications |
|
-
Optimal solution to suit Various process
applications across a wide spectrum of industries.
-
User can optimize N800A With a wide range
of fieldbus options and features for motor and process control. |
|
Eco-Friendly |
|
-
DC link capacitors are made With unique
plastic foil technology instead of electrolyte. (No limitations on storage without
reforming)
- Our new N800A fulfills key
international standards and global requirements, including RoHS (lead free),
EMC & Harmonics approvals. |
|
Various Options |
|
- Several standard features such as
built-in I/O with 3 option slots, integrated RS485 and Ethernet based fieldbus support,
varnished boards
and robust motor control features for reliability.
-
IP54 / UL Type12 and flange (through
hole) mounting.
-
Frame sizes MR8 - MR10 are also available
as compact IP00 for Easy installation to cabinets or enclosures. |
|
|
|
| Applications |
|
|
Process Industry |
|
-
Conveyors
-
Pumps & Fans
-
Chippers, Debarking Drums & Sawmills |
|
Industrial HVAC /
Semiconductor Industry |
|
-
Compressors
-
Pumps & Fans |
|
Chemical, Oil & Gas |
|
-
Compressors
-
Pumps & Fans |
|
Mining & Minerals |
|
-
Conveyors
-
Pumps & Fans |
|
|
Water |
|
-
Distribution
-
Desalination
-
Treatment
-
Pumps, Compressors & Conveyors |
|
Marine |
|
-
Cargo pumps & Compressors
-
Steering gear |
|
Cement Auxiliary Drives |
|
-
Conveyors
-
Pumps & Fans |
|
|
|
