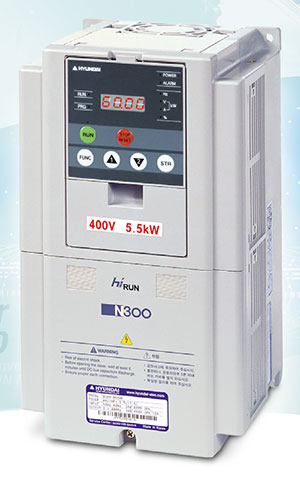

N300
HYUNDAI HiRUN
Vector Control AC Drive Inverter
|
|
|
Features
|
Powerful Operation
with Advanced Sensorless Vector Control |
|
Powerful high torque performance has been
accomplished using HHI`s advanced sensorless vector control. |
|
-
High starting torque of 200% or greater at 0.5 Hz
-
Rotational fluctuation at low speed
has been drastically reduced to enhance process
stability and
precision.
-
High torque of 150% at approximately 0
Hz
-
High torque multi-motor operation
-
On-line/off-line auto-tuning |
|
Versatile Functions Encompass More
Applications |
|
-
Input / output function
-
Third motor constants setting
-
Deceleration and stop at power failure
-
Fan ON/OFF selection
-
UP/DOWN function
-
PID operation
-
Frequency scaling conversion
-
3-Wire function
-
P∙PI control selection |
|
Easy Maintenance |
|
-
Easy-removable cooling fan and DC bus
capacitor
-
Removable control circuit terminals |
|
Environmental Friendliness |
|
-
EMI filter
-
Reduced noise from control power supply |
|
Easy Operation |
|
-
Digital operator
-
Built-in RS485
-
User selection of command functions
(“Quick Menu”)
-
Programming software |
|
Global Performance
Network compatibility |
|
-
N300 can communicate with DeviceNet,
PROFIBUS and LONWORKS as options. |
|
|
|
|
Specifications:
200V class
|
|
Model |
N300-055LF |
N300-075LF |
N300-110LF |
N300-150LF |
N300-185LF |
N300-220LF |
N300-300LF |
N300-370LF |
N300-450LF |
N300-550LF |
|
Applicable motor (4 pole, kW) |
5.5 |
7.5 |
11 |
15 |
18.5 |
22 |
30 |
37 |
45 |
55 |
|
Rated capacity(kVA) |
200 V |
8.3 |
11 |
15.9 |
22.1 |
26.3 |
32.9 |
41.9 |
50.2 |
63 |
76.2 |
|
240 V |
9.9 |
13.3 |
19.1 |
26.6 |
31.5 |
39.4 |
50.2 |
60.2 |
75.6 |
91.4 |
|
Rated output current(A) |
3-phase, 200~240 V(±10%) 50 Hz / 60 Hz |
|
Rated input voltage(V) |
3-phase, 200~240 V(According to supply voltage) |
|
Rated output current(A) |
24 |
32 |
46 |
64 |
76 |
95 |
121 |
145 |
182 |
220 |
|
Control method |
Line to line sine wave PWM |
|
Output frequency range |
0.1 ~ 400 Hz |
|
Frequency accuracy |
Digital: ±0.01% of maximum frequency, Analog: ±0.2%(25±10℃) |
|
Frequency resolution |
Digital setting: 0.01 Hz, Analog setting(Maximum frequency)/
4,000(O terminal: 12bit 0~10 V, O2 terminal: 12bit -10~+10 V) |
|
V/f characteristics |
V/f free-setting(30~400 Hz of base frequency), Constant torque
and reduced torque of V/f control, sensorless vector control |
|
Speed fluctuation |
±0.5%(sensorless vector control) |
|
Overload capacity |
150%/60sec, 200%/0.5sec |
|
Acceleration/deceleration time |
0.01-3,600sec(Linear/curve, accel/decel, selection), Two-stage
accel/decel |
|
Starting torque |
200% at 0.5 Hz(Sensorless vector control), 150% at around 0
Hz(Sensorless vector control, with a motor one-size frame down) |
|
Braking |
Dynamic braking(Short-time) |
Built-in BRD circuit External dynamic braking unit(option) |
|
DC braking |
Performs at start; under set frequency at deceleration, via an
external input(braking force, time, and operating frequency) |
|
Input signals |
Frequency
setting |
Operator |
Set by △ key/▽key |
|
External signal |
DC 0~10 V, -10~+10 V(Input impedance 10 kΪ), 4~20mA(Input
impedance 100Ϊ) |
|
External port |
Set by RS 485 |
|
Forward
/ Reverse / Start / stop |
Operator |
Run key/Stop key(Change FW/RV by function command) |
|
External signal |
FW RUN/STOP(NO contact), RV set by terminal assignment(NO/NC
selection), 3-wire input possible |
|
External port |
Set by RS 485 |
|
Thermistor input |
One terminal(PTC characteristics) |
|
Output signals /
Intelligent monitor output terminals |
Analog voltage, Analog current, Pulse line output |
|
Display monitor |
Output frequency, Output current, Motor torque, Scaled value
of output frequency, Trip history, I/O terminal condition, Input power,
Output voltage |
|
Carrier frequency range |
0.5~15 kHz |
|
Operator |
OPE-N3(4-digit LED)/Option: NOP3(Remote operator) |
|
|
|
|
Specifications:
400V class
|
|
Model |
N300-055HF |
N300-075HF |
N300-110HF |
N300-150HF |
N300-185HF |
N300-220HF |
N300-300HF |
N300-370HF |
N300-450HF |
N300-550HF |
N300-750HF |
N300-900HF |
N300-1100HF |
N300-1320HF |
|
Applicable motor (4 pole, kW) |
5.5 |
7.5 |
11 |
15 |
18.5 |
22 |
30 |
37 |
45 |
55 |
75 |
90 |
110 |
132 |
|
Rated capacity(kVA) |
200 V |
8.3 |
11 |
15.9 |
22.1 |
26.3 |
33.2 |
40.1 |
51.9 |
62.3 |
76.2 |
103.2 |
121.9 |
150.3 |
180.1 |
|
240 V |
9.9 |
13.3 |
19.1 |
26.6 |
31.5 |
39.9 |
48.2 |
62.3 |
74.8 |
91.4 |
123.8 |
146.3 |
180.4 |
216.1 |
|
Rated output current(A) |
3-phase,
380~480 V(±10%) 50 Hz / 60 Hz
|
|
Rated input voltage(V) |
3-phase,
380~480 V(According to supply voltage)
|
|
Rated output current(A) |
12 |
16 |
23 |
32 |
38 |
48 |
58 |
75 |
90 |
110 |
149 |
176 |
217 |
260 |
|
Control method |
Line to line sine wave PWM |
|
Output frequency range |
0.1 ~ 400 Hz |
|
Frequency accuracy |
Digital: ±0.01% of maximum frequency, Analog: ±0.2%(25±10℃) |
|
Frequency resolution |
Digital setting: 0.01 Hz, Analog setting(Maximum frequency)/
4,000(O terminal: 12bit 0~10 V, O2 terminal: 12bit -10~+10 V) |
|
V/f characteristics |
V/f free-setting(30~400 Hz of base frequency), Constant torque
and reduced torque of V/f control, sensorless vector control |
|
Speed fluctuation |
±0.5%(sensorless vector control) |
|
Overload capacity |
150%/60sec, 200%/0.5sec |
150%/60sec,
180%/0.5sec
|
|
Acceleration/deceleration time |
0.01-3,600sec(Linear/curve, accel/decel, selection), Two-stage
accel/decel |
|
Starting torque |
200% at 0.5 Hz(Sensorless vector control), 150% at around 0
Hz(Sensorless vector control, with a motor one-size frame down) |
|
Braking |
Dynamic braking(Short-time) |
Built-in BRD circuit External dynamic braking unit(option) |
|
DC braking |
Performs at start; under set frequency at deceleration, via an
external input(braking force, time, and operating frequency) |
|
Input signals |
Frequency
setting |
Operator |
Set by △ key/▽key |
|
External signal |
DC 0~10 V, -10~+10 V(Input impedance 10 kΪ), 4~20mA(Input
impedance 100Ϊ) |
|
External port |
Set by RS 485 |
|
Forward
/ Reverse / Start / stop |
Operator |
Run key/Stop key(Change FW/RV by function command) |
|
External signal |
FW RUN/STOP(NO contact), RV set by terminal assignment(NO/NC
selection), 3-wire input possible |
|
External port |
Set by RS 485 |
|
Thermistor input |
One terminal(PTC characteristics) |
|
Output signals /
Intelligent monitor output terminals |
Analog voltage, Analog current, Pulse line output |
|
Display monitor |
Output frequency, Output current, Motor torque, Scaled value
of output frequency, Trip history, I/O terminal condition, Input power,
Output voltage |
|
Carrier frequency range |
0.5~15 kHz |
|
Operator |
OPE-N3(4-digit LED)/Option: NOP3(Remote operator) |
|
|
