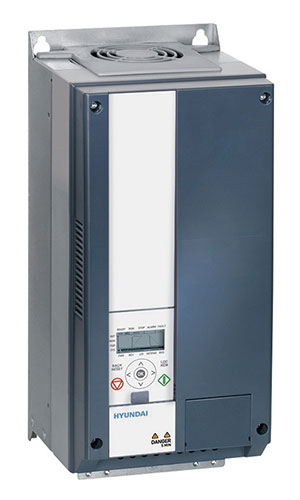

N800S
HYUNDAI AC Drive Inverter
|
|
|
|
|
|
|
|
-
Excellent high-torque
control performance |
|
-
Various user dedicated program, interface
and option
|
|
-
International standard certification, CE,
UL, cUL,
TR-CU, KCMR9
|
|
|
Models
|
Applicable Motor[kW] |
1Ph, 220 V |
3Ph, 220 V |
3Ph, 440 V |
|
0.37 |
N800S0020-1L-0002-2 |
N800S0020-3L-0002-2 |
N800S0020-3L-0001-4 |
|
0.55 |
N800S0020-1L-0003-2 |
N800S0020-3L-0003-2 |
N800S0020-3L-0002-4 |
|
0.75 |
N800S0020-1L-0004-2 |
N800S0020-3L-0004-2 |
N800S0020-3L-0003-4 |
|
1.1 |
N800S0020-1L-0005-2 |
N800S0020-3L-0005-2 |
N800S0020-3L-0004-4 |
|
1.5 |
N800S0020-1L-0007-2 |
N800S0020-3L-0007-2 |
N800S0020-3L-0005-4 |
|
2.2 |
N800S0020-1L-0009-2 |
N800S0020-3L-0011-2 |
N800S0020-3L-0006-4 |
|
3 |
|
N800S0020-3L-0012-2 |
N800S0020-3L-0008-4 |
|
4 |
|
N800S0020-3L-0017-2 |
N800S0020-3L-0009-4 |
|
5.5 |
|
N800S0020-3L-0025-2 |
N800S0020-3L-0012-4 |
|
7.5 |
|
N800S0020-3L-0031-2 |
N800S0020-3L-0016-4 |
|
11 |
|
N800S0020-3L-0038-2 |
N800S0020-3L-0023-4 |
|
15 |
|
N800S0100-3L-0075-2 |
N800S0020-3L-0031-4 |
|
18.5 |
|
N800S0100-3L-0088-2 |
N800S0020-3L-0038-4 |
|
22 |
|
N800S0100-3L-0105-2 |
N800S0100-3L-0061-5 |
|
30 |
|
|
N800S0100-3L-0072-5 |
|
37 |
|
|
N800S0100-3L-0087-5 |
|
45 |
|
|
N800S0100-3L-0105-5 |
|
55 |
|
|
N800S0100-3L-0140-5 |
|
75 |
|
|
N800S0100-3L-0170-5 |
|
90 |
|
|
N800S0100-3L-0205-5 |
|
110 |
|
|
N800S0100-3L-0261-5 |
|
132 |
|
|
N800S0100-3L-0310-5 |
|
|
|
| Features
|
|
HHI N800S AC drive
comes packed with functionality and possibilities to bring any machine
control to a completely new level. The compact size in combination with a
wide power range is the base, but N800S’s possibilities do not end there. |
|
|
|
Wide Power Range |
|
-
N800S is available in all common
voltages in the range of 208 - 480 V / 380 - 480 V with a wide power range up
to 132 kW. |
|
Cutting-Edge Performance |
|
-
Built-in RS485 interface offers a cost
effective and simple serial control interface for the drive.
(200 V Class MR7, 400 V Class MR6 - 9
have Ethernet as a standard)
-
With optional modules, N800S can be
connected to almost any fieldbus system including CANopen, Devicenet and
Profibus-DP. |
|
Fast Installation and Set-up |
|
-
Easy access terminals, Built-in DIN rail
mounting and the MCA parameter copying tool without main power in the drive
which can settings
are all examples
of
features that help reduce start-up time.
|
|
|
