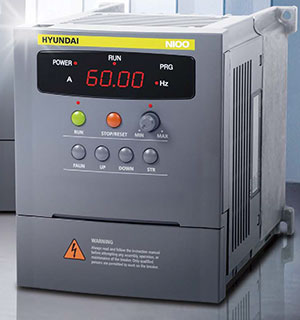

N100   HYUNDAI   HiRUN Powerful Operation & Compact Size AC Drive Inverter





Features

Advance sensorless vector control function

- Realize smooth driving without motor vibration and high precise driving no effect of changing load.

- Show high torque of 200% or greater at speeds as low as 0.5Hz during starting and operation.

Strengthening auto-tuning function

- Automatically measure motor parameters.

- Realize optimal motor control without torque dropping and speed fluctuation.

- Realize precise driving without inconvenience of user measures motor parameters manually.

Strengthening the PID control function

- Strengthening the speed control program for controlling flux, temperature, pressure and so forth.

- Apply to high precision systems by high speed responsibility.

Realize tripless driving by adding current suppression

- Realize stable driving at instant impact load and overload by adding over-current level adjusting function.

- Maintain constant speed on changing load suddenly by rapidity speed restoration characteristics.

- Widely apply transfer machine, treadmill, industrial washing machine and so forth by momentary current suppressing.

MMI function using RS485 communication (HIMS 2000)

- Built-in RS485 communication standard using Modbus protocol possible flexible application for various FA system, on remote driving

   at upper system and easy monitoring the status of driving.

- Realize remote motor control drive using exclusive MMI program.

SINK/SOURCE type signal selectable

- Many types of programmable controllers are easily connected.

Global products

- Observe EN standard by attaching EMC filter (option)

- Obtain CE Standard, UL, cUL (0.4~3.7kW)

Compact size for simplicity to install

- Reduction in cubic volume 52% compare to the J100 series.

Develop option product for user’s convenience

- Digital Operator (operation and display)

- Remote Operator (read and copy function)

- EMI/EMC filter by EN standard



Specifications

Class

200 V

400 V

Model

N100-004SF

N100-007SF

N100-015SF

N100-004LF

N100-007LF

N100-015LF

N100-022LF

N100-037LF

N100-004HF

N100-007HF

N100-015HF

N100-022HF

N100-037HF

Output

Applicable motor capacity (kW)

0.4

0.75

1.5

0.4

0.75

1.5

2.2

3.7

0.4

0.75

1.5

2.2

3.7

Rated output capacity (kVA)

1.2

2.1

2.9

1.2

2.1

2.9

4.6

7.1

1.5

2.8

4

6

7.6

Rated output current (A)

3.0

5.0

7.0

3.0

5.0

7.0

11.0

17.0

1.8

3.4

4.8

7.2

9.2

Rated output voltage (V)

3-phase, 200~240 V

3-phase, 380~480 V

Maximum output frequency (Hz)

400 Hz

Power supply

Phase, Voltage, Frequency

Single-phase, 220~230 VAC, 50/60 Hz

Three-phase, 200~240 VAC, 50/60 Hz

Three-phase, 380~480 VAC, 50/60 Hz

Power Conditions

Voltage: ±10% / frequency: ±5%

Control characteristic

Control system

Space vector PWM control

Torque control

V/F control, sensorless vector control

Output frequency range

0.01~400 Hz

Frequency setting resolution

Analog

Max. setting frequency÷500 (DC 5 V input) Max. setting frequency÷1000 (DC10 V, 4~20 mA input)

Digital

0.01 Hz (100 Hz and less ), 0.1 Hz (100 Hz or more )

Frequency precision

Analog

Within 0.1% of maximum output frequency

Digital

Within 0.01% of maximum output frequency

Voltage/frequency characteristic

Any base frequency setting possible between 0 Hz and 400 Hz, constant torque or variable torque pattern selectable

Overload rating

150% of rated current for 60 sec

Starting torque

More than 200% (at 0.5 Hz)

Torque boost

Manual torque boost can be set between 0~50%

Acceleration/deceleration time setting

0.1~3000 sec setting possible

Acceleration/deceleration pattern

linear, S-curve, U-curve selection possible

Braking torque

Dynamic

150% (5 sec)

DC braking

Operating frequency (0~10 Hz), operating time (1~10 sec), operating braking force (0~50%) variable External DC braking setting possible

Current stall prevention operation level

Operation current level setting possible (20~200% variable), enable/disable selection

Voltage stall prevention operation level

Operation level constant, enable/disable selection
