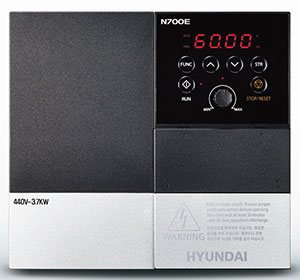

N700E
HYUNDAI HiRUN
General Purpose AC Drive Inverter
|
|
|
|
|
|
-
Excellent
Applicability to Various Loads
-
Easy Maintenance & Simple Repair
-
High Reliability & Durability
-
Compliance with RoHS
-
Lower Audible Noise |
|
|
|
Applicable Motor
Capacity |
Model
|
|
1-Phase, 220V |
3-Phase, 220V |
3-Phase, 440V |
|
0.4kW
/ 1/2HP |
N700E-004SF |
N700E-004LF |
N700E-004HF |
|
0.75kW
/ 1HP |
N700E-007SF |
N700E-007LF |
N700E-007HF |
|
1.5kW
/ 2HP |
N700E-015SF |
N700E-015LF |
N700E-015HF |
|
2.2kW
/ 3HP |
N700E-022SF |
N700E-022LF |
N700E-022HF |
|
3.7kW
/ 5HP |
|
N700E-037LF |
N700E-037HF |
|
5.5kW
/ 7.5HP |
|
N700E-055LF |
N700E-055HF |
|
7.5kW
/ 10HP |
|
N700E-075LF |
N700E-075HF |
|
11kW
/ 15HP |
|
N700E-110LF |
N700E-110HF |
|
15kW
/ 20HP |
|
N700E-150LF |
N700E-150HF |
|
18.5kW
/ 25HP |
|
N700E-185LF |
N700E-185HF |
|
22kW
/ 30HP |
|
N700E-220LF |
N700E-220HF |
|
30kW
/ 40HP |
|
|
N700E-300HF |
|
37kW
/ 50HP |
|
|
N700E-370HF |
|
45kW
/ 60HP |
|
|
N700E-450HF |
|
55kW
/ 75HP |
|
|
N700E-550HF |
|
75kW
/ 100HP |
|
|
N700E-750HF |
|
90kW
/ 120HP |
|
|
N700E-900HF |
|
110kW
/ 150HP |
|
|
N700E-1100HF |
|
132kW
/ 175HP |
|
|
N700E-1320HF |
|
160kW
/ 215HP |
|
|
N700E-1600HF |
|
220kW
/ 270HP |
|
|
N700E-2200HF |
|
280kW
/ 375HP |
|
|
N700E-2800HF |
|
350kW
/ 470HP |
|
|
N700E-3500HF |
|
|
|
|
Features
/ Improved Control
Performance
|
|
High Torque Performance in Ultra Low
Speed Zone by Using Sensorless Vector Control |
|
- Hyundai’s advanced sensorless vector
control technology provides a motor with high torque performance in ultra low
speed zone
(Sensorless vector control: above
150% at 1Hz).
- In case of fast
acceleration/deceleration of motor, N700E series provides powerful torque
controllability without trip.
- Sensorless vector control technology
expands the range of controlling speed. |
|
Superb Speed Control Performance by
Improved Tuning Technology for Motors |
|
- Through technology of compensating the
motor time constant while motor tuning minimizes the speed change,
stable motor opeation can be achieved.
|
|
Intensified Protective Functions for
Safety while Running |
|
- Ground fault protection can prevent
accidents.
- Countermeasure for output's phase loss
protects motor while running. |
|
Built-in Regenerative Braking System |
|
- BRD is basically equipped with the
inverter so that the easy operation for acceleration/deceleration time is
achieved
without additional options.
- Driving performance of acceleration and
deceleration maximizes efficiency. |
|
Enhanced Flexibility for Various Loads |
|
- Provided various control function
(3-Wire, Local/Remote control etc.)
- Built in PID function uniformly
controls oil pressure and flow quantity without additional options.
- Improved torque characteristic, which
is reduced to the 1.7th power, perfectly fits with loads for fans and pumps.
- Optimized energy saving according to
the characteristics of loads is achieved. |
|
Various Inverter Display Functions |
|
- The operational status of the inverter
are displayed on the monitor so that an user can understand the condition of
the inverter.
- Cumulative hours of driving time and
the actual running time are displayed for easy maintenance. |
|
Convenient Maintenance and Repair |
|
- N700E is available to replace the fan
without separation.
- Fan on/off function increases fan's
durability and minimizes fan's noise. |
|
|
|
|
Various Applications
& Load
Compatibility |
|
Fan & Pump |
|
Air Conditioning & Dust Collecting
Fan |
|
- Energy saving by selecting torque
characteristic
of a load
- Restart function in case of momentary
power interruption
- Factory automation by PLC
- Machine protection by soft start/stop
- Auto operation by precise PID control
function
(sleep & wake up function)
- Low noise operation
- Quick responsiveness to load change
by
frequency jump and multi speed operation
|
|
Cooling Tower |
|
- Stable operation by supplying
high
qualified energy
- Energy saving by speed and torque
control |
|
|
Conveyor & Transport Machine |
|
Conveyor |
|
- Multi relay output terminal
- Accurate acceleration &
deceleration
- Overweight prevention
by using
over-torque signal
- Prevention of load slippage
by curve
acceleration and deceleration
|
|
Factory Automation |
|
- Factory automation with PLC
- High speed torque response
to prevent
slip down
- Soft start and stop |
|
|
Textile Machine
/ Spinning Machine |
|
- Soft start/stop for prevention of snap
and cut off
- Unit design for tough circumstances
(dust, cotton)
- Improvement of product quality
by
stable operating speed
|
|
|
|
Washing Machine |
|
- Powerful torque boost function
- Over torque limit function
- Separate setting of acceleration
and
deceleration time
- Built-in regenerative braking unit
(below 22kW)
- Soft start/stop |
|
|
|
|
|
Specifications:
200V class
|
|
Inverter Model (N700E-_____ ) |
004SF |
007SF |
015SF |
022SF |
004LF |
007LF |
015LF |
022LF |
037LF |
055LF/
075LFP |
075LF/
110LFP |
110LF/
150LFP |
150LF/
185LFP |
185LF/
220LFP |
220LF |
|
Max. Available
motor
(4P, kW)
|
Heavy Duty |
0.4 |
0.75 |
1.5 |
2.2 |
0.4 |
0.75 |
1.5 |
2.2 |
3.7 |
5.5 |
7.5 |
11 |
15 |
18.5 |
22 |
|
Normal Duty |
- |
- |
- |
- |
- |
- |
- |
- |
- |
7.5 |
11 |
15 |
18.5 |
22 |
- |
|
Rated Capacity
(kVA) |
Heavy Duty |
1.2 |
2.1 |
2.9 |
4.6 |
1.2 |
2.1 |
2.9 |
4.6 |
7.1 |
10 |
13.3 |
18.7 |
26.6 |
31.6 |
37.4 |
|
Normal Duty |
- |
- |
- |
- |
- |
- |
- |
- |
- |
12.5 |
18.2 |
24.1 |
30.3 |
35.3 |
- |
|
Rated Input
AC Voltage |
1-Phase, 200~240V
±10%, 50/60Hz ±5% |
3-Phase, 200~240V
±10%, 50/60Hz ±5% |
|
Rated Output
Voltage |
3-Phase, 200~240V (Depend on
receiving voltage) |
3-Phase, 200~240V (Depend on
receiving voltage) |
|
Rated Output
Current
(A)
|
Heavy Duty |
3 |
5 |
7 |
11 |
3 |
5 |
7 |
11 |
17 |
24 |
32 |
45 |
64 |
76 |
90 |
|
Normal Duty |
- |
- |
- |
- |
- |
- |
- |
- |
- |
30 |
44 |
50 |
73 |
85 |
- |
|
Brake |
Recover Brake |
Built in Brake Circuit (Need to
Additional Brake Resistor) |
Built in Brake Circuit (Need to
additional brake resistor) |
|
Resistance (Ω) |
50 |
50 |
50 |
50 |
50 |
50 |
50 |
50 |
35 |
17 |
17 |
17 |
8.7 |
6 |
6 |
|
Weight (kg) |
0.7 |
0.7 |
0.7 |
0.98 |
0.7 |
0.7 |
0.7 |
0.98 |
1.2 |
4.2 |
4.5 |
4.5 |
6.5 |
7.5 |
8 |
|
|
|
|
Specifications:
400V class
|
|
Inverter Model (N700E-_____ ) |
004HF |
007HF |
015HF |
022HF |
037HF |
055HF/
075HFP |
075HF/
110HFP |
110HF/
150HFP |
150HF/
185HFP |
185HF/
220HFP |
220HF/
300HFP |
|
Max. Available
motor (4P, kW) |
Heavy Duty |
0.4 |
0.75 |
1.5 |
2.2 |
3.7 |
5.5 |
7.5 |
11 |
15 |
18.5 |
22 |
|
Normal Duty |
- |
- |
- |
- |
- |
7.5 |
11 |
15 |
18.5 |
22 |
30 |
|
Rated Capacity
(kVA) |
Heavy Duty |
1.5 |
2.8 |
4 |
6 |
7.6 |
10 |
13.3 |
19.1 |
26.6 |
31.6 |
37.4 |
|
Normal Duty |
- |
- |
- |
- |
- |
12.5 |
18.2 |
24.1 |
30.7 |
35.7 |
47.3 |
|
Rated Input
AC Voltage |
3-Phase, 380~480V
±10%, 50/60Hz ±5% |
|
Rated Output
Voltage |
3-Phase, 380~480V (Depend on
receiving voltage) |
|
Rated Output
Current (A) |
Heavy Duty |
1.8 |
3.4 |
4.8 |
7.2 |
9.2 |
12 |
16 |
23 |
32 |
38 |
45 |
|
Normal Duty |
- |
- |
- |
- |
- |
15 |
22 |
29 |
37 |
43 |
57 |
|
Brake |
Recover Brake |
Built in Brake Circuit (Need to
additional brake resistor) |
|
Resistance (Ω) |
180 |
180 |
180 |
100 |
100 |
70 |
50 |
50 |
30 |
20 |
20 |
|
Weight (kg) |
0.98 |
0.98 |
0.98 |
0.98 |
1.2 |
4.2 |
4.5 |
4.5 |
7 |
7 |
7.5 |
|
|
|
|
Inverter Model (N700E-_____ ) |
300HF/
370HFP |
370HF/
450HFP |
450HF/
550HFP |
550HF/
750HFP |
750HF/
900HFP |
900HF/
1100HFP |
1100HF/
1320HFP |
1320HF/
1600HFP |
1600HF/
2000HFP |
2200HF/
2500HFP |
2800HF/
3200HFP |
3500HF/
3800HFP |
|
Max. Available
motor (4P, kW) |
Heavy Duty |
30 |
37 |
45 |
55 |
75 |
90 |
110 |
132 |
160 |
220 |
280 |
350 |
|
Normal Duty |
37 |
45 |
55 |
75 |
90 |
110 |
132 |
160 |
200 |
250 |
320 |
375 |
|
Rated Capacity
(kVA) |
Heavy Duty |
48.2 |
62.4 |
74.8 |
91.5 |
123.9 |
146.3 |
180.4 |
216.2 |
230 |
315 |
400 |
500 |
|
Normal Duty |
58.1 |
70.1 |
87.2 |
112 |
133 |
162 |
191 |
245 |
285 |
360 |
470 |
550 |
|
Rated Input
AC Voltage |
3-Phase, 380~480V
±10%, 50/60Hz ±5% |
|
Rated Output
Voltage |
3-Phase, 380~480V (Depend on
receiving voltage) |
|
Rated Output
Current (A) |
Heavy Duty |
58 |
75 |
90 |
110 |
149 |
176 |
217 |
260 |
300 |
415 |
525 |
656 |
|
Normal Duty |
70 |
85 |
105 |
135 |
160 |
195 |
230 |
285 |
370 |
450 |
600 |
680 |
|
Brake |
Recover Brake |
Need to Setup Recover Brake Unit |
|
Resistance (Ω) |
Refer to Option Table |
|
Weight (kg) |
22 |
22 |
27 |
30 |
50 |
50 |
60 |
60 |
110 |
110 |
170 |
170 |
|
