HYUNDAI

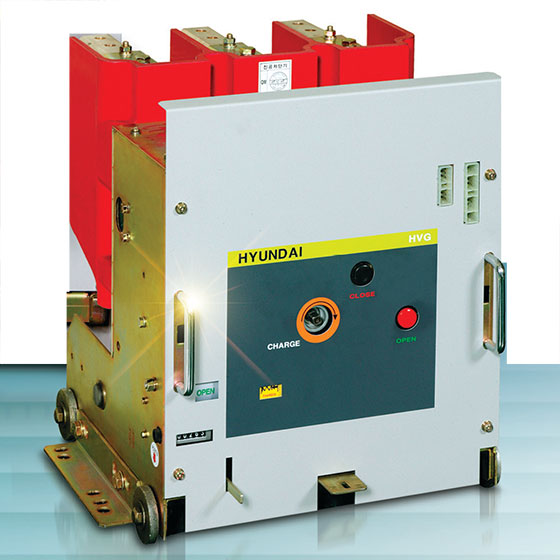

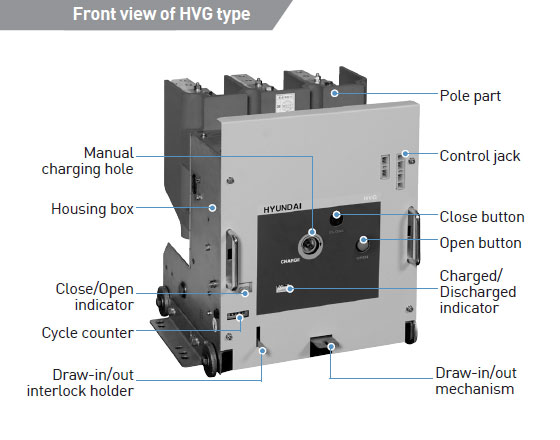

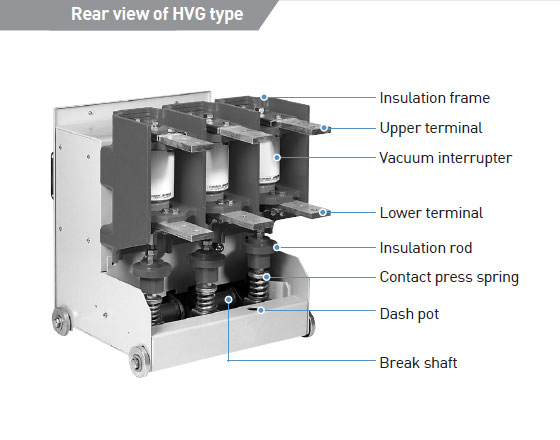

HVG Vacuum Circuit Breaker
(VCB)
Ensuring excellent
switching capability and high quality with various advantages
|
- Retaining the high dielectric strength
with the interrupter of the high vacuum degree of 10-7mbar.
- Providing reliable mechanical
performance and long-life expectancy with rigid structure of motor-spring
energy stored mechanism.
- Having excellent breaking capability
with the special contact material designed by the advanced vacuum technology.
- Having rapid breaking time of 3 cycle.
- Certified by New IEC publication
62271-100 and other related standards by HYUNDAI in ISO9001/14001 and
OHSAS18001 certified facilities.
|
|
|
Compact structure to
minimize the switchgear dimension
|
- Wide 600mm switchgear available with
small size & light weight
- Mechanical endurance of 20,000
operations
- 7.2kV, 8-25kA, 400-1,250A
|
|
Ratings
|
Model |
HVG1099 |
HVG1011 |
HVG1131 |
HVG1132 |
HVG1141 |
HVG1142 |
| Standard |
IEC 62271-100 |
| Rated voltage (kV) |
7.2 |
| Frequency (Hz) |
50 / 60 |
| Rated current (A) |
400 |
630 |
630 |
1,250 |
630 |
1,250 |
| Rated short-circuit breaking current (kA) |
8 |
12.5 |
20 |
25 |
| Rated short-circuit making current (kA) |
20 |
32.5 |
52 |
65 |
| Short-time withstand current for 3sec (kA) |
8 |
12.5 |
20 |
25 |
| Power-frequency withstand voltage (kV, 1mim) |
20 |
| Impulse withstand voltage (kV, 1.2×50㎲) |
60 |
| Operating duty |
O - 0.3sec - CO - 3min - CO |
O - 0.3sec - CO - 3min - CO / CO - 15sec - CO |
| Closing time (ms, at DC110V) |
32 |
| Opening time (ms, at DC110V) |
22 |
| Breaking time (cycles) |
3 |
| Closing operation |
System |
Motor spring stored energy |
| Supply voltage (V) |
DC48, 110, 125, 220 / AC110, 125, 220 |
| Closing & tripping control |
Tripping system |
Shunt trip |
| Supply voltage (V) |
DC48, 110, 125, 220 / AC110, 125, 220 |
| Operating life (times) |
Mechanical operation |
20,000 |
| Auxiliary contacts |
4NO+4NC, 7NO+7NC (Max. 10NO+10NC+1W) |
| Weight (kg) |
Fixed type |
52 |
63 |
65 |
65 |
65 |
65 |
| Draw-out type |
52 |
67 |
70 |
70 |
70 |
70 |
|
HVG Vacuum Circuit Breaker
(VCB) Order Information
- Selection table for rating, pole distance
and mounting
- Standard:
IEC62271-100
|
Specification |
Model |
Order
code |
Applicable mounting |
|
Rated
voltage
(kV)
|
Rated breaking
current (kV)
|
Rated
current
(kV)
|
Pole distance of
VCB body (mm)
|
Fixed
type |
Draw-out type cradle |
|
7.2 |
8 |
400 |
130 |
HVG1099 |
HVG1099 A |
XA |
EA, ES, FA, FS |
GA, GS |
|
12.5 |
630 |
130 |
HVG1011 |
HVG1011 A |
XA |
EA, ES, FA, FS |
GA, GS |
|
20 |
630 |
140 |
HVG1131 |
HVG1131 B |
XA |
EA, ES, FA, FS |
GA, GS |
|
1,250 |
140 |
HVG1132 |
HVG1132 B |
XA |
EA, ES, FA, FS |
GA, GS |
|
25 |
630 |
140 |
HVG1141 |
HVG1141 B |
XA |
EA, ES, FA, FS |
GA, GS |
|
1,250 |
140 |
HVG1142 |
HVG1142 B |
XA |
EA, ES, FA, FS |
GA, GS |
|
Mounting |
Code |
Structure |
| Fixed type |
XA |
Body |
| Draw-out
type |
EA |
Body part of ES cradle |
|
ES |
ES cradle (without shutter) |
|
FA |
Body part of FS cradle |
|
FS |
FS cradle (nonmetallic partition with shutter) |
|
SA |
Body part of SF cradle |
|
SF |
FS cradle (nonmetallic partition with shutter)
with screw type draw-in/out mechanism) |
|
GA |
Body part of GS cradle |
|
GS |
GS cradle (metallic partition with shutter and bushing) |
|
|
|
