DC

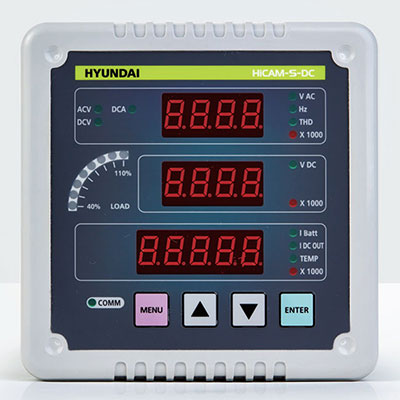

Type Digital Power Meter HiCAM-S-DC
is a high-end instrument for
high precision measurement of
DC current based on rectification
and measurement of harmonic
and THD.
Ratings and Specifications
Item
Specification
Input
Frequency
50Hz / 60Hz
Control Power
AC/DC90~265V
Insulation
Resistance
DC500V 10MΩ
Operating
Temperature
-10℃~55℃
Storage
Temperature
-25℃~70℃
Operating
Humidity
80% 이하
Standards
IEC 60255, IEC 61000-4
I/O
Digital Input 3 Point / Digital Output 2 Point
Communication Type
MODBUS RS-485
Size
127mm(H)×127mm(W)×117mm(D)
Weight
0.5kg
