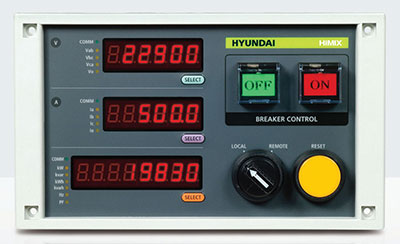

HiMIX
uses HiMAP
measurement data via RS-485
communication, constantly displays
the measured values, and integrates
breaker On / Off control, Local
/ Remote switch and Reset function.
Ratings and Specifications
Item
Specification
Accuracy
Measuring
없음(HiMAP의 계측값을 통신으로 받아서 표시)
Temperature
Operation Guarantee
-10℃~55℃
Restoration Guarantee
-25℃~70℃
Insulation
Resistance
Circuit-Ground
10MΩ
Between Circuits
5MΩ
Between Contacts
5MΩ
Voltage
Withstand
Power Frequency
AC 60Hz 2000V/1min
Overload
Withstand
Control Power
정격 전압×1.3 : 3시간
Control Power
AC/DC 95V~250V 50/60Hz
Power Consumption
15VA
Communication Type
RS-485
Weight
1.0kg
Size
213mm(W)×125mm(H)×125mm(D)
