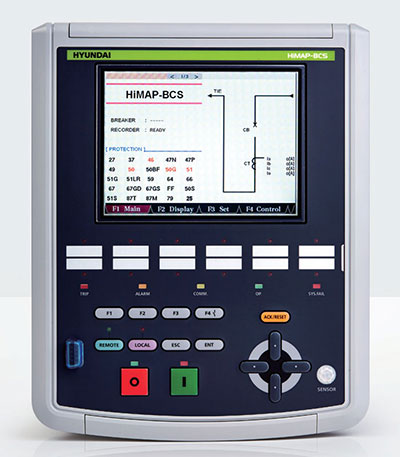

HiMAP-BCS
is a multifunctional all-in-one
digital protection relay that
integrates incoming / feeder
protection, motor and transformer
protection functions into one
IED and is equipped with IEC61850,
the next generation industry
standard protocol, to connect
directly with power system management
system.
Specifications
Item
Specification
Rating
Current
1A 또는 5A, 부담 : 0.4VA/상 이하
Voltage
110V 또는 190V, 부담 : 0.4VA/상 이하
Frequency
50Hz 또는 60Hz
Accuracy
Measuring
±0.2%
Protection Relaying
±2.0%
Temperature
Operation Guarantee
-10℃~55℃
Restoration Guarantee
-25℃~70℃
Insulation
Resistance
Circuits-Ground
10MΩ 이상
Between Circuits
5MΩ 이상
Between Contacts
5MΩ 이상
Voltage
Withstand
Power Frequency
AC 60Hz 2,000V/1min
Lightning Impulse
1.2/50㎲ 5kV
Overload
Withstand
Current Circuit
정격 전류×3 : 3시간 / 정격 전류×20 : 2초 / 정격 전류×100 : 1초
Voltage Circuit
정격 전압×3 : 3시간
Control Power
정격 전압×1.3 : 3시간
Control Power Interruption
최대 300㎳
Control Power
AC/DC 95~250V 50/60Hz
Standards
IEC 60255 / KEMC 1120 / IEC 61850 / IEC 61000-4
Communication Type
RS-485 Multi Drop / Fiber Optic
Protocol
MODBUS / DNP3.0 / IEC 61850(4800~115200bps)
Size
220mm(W)×272.5mm(H)×218.5mm(D)
Weight
7kg
Power
Consumption
21W
