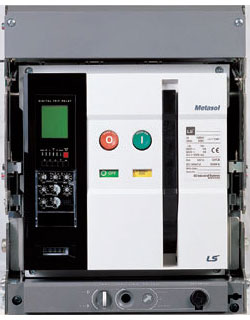

LS Metasol AN-D Air Circuit Breaker

Model

AN-06D

AN-08D

AN-10D

AN-13D

AN-16D

Number of poles (P)

3, 4

Frequency (Hz)

50/60

Rated operating voltage (Ue) (V)

690

Rated insulation voltage (Ui) (V)

1000

Rated impulse withstand voltage (Uimp) (kV)

12

Ampere Frame (AF)

630AF

800AF

1000AF

1250AF

1600AF

Rated current (In max) (A) at 40℃

200

400

1000

1250

1600

400

630







630

800







Rated breaking capacity

(Icu) (Sym) (kA)

690V/600V/550V

50

500V/480V/460V

65

415V/380V/230V/ 220V

65

Dimensions

W=334(3p), 419(4p)mm

Metasol AN-D Models, D: 630~2000AF 3P/4P Standard RST(N)

Model

Ampere

Frame

Pole

Rated

Current

Rated Breaking Capacity

(Icu) (Sym)

Connections

Remarks

AN-06D3-06N

630AF

3P

630A

500V

65kA

690V

50kA

Fixed type

N Vertical-Horizontal Mixed type

OCR

AN-08D3-08N

800AF

3P

800A

500V

65kA

690V

50kA

Fixed type

N Vertical-Horizontal Mixed type

OCR

AN-10D3-10N

1000AF

3P

1000A

500V

65kA

690V

50kA

Fixed type

N Vertical-Horizontal Mixed type

OCR

AN-13D3-13N

1250AF

3P

1250A

500V

65kA

690V

50kA

Fixed type

N Vertical-Horizontal Mixed type

OCR

AN-16D3-16N

1600AF

3P

1600A

500V

65kA

690V

50kA

Fixed type

N Vertical-Horizontal Mixed type

OCR

AN-06D4-06N

630AF

4P

630A

500V

65kA

690V

50kA

Fixed type

N Vertical-Horizontal Mixed type

OCR

AN-08D4-08N

800AF

4P

800A

500V

65kA

690V

50kA

Fixed type

N Vertical-Horizontal Mixed type

OCR

AN-10D4-10N

1000AF

4P

1000A

500V

65kA

690V

50kA

Fixed type

N Vertical-Horizontal Mixed type

OCR

AN-13D4-13N

1250AF

4P

1250A

500V

65kA

690V

50kA

Fixed type

N Vertical-Horizontal Mixed type

OCR

AN-16D4-16N

1600AF

4P

1600A

500V

65kA

690V

50kA

Fixed type

N Vertical-Horizontal Mixed type

OCR

AN-06D3-06A

630AF

3P

630A

500V

65kA

690V

50kA

Draw-out type

A Automatic connection

OCR

AN-08D3-08A

800AF

3P

800A

500V

65kA

690V

50kA

Draw-out type

A Automatic connection

OCR

AN-10D3-10A

1000AF

3P

1000A

500V

65kA

690V

50kA

Draw-out type

A Automatic connection

OCR

AN-13D3-13A

1250AF

3P

1250A

500V

65kA

690V

50kA

Draw-out type

A Automatic connection

OCR

AN-16D3-16A

1600AF

3P

1600A

500V

65kA

690V

50kA

Draw-out type

A Automatic connection

OCR

AN-06D4-06A

630AF

4P

630A

500V

65kA

690V

50kA

Draw-out type

A Automatic connection

OCR

AN-08D4-08A

800AF

4P

800A

500V

65kA

690V

50kA

Draw-out type

A Automatic connection

OCR

AN-10D4-10A

1000AF

4P

1000A

500V

65kA

690V

50kA

Draw-out type

A Automatic connection

OCR

AN-13D4-13A

1250AF

4P

1250A

500V

65kA

690V

50kA

Draw-out type

A Automatic connection

OCR

AN-16D4-16A

1600AF

4P

1600A

500V

65kA

690V

50kA

Draw-out type

A Automatic connection

OCR
