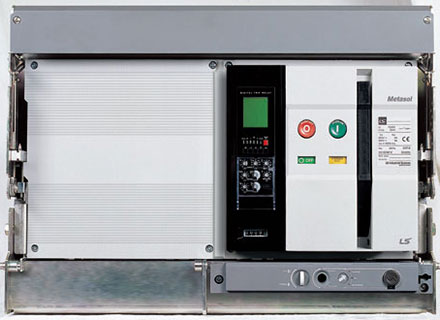

LS Metasol AS-E Air Circuit Breaker

Model

AS-20E

AS-25E

AS-32E

AS-40E

Number of poles (P)

3, 4

Frequency (Hz)

50/60

Rated operating voltage (Ue) (V)

690

Rated insulation voltage (Ui) (V)

1000

Rated impulse withstand voltage (Uimp) (kV)

12

Ampere Frame (AF)

2000AF

2500AF

3200AF

4000AF

Rated current (In max) (A) at 40℃

630

2500

3200

4000

800

1000

1250

1600

2000

Rated breaking capacity (Icu) (Sym) (kA)

690V/600V/550V

85

500V/480V/460V

85

415V/380V/230V/ 220V

85

Dimensions

W=412(3p), 527(4p)mm

Metasol AS-E Models, E: 630~4000AF 3P/4P Standard RST(N)

Model	Ampere Frame	Pole	Rated Current	Rated Breaking Capacity (Icu) (Sym)				Connections		Remarks
AS-20E3-20N	2000AF	3P	2000A	500V	85kA	690V	85kA	Fixed type	N Vertical-Horizontal Mixed type	OCR
AS-25E3-25N	2500AF	3P	2500A	500V	85kA	690V	85kA	Fixed type	N Vertical-Horizontal Mixed type	OCR
AS-32E3-32N	3200AF	3P	3200A	500V	85kA	690V	85kA	Fixed type	N Vertical-Horizontal Mixed type	OCR
AS-40E3-40N	4000AF	3P	4000A	500V	85kA	690V	85kA	Fixed type	N Vertical-Horizontal Mixed type	OCR
AS-20E4-20N	2000AF	4P	2000A	500V	85kA	690V	85kA	Fixed type	N Vertical-Horizontal Mixed type	OCR
AS-25E4-25N	2500AF	4P	2500A	500V	85kA	690V	85kA	Fixed type	N Vertical-Horizontal Mixed type	OCR
AS-32E4-32N	3200AF	4P	3200A	500V	85kA	690V	85kA	Fixed type	N Vertical-Horizontal Mixed type	OCR
AS-40E4-40N	4000AF	4P	4000A	500V	85kA	690V	85kA	Fixed type	N Vertical-Horizontal Mixed type	OCR
AS-20E3-20A	2000AF	3P	2000A	500V	85kA	690V	85kA	Draw-out type	A Automatic connection	OCR
AS-25E3-25A	2500AF	3P	2500A	500V	85kA	690V	85kA	Draw-out type	A Automatic connection	OCR
AS-32E3-32A	3200AF	3P	3200A	500V	85kA	690V	85kA	Draw-out type	A Automatic connection	OCR
AS-40E3-40A	4000AF	3P	4000A	500V	85kA	690V	85kA	Draw-out type	A Automatic connection	OCR
AS-20E4-20A	2000AF	4P	2000A	500V	85kA	690V	85kA	Draw-out type	A Automatic connection	OCR
AS-25E4-25A	2500AF	4P	2500A	500V	85kA	690V	85kA	Draw-out type	A Automatic connection	OCR
AS-32E4-32A	3200AF	4P	3200A	500V	85kA	690V	85kA	Draw-out type	A Automatic connection	OCR
AS-40E4-40A	4000AF	4P	4000A	500V	85kA	690V	85kA	Draw-out type	A Automatic connection	OCR
