AS-40F3-40A LS Metasol Air Circuit Breaker (ACB)

Home

Contact us

AH-D

AH-E

AH-G

AN-D

AN-E

AS-D

AS-E

AS-F

AS-G

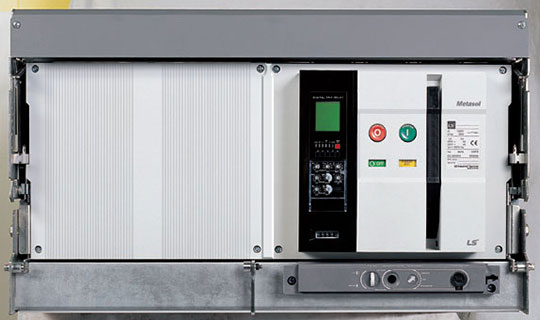

LS Metasol AS-F Air Circuit Breaker

Model

AS-40F

AS-50F

Number of poles (P)

3, 4

Frequency (Hz)

50/60

Rated operating voltage (Ue) (V)

690

Rated insulation voltage (Ui) (V)

1000

Rated impulse withstand voltage (Uimp) (kV)

12

Ampere Frame (AF)

4000AF

5000AF

Rated current (In max) (A) at 40℃

4000

5000

Rated breaking capacity (Icu) (Sym) (kA)

690V/600V/550V

85

500V/480V/460V

100

415V/380V/230V/ 220V

100

Dimensions

W=629(3p), 799(4p)mm

Metasol AS-F Models, F: 4000/5000AF 3P/4P Standard RST(N)

Model	Ampere Frame	Pole	Rated Current	Rated Breaking Capacity (Icu) (Sym)				Connections		Remarks
AS-40F3-40N	4000AF	3P	4000A	500V	100kA	690V	85kA	Fixed type	N Vertical-Horizontal Mixed type	OCR
AS-50F3-50N	5000AF	3P	5000A	500V	100kA	690V	85kA	Fixed type	N Vertical-Horizontal Mixed type	OCR
AS-40F4-40N	4000AF	4P	4000A	500V	100kA	690V	85kA	Fixed type	N Vertical-Horizontal Mixed type	OCR
AS-50F4-50N	5000AF	4P	5000A	500V	100kA	690V	85kA	Fixed type	N Vertical-Horizontal Mixed type	OCR
AS-40F3-40A	4000AF	3P	4000A	500V	100kA	690V	85kA	Draw-out type	A Automatic connection	OCR
AS-50F3-50A	5000AF	3P	5000A	500V	100kA	690V	85kA	Draw-out type	A Automatic connection	OCR
AS-40F4-40A	4000AF	4P	4000A	500V	100kA	690V	85kA	Draw-out type	A Automatic connection	OCR
AS-50F4-50A	5000AF	4P	5000A	500V	100kA	690V	85kA	Draw-out type	A Automatic connection	OCR
