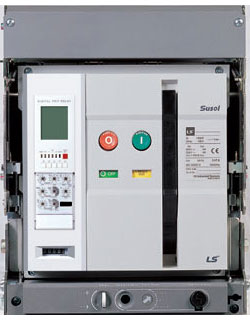

LS Susol AH-D Air Circuit Breaker

Model

AH-06D

AH-08D

AH-10D

AH-13D

AH-16D

AH-20D

Number of poles (P)

3, 4

Frequency (Hz)

50/60

Rated operating voltage (Ue) (V)

690

Rated insulation voltage (Ui) (V)

1000

Rated impulse withstand voltage (Uimp) (kV)

12

Ampere Frame (AF)

630AF

800AF

1000AF

1250AF

1600AF

2000AF

Rated current (In max) (A) at 40℃

200

400

1000

1250

1600

2000

400

630

630

800

Rated breaking capacity (Icu) (Sym) (kA)

690V/600V/550V

65

500V/480V/460V

85

415V/380V/230V/ 220V

85

Dimensions

W=334(3p), 419(4p)mm

Susol AH-D Models, D: 630~2000AF 3P/4P Standard RST(N)

Model	Ampere Frame	Pole	Rated Current	Rated Breaking Capacity (Icu) (Sym)				Connections		Remarks
AH-06D3-06N	630AF	3P	630A	500V	85kA	690V	65kA	Fixed type	N Vertical-Horizontal Mixed type	OCR
AH-08D3-08N	800AF	3P	800A	500V	85kA	690V	65kA	Fixed type	N Vertical-Horizontal Mixed type	OCR
AH-10D3-10N	1000AF	3P	1000A	500V	85kA	690V	65kA	Fixed type	N Vertical-Horizontal Mixed type	OCR
AH-13D3-13N	1250AF	3P	1250A	500V	85kA	690V	65kA	Fixed type	N Vertical-Horizontal Mixed type	OCR
AH-16D3-16N	1600AF	3P	1600A	500V	85kA	690V	65kA	Fixed type	N Vertical-Horizontal Mixed type	OCR
AH-20D3-20N	2000AF	3P	2000A	500V	85kA	690V	65kA	Fixed type	N Vertical-Horizontal Mixed type	OCR
AH-06D3-06N	630AF	3P	630A	500V	100kA	690V	85kA	Fixed type	N Vertical-Horizontal Mixed type	OCR
AH-08D3-08N	800AF	3P	800A	500V	100kA	690V	85kA	Fixed type	N Vertical-Horizontal Mixed type	OCR
AH-10D3-10N	1000AF	3P	1000A	500V	100kA	690V	85kA	Fixed type	N Vertical-Horizontal Mixed type	OCR
AH-13D3-13N	1250AF	3P	1250A	500V	100kA	690V	85kA	Fixed type	N Vertical-Horizontal Mixed type	OCR
AH-16D3-16N	1600AF	3P	1600A	500V	100kA	690V	85kA	Fixed type	N Vertical-Horizontal Mixed type	OCR
AH-20D3-20N	2000AF	3P	2000A	500V	100kA	690V	85kA	Fixed type	N Vertical-Horizontal Mixed type	OCR
AH-06D4-06N	630AF	4P	630A	500V	85kA	690V	65kA	Fixed type	N Vertical-Horizontal Mixed type	OCR
AH-08D4-08N	800AF	4P	800A	500V	85kA	690V	65kA	Fixed type	N Vertical-Horizontal Mixed type	OCR
AH-10D4-10N	1000AF	4P	1000A	500V	85kA	690V	65kA	Fixed type	N Vertical-Horizontal Mixed type	OCR
AH-13D4-13N	1250AF	4P	1250A	500V	85kA	690V	65kA	Fixed type	N Vertical-Horizontal Mixed type	OCR
AH-16D4-16N	1600AF	4P	1600A	500V	85kA	690V	65kA	Fixed type	N Vertical-Horizontal Mixed type	OCR
AH-20D4-20N	2000AF	4P	2000A	500V	85kA	690V	65kA	Fixed type	N Vertical-Horizontal Mixed type	OCR
AH-06D4-06N	630AF	4P	630A	500V	100kA	690V	85kA	Fixed type	N Vertical-Horizontal Mixed type	OCR
AH-08D4-08N	800AF	4P	800A	500V	100kA	690V	85kA	Fixed type	N Vertical-Horizontal Mixed type	OCR
AH-10D4-10N	1000AF	4P	1000A	500V	100kA	690V	85kA	Fixed type	N Vertical-Horizontal Mixed type	OCR
AH-13D4-13N	1250AF	4P	1250A	500V	100kA	690V	85kA	Fixed type	N Vertical-Horizontal Mixed type	OCR
AH-16D4-16N	1600AF	4P	1600A	500V	100kA	690V	85kA	Fixed type	N Vertical-Horizontal Mixed type	OCR
AH-20D4-20N	2000AF	4P	2000A	500V	100kA	690V	85kA	Fixed type	N Vertical-Horizontal Mixed type	OCR
AH-06D3-06A	630AF	3P	630A	500V	85kA	690V	65kA	Draw-out type	A Automatic connection	OCR
AH-08D3-08A	800AF	3P	800A	500V	85kA	690V	65kA	Draw-out type	A Automatic connection	OCR
AH-10D3-10A	1000AF	3P	1000A	500V	85kA	690V	65kA	Draw-out type	A Automatic connection	OCR
AH-13D3-13A	1250AF	3P	1250A	500V	85kA	690V	65kA	Draw-out type	A Automatic connection	OCR
AH-16D3-16A	1600AF	3P	1600A	500V	85kA	690V	65kA	Draw-out type	A Automatic connection	OCR
AH-20D3-20A	2000AF	3P	2000A	500V	85kA	690V	65kA	Draw-out type	A Automatic connection	OCR
AH-06D3-06A	630AF	3P	630A	500V	100kA	690V	85kA	Draw-out type	A Automatic connection	OCR
AH-08D3-08A	800AF	3P	800A	500V	100kA	690V	85kA	Draw-out type	A Automatic connection	OCR
AH-10D3-10A	1000AF	3P	1000A	500V	100kA	690V	85kA	Draw-out type	A Automatic connection	OCR
AH-13D3-13A	1250AF	3P	1250A	500V	100kA	690V	85kA	Draw-out type	A Automatic connection	OCR
AH-16D3-16A	1600AF	3P	1600A	500V	100kA	690V	85kA	Draw-out type	A Automatic connection	OCR
AH-20D3-20A	2000AF	3P	2000A	500V	100kA	690V	85kA	Draw-out type	A Automatic connection	OCR
AH-06D4-06A	630AF	4P	630A	500V	85kA	690V	65kA	Draw-out type	A Automatic connection	OCR
AH-08D4-08A	800AF	4P	800A	500V	85kA	690V	65kA	Draw-out type	A Automatic connection	OCR
AH-10D4-10A	1000AF	4P	1000A	500V	85kA	690V	65kA	Draw-out type	A Automatic connection	OCR
AH-13D4-13A	1250AF	4P	1250A	500V	85kA	690V	65kA	Draw-out type	A Automatic connection	OCR
AH-16D4-16A	1600AF	4P	1600A	500V	85kA	690V	65kA	Draw-out type	A Automatic connection	OCR
AH-20D4-20A	2000AF	4P	2000A	500V	85kA	690V	65kA	Draw-out type	A Automatic connection	OCR
AH-06D4-06A	630AF	4P	630A	500V	100kA	690V	85kA	Draw-out type	A Automatic connection	OCR
AH-08D4-08A	800AF	4P	800A	500V	100kA	690V	85kA	Draw-out type	A Automatic connection	OCR
AH-10D4-10A	1000AF	4P	1000A	500V	100kA	690V	85kA	Draw-out type	A Automatic connection	OCR
AH-13D4-13A	1250AF	4P	1250A	500V	100kA	690V	85kA	Draw-out type	A Automatic connection	OCR
AH-16D4-16A	1600AF	4P	1600A	500V	100kA	690V	85kA	Draw-out type	A Automatic connection	OCR
AH-20D4-20A	2000AF	4P	2000A	500V	100kA	690V	85kA	Draw-out type	A Automatic connection	OCR
