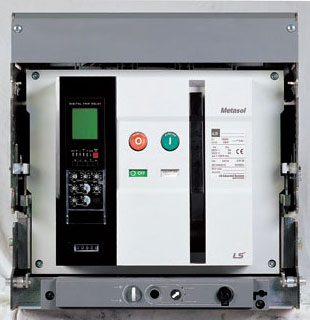

LS Metasol AS-D Air Circuit Breaker

Model

AS-06D

AS-08D

AS-10D

AS-13D

AS-16D

AS-20D

Number of poles (P)

3, 4

Frequency (Hz)

50/60

Rated operating voltage (Ue) (V)

690

Rated insulation voltage (Ui) (V)

1000

Rated impulse withstand voltage (Uimp) (kV)

12

Ampere Frame (AF)

630AF

800AF

1000AF

1250AF

1600AF

2000AF

Rated current (In max) (A) at 40℃

200

400

1000

1250

1600

2000

400

630









630

800









Rated breaking capacity (Icu) (Sym) (kA)

690V/600V/550V

65

500V/480V/460V

70

415V/380V/230V/ 220V

70

Dimensions

W=334(3p), 419(4p)mm

Metasol AS-D Models, D: 630~2000AF 3P/4P Standard RST(N)

Model

Ampere

Frame

Pole

Rated

Current

Rated Breaking Capacity

(Icu) (Sym)

Connections

Remarks

AS-06D3-06N

630AF

3P

630A

500V

70kA

690V

65kA

Fixed type

N Vertical-Horizontal Mixed type

OCR

AS-08D3-08N

800AF

3P

800A

500V

70kA

690V

65kA

Fixed type

N Vertical-Horizontal Mixed type

OCR

AS-10D3-10N

1000AF

3P

1000A

500V

70kA

690V

65kA

Fixed type

N Vertical-Horizontal Mixed type

OCR

AS-13D3-13N

1250AF

3P

1250A

500V

70kA

690V

65kA

Fixed type

N Vertical-Horizontal Mixed type

OCR

AS-16D3-16N

1600AF

3P

1600A

500V

70kA

690V

65kA

Fixed type

N Vertical-Horizontal Mixed type

OCR

AS-20D3-20N

2000AF

3P

2000A

500V

70kA

690V

65kA

Fixed type

N Vertical-Horizontal Mixed type

OCR

AS-06D4-06N

630AF

4P

630A

500V

70kA

690V

65kA

Fixed type

N Vertical-Horizontal Mixed type

OCR

AS-08D4-08N

800AF

4P

800A

500V

70kA

690V

65kA

Fixed type

N Vertical-Horizontal Mixed type

OCR

AS-10D4-10N

1000A

4P

1000A

500V

70kA

690V

65kA

Fixed type

N Vertical-Horizontal Mixed type

OCR

AS-13D4-13N

1250AF

4P

1250A

500V

70kA

690V

65kA

Fixed type

N Vertical-Horizontal Mixed type

OCR

AS-16D4-16N

1600AF

4P

1600A

500V

70kA

690V

65kA

Fixed type

N Vertical-Horizontal Mixed type

OCR

AS-20D4-20N

2000AF

4P

2000A

500V

70kA

690V

65kA

Fixed type

N Vertical-Horizontal Mixed type

OCR

AS-06D3-06A

630AF

3P

630A

500V

70kA

690V

65kA

Draw-out type

A Automatic connection

OCR

AS-08D3-08A

800AF

3P

800A

500V

70kA

690V

65kA

Draw-out type

A Automatic connection

OCR

AS-10D3-10A

1000AF

3P

1000A

500V

70kA

690V

65kA

Draw-out type

A Automatic connection

OCR

AS-13D3-13A

1250AF

3P

1250A

500V

70kA

690V

65kA

Draw-out type

A Automatic connection

OCR

AS-16D3-16A

1600AF

3P

1600A

500V

70kA

690V

65kA

Draw-out type

A Automatic connection

OCR

AS-20D3-20A

2000AF

3P

2000A

500V

70kA

690V

65kA

Draw-out type

A Automatic connection

OCR

AS-06D4-06A

630AF

4P

630A

500V

70kA

690V

65kA

Draw-out type

A Automatic connection

OCR

AS-08D4-08A

800AF

4P

800A

500V

70kA

690V

65kA

Draw-out type

A Automatic connection

OCR

AS-10D4-10A

1000AF

4P

1000A

500V

70kA

690V

65kA

Draw-out type

A Automatic connection

OCR

AS-13D4-13A

1250AF

4P

1250A

500V

70kA

690V

65kA

Draw-out type

A Automatic connection

OCR

AS-16D4-16A

1600AF

4P

1600A

500V

70kA

690V

65kA

Draw-out type

A Automatic connection

OCR

AS-20D4-20A

2000AF

4P

2000A

500V

70kA

690V

65kA

Draw-out type

A Automatic connection

OCR
