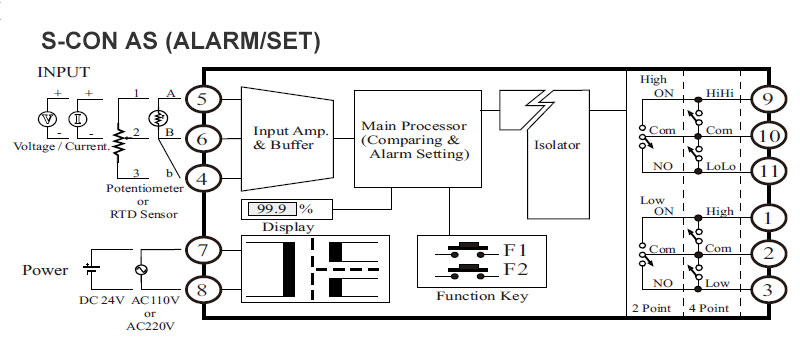

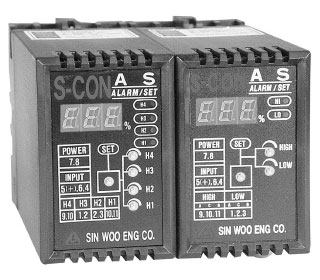

S-CON AS (ALARM/SET)
Isolated Signal
Alarm Setter
Input
various analog signals and output
max 4 alarms. Current Measuring
Contactor, Voltage Measuring Contactor and
Temperature Alarm Unit
|
S-CON AS (ALARM/SET)
|
Input
|
Output
|
Power
|
|
|
A: DC Voltage
B: DC Current
C: AC Voltage
D: AC Current
E: RTD Sensor (Pt100)
G: Potentiometer
|
1: SPDT 1-Point
2: SPDT 2-Point
3: SPST 3-Point
4:
SPST 4-Point
|
W: AC 200~230V,
50/60Hz
X: AC 100~120V,
50/60Hz
Y: DC 24V
|
|
|
Model & Suffix Code
Model
Type Selection
|
Code
|
Output
|
|
2
|
2 Outputs
|
|
4
|
4 Outputs
|
Input
Type & Range Selection
|
Code
|
Signal
|
|
A
|
DC Voltage
|
|
B
|
DC Current
|
|
C
|
AC Voltage
|
|
D
|
AC Current
|
|
E
|
RTD Sensor (Pt100)
|
|
G
|
Potentiometer
|
|
R
|
Other Special Specifications
|
Output
Type & Range Selection
|
Code
|
Switch Type
|
Point
|
High / Low
|
|
1
|
SPDT
|
1-Point
|
High or Low
|
|
2
|
SPDT
|
2-Point
|
H/L, High 2 Points
or Low 2 Points
|
|
3
|
SPST
|
3-Point
|
H/L/HH or H/L/LL
|
|
4
|
SPST
|
4-Point
|
H/L 4 Points, High
4 Points or Low 4 Points
|
|
R
|
Other Special Specifications
|
-
|
O.C, SSR, etc.
|
Power
Supply
|
Code
|
Voltage
|
Frequency
|
|
W
|
AC 200~230V
|
50/60Hz
|
|
X
|
AC 100~120V
|
50/60Hz
|
|
Y
|
DC 24V
|
-
|
|
Z
|
Other Special Specifications
|
-
|
Ordering Information
Specify
code number and variables.
-
Code no.: AS - Model / Input / Output - Power, Ex. AS-4B4-X
- Special Input Range, Ex. 0~100mV
- Special Output Type, Ex. SSR
or O.C
Specifications
- Accuracy
: ±0.1%of Full Scale
- Temperature Coefficient
: ±0.015%/°C
- Response Time : 0.5 Sec or
less(0~90%), Normal
- Insulation Resistance : 100MΩ
or more with 500V DC between Input, Output and Power
-
Dielectric Strength : 1500V AC 0.5mA/Min (Input to Output
to power)
- Display Range : -1999 to 9999 (Available
Decimal Point)
- Hysteresis (Dead-band) : ±10%
of Full Scale
- Power Supply : AC 100~120V, 200~230V
/60Hz (about 3VA) or DC 18~30V (about 3Watts)
- Operating
Temperature : -5~+55°C
- Operating Humidity : 90%
RH max. (Non-condensing)
- Isolation :
Input to Output to Power
- Adjustment : Zero &
Span(Separation) ±10% of F.S
H/L
2 points, H/L 4 Points, High 4 Points, Low 4 points
setting of F.S
- Display : 4 digits
- Housing Material
: Plastic ABS(Polycarbonate), Black
- Mounting : Wall or Rail
mounting (Plug-in Type)
- Dimension : 52(W) ×
77(H) × 112(D)mm
- Weight : about 400g
|
