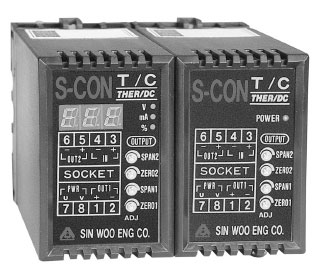

S-CON T/C (THER/DC) Isolated Thermocouple Signal Converter

Input standard thermocouples and output isolated and linearized DC signals. Thermocouple Transmitter and Isolation Signal Splitter

S-CON T/C (THER/DC)

Input

Output

Power

A: K Type (CA)

B: E Type (CRC)

C: J Type (IC)

D: T Type (CC)

E: R Type

1: DC 0~10mV

2: DC 0~100mV

3: DC 0~5V

4: DC 0~10V

5: DC 1~5V

6: DC 0~1mA

7: DC 0~20mA

8: DC 4~20mA

W: AC 200~230V, 50/60Hz

X: AC 100~120V, 50/60Hz

Y: DC 24V

Model & Suffix Code

Model Type Selection

Code	Output	Display
2	1 Output	with Display
4	1 Output	without Display
7	2 Outputs	with Display
9	2 Outputs	without Display

Input Type Selection

Code	Type	Symbol
A	K Type	CA
B	E Type	CRC
C	J Type	IC
D	T Type	CC
E	R Type	-
R	Other Special Specifications	-

Output Type & Range Selection (Available for Output 1 & Output 2)

Code	Signal	Load Resistance
1	DC 0~10mV	10kΩ or more
2	DC 0~100mV	100kΩ or more
3	DC 0~5V	5kΩ or more
4	DC 0~10V	10kΩ or more
5	DC 1~5V	5kΩ or more
6	DC 0~1mA	0~15kΩ
7	DC 0~20mA	0~750Ω
8	DC 4~20mA	0~750Ω
R	Other Special Specifications	-
N	Not Used	-

Power Supply

Code	Voltage	Frequency
W	AC 200~230V	50/60Hz
X	AC 100~120V	50/60Hz
Y	DC 24V	-
Z	Other Special Specifications	-

Ordering Information

Specify code number and variables. Burnout is set to upscale. Specify when downscale or no burnout protection is required.
    - Code no.: T/C - Model / Input / Output1 / Ouput2 - Power, Ex. T/C-4A8N-X
    - Temperature Range, Ex. 0~800°C
    - Special Output Range, Ex. 0~20mA

Specifications

- Accuracy : ±0.2%of Full Scale
- Temperature Coefficient: ±0.015%/°C
- Response Time : 0.5 Sec or less(0~90%), Normal
- Insulation Resistance : 100MΩ or more with 500V DC between Input, Output and Power
- Dielectric Strength : 1500V AC 0.5mA/Min (Input to Output to Power)
- Display Range : -1999 to 9999°C (Available Decimal Point)
- Power Supply : AC 100~120V, 200~230V 50/60Hz (about 3VA) or DC 18~30V (about 3Watts)
- Operating Temperature : -5 ~ +55°C
- Operating Humidity : 90% RH max.(Non-condensing)
- Isolation : Input to Output to Power
- Adjustment : Zero & Span(Separation) ±10% of F.S
- Burnout Protection : Upscale standard (Downscale option)
- Display : 4 digits (-1999 to 9999)
- Housing Material : Plastic ABS(Polycarbonate), Black
- Mounting : Wall or Rail mounting (Plug-in Type)
- Dimension : 52(W) × 77(H) × 112(D)mm
- Weight : about 400g

Schematic Circuit & Connection Diagram
