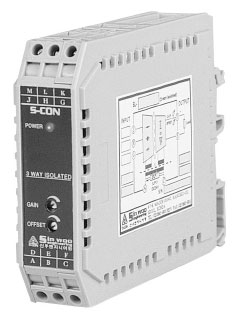

S-CON SL-DSC (DC/DC)     Slim DC Signal Converter

Compact Isolating Signal Transmitter and output isolated DC signals. Isolation Amplifier

S-CON SL-DSC (DC/DC)

Input

Output

Power

A: DC 4~20mA

B: DC 0~20mA

C: DC 1~5V

D: DC 0~5V

1: DC 0~5V

2: DC 1~5V

3: DC 0~20mA

4: DC 4~20mA

X: AC 85~265V, 50/60Hz

Y: DC 24V

Model & Suffix Code

Input Type & Range Selection

Code

Signal

Impedance

A

DC 4~20mA

100Ω

B

DC 0~20mA

100Ω

C

DC 1~5V

1MΩ or more

D

DC 0~5V

1MΩ or more

R

Other Special Specifications

-



Output Type & Range Selection

Code

Signal

Load Resistance

1

DC 0~5V

750Ω or less

2

DC 1~5V

750Ω or less

3

DC 0~20mA

750Ω or less

4

DC 4~20mA

750Ω or less

R

Other Special Specifications

-



Power Supply

Code

Voltage

Frequency

X

AC 85~265V

50/60Hz

Y

DC 24V

-

Z

Other Special Specifications

-



Ordering Information

Specify code number and variables.
    - Code no.: SL-DSC - Input / Output - Power
    - Specify special Output Range, Ex. 0~5mA

 Ordering Example

Ordering Code

SL-DSC-A1-Y

A

Input

DC 4~20mA

1

Output

DC 0~5V

Y

Power Supply

DC 24V

Ordering Code

SL-DSC-A4-Y

A

Input

DC 4~20mA

4

Output

DC 4~20mA

Y

Power Supply

DC 24V



Specifications

- Accuracy : ±0.2%of Full Scale
- Temperature Coefficient : ±0.015%/°C
- Response Time : 0.1Sec or less(0~90%), Normal
- Insulation Resistance : 100MΩ or more with 500V DC between Input, Output and Power
- Dielectric Strength : 1500V AC 0.5mA/Min (Input to Output to Power)
- Power Supply : DC 18~30V (Max. Current : 100mA)-Reverse Polarity protected
- Operating Temperature : 0 ~ 40°C((Storage : -20 ~ 70°C)
- Operating Humidity : 90% RH max.(Non-condensing)
- Isolation : Input to Output to Power
- Easy Calibration of the Gain (Max.±40%of F.S) and Offset (Max.±20% of F.S)
- Triple Isolation for using on input & output of the PLC
- Housing Material : Plastic ABS(Resin), Gray
- Mounting : Rail mounting
- Dimension : 22.5(W) × 75(H) × 107(D)mm
- Weight : about 120g

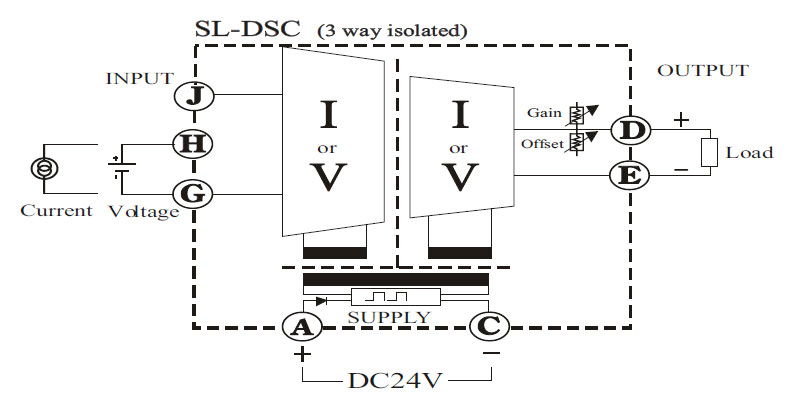

Schematic Circuit & Connection Diagram
