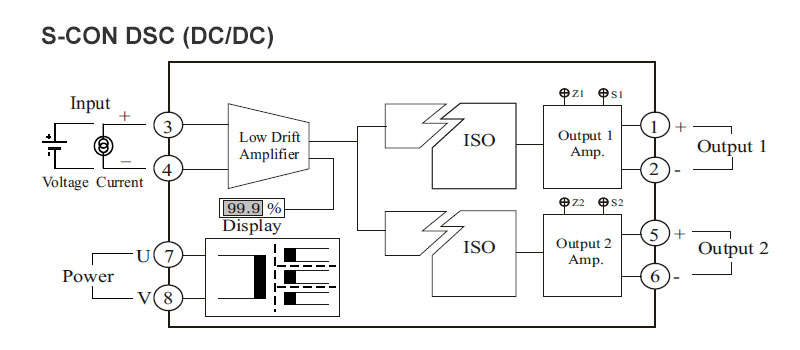

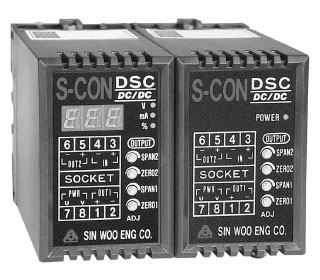

Model & Suffix Code
Model
Type Selection
|
Code
|
Output
|
Display
|
|
2
|
1 Output
|
with Display
|
|
4
|
1 Output
|
without Display
|
|
7
|
2 Outputs
|
with Display
|
|
9
|
2 Outputs
|
without Display
|
Input
Type & Range Selection
|
Code
|
Signal
|
Impedance
|
|
A
|
DC 0~10mV
|
1kΩ or more
|
|
B
|
DC 0~100mV
|
1kΩ or more
|
|
C
|
DC 0~5V
|
1kΩ or more
|
|
D
|
DC 0~10V
|
1kΩ or more
|
|
E
|
DC 1~5V
|
1kΩ or more
|
|
F
|
DC 0~1mA
|
1kΩ fixed
|
|
G
|
DC 0~20mA
|
250Ω fixed
|
|
H
|
DC 4~20mA
|
250Ω fixed
|
|
R
|
Other Special Specifications
|
-
|
Output
Type & Range Selection (Available for Output 1 &
Output 2)
|
Code
|
Signal
|
Load Resistance
|
|
1
|
DC 0~10mV
|
10kΩ or more
|
|
2
|
DC 0~100mV
|
100kΩ or more
|
|
3
|
DC 0~5V
|
5kΩ or more
|
|
4
|
DC 0~10V
|
10kΩ or more
|
|
5
|
DC 1~5V
|
5kΩ or more
|
|
6
|
DC 0~1mA
|
0~15kΩ
|
|
7
|
DC 0~20mA
|
0~750Ω
|
|
8
|
DC 4~20mA
|
0~750Ω
|
|
R
|
Other Special Specifications
|
-
|
|
N
|
Not Used
|
-
|
Power
Supply
|
Code
|
Voltage
|
Frequency
|
|
W
|
AC 200~230V
|
50/60Hz
|
|
X
|
AC 100~120V
|
50/60Hz
|
|
Y
|
DC 24V
|
-
|
|
Z
|
Other Special Specifications
|
-
|
Ordering Information
Specify
code number and variables.
- Code
no.: DSC - Model / Input / Output1 / Ouput2 - Power
- Special
Input Range, Ex. 0~100mV
- Special
Output Range, Ex. 0~5mA
Ordering
Example
|
Ordering
Code |
DSC-4C8N-X
|
|
4 |
1 Output without Display
|
|
C |
Input
|
DC 0~5V
|
|
8
|
Output-1
|
DC 4~20mA
|
|
N |
Output-2
|
Not Used
|
|
X |
Power
Supply
|
AC 100~120V, 50/60Hz
|
|
|
|
Ordering
Code |
DSC-4D8N-W
|
|
4 |
1 Output without Display
|
|
D |
Input
|
DC 0~10V
|
|
8
|
Output-1
|
DC 4~20mA
|
|
N |
Output-2
|
Not Used
|
|
W |
Power
Supply
|
AC 200~230V, 50/60Hz
|
|
|
Ordering
Code |
DSC-4H4N-W
|
|
4 |
1 Output without Display
|
|
H |
Input
|
DC 4~20mA
|
|
4
|
Output-1
|
DC 0~10V
|
|
N |
Output-2
|
Not Used
|
|
W |
Power
Supply
|
AC 200~230V, 50/60Hz
|
|
|
Ordering
Code |
DSC-9E88-W
|
|
9 |
2 Outputs without Display
|
|
E |
Input
|
DC 1~5V
|
|
8
|
Output-1
|
DC 4~20mA
|
|
8 |
Output-2
|
DC 4~20mA
|
|
W |
Power
Supply
|
AC 200~230V, 50/60Hz
|
|
|
Ordering
Code |
DSC-9H88-Y
|
|
9 |
2 Outputs without Display
|
|
H |
Input
|
DC 4~20mA
|
|
8
|
Output-1
|
DC 4~20mA
|
|
8 |
Output-2
|
DC 4~20mA
|
|
Y |
Power
Supply
|
DC 24V
|
|
Specifications
- Accuracy
: ±0.2% of Full Scale
- Temperature Coefficient
: ±0.015%/°C
- Response Time : 0.5 Sec or
less(0~90%), Normal
- Insulation Resistance : 100MΩ
or more with 500V DC between Input, Output and Power
-
Dielectric Strength : 1500V AC 0.5mA/Min (Input to Output
to power)
- Display Range : -1999 to 9999 (Available
Decimal Point)
- Display Unit : %, V, A, mV, mA,
etc.
- Power
Supply : AC 100~120V, 200~230V 50/60Hz (about 3VA) or
DC 18~30V (about 3Watts)
- Operating Temperature
: -5 ~ +55°C
- Operating Humidity : 90% RH max.
(Non-condensing)
- Isolation
: Input to Output to Power
- Adjustment : Zero &
Span(Separation) ±10% of F.S
- Display : 4
digits
- Housing
Material : Plastic ABS(Polycarbonate), Black
- Mounting : Wall or Rail mounting
(Plug-in Type)
- Dimension : 52(W) × 77(H)
× 112(D)mm
- Weight : about 400g
|
