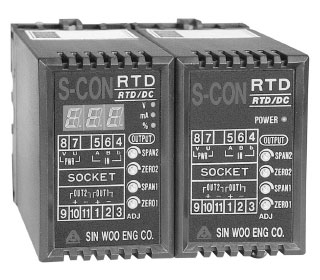

S-CON RTD (RTD/DC)
Isolated Temperature (RTD)
Signal Converter
Input
2 or 3-wire Resistance Temperature Detector
(RTD, Pt100) and output isolated
and linearized DC signals. Temperature Transmitter
and
Isolation Signal Splitter
|
S-CON RTD (RTD/DC)
|
Input
|
Output
|
Power
|
|
|
A: -50 ~ +50°C,
JIS
B: 0 ~ 50°C,
JIS
C: 0 ~ 100°C,
JIS
D: 0 ~ 200°C,
JIS
E: 0 ~ 300°C,
JIS
F: 0 ~ 400°C,
JIS
G: -50 ~ +50°C,
DIN
H: 0 ~ 50°C,
DIN
I: 0 ~ 100°C,
DIN
J: 0 ~ 200°C,
DIN
K: 0 ~ 300°C,
DIN
L: 0 ~ 400°C,
DIN
|
1: DC 0~10mV
2:
DC 0~100mV
3:
DC 0~5V
4: DC
0~10V
5: DC
1~5V
6: DC
0~1mA
7: DC 0~20mA
8: DC 4~20mA
|
W: AC 200~230V,
50/60Hz
X: AC 100~120V,
50/60Hz
Y: DC 24V
|
|
|
Model & Suffix Code
Model Type Selection
|
Code
|
Output
|
Display
|
|
2
|
1 Output
|
with Display
|
|
4
|
1 Output
|
without Display
|
|
7
|
2 Outputs
|
with Display
|
|
9
|
2 Outputs
|
without Display
|
Input Type & Range Selection
|
Code
|
Temperature Range
|
Standard
|
|
A
|
-50 ~ +50°C
|
JIS
|
|
B
|
0 ~ 50°C
|
JIS
|
|
C
|
0 ~ 100°C
|
JIS
|
|
D
|
0 ~ 200°C
|
JIS
|
|
E
|
0 ~ 300°C
|
JIS
|
|
F
|
0 ~ 400°C
|
JIS
|
|
G
|
-50 ~ +50°C
|
DIN
|
|
H
|
0 ~ 50°C
|
DIN
|
|
I
|
0 ~ 100°C
|
DIN
|
|
J
|
0 ~ 200°C
|
DIN
|
|
K
|
0 ~ 300°C
|
DIN
|
|
L
|
0 ~ 400°C
|
DIN
|
|
R
|
Other Special Specifications
|
-
|
Output Type & Range Selection (Available
for Output 1 & Output 2)
|
Code
|
Signal
|
Load Resistance
|
|
1
|
DC 0~10mV
|
10kΩ or more
|
|
2
|
DC 0~100mV
|
100kΩ or more
|
|
3
|
DC 0~5V
|
5kΩ or more
|
|
4
|
DC 0~10V
|
10kΩ or more
|
|
5
|
DC 1~5V
|
5kΩ or more
|
|
6
|
DC 0~1mA
|
0~15kΩ
|
|
7
|
DC 0~20mA
|
0~750Ω
|
|
8
|
DC 4~20mA
|
0~750Ω
|
|
R
|
Other Special Specifications
|
-
|
|
N
|
Not Used
|
-
|
Power Supply
|
Code
|
Voltage
|
Frequency
|
|
W
|
AC 200~230V
|
50/60Hz
|
|
X
|
AC 100~120V
|
50/60Hz
|
|
Y
|
DC 24V
|
-
|
|
Z
|
Other Special Specifications
|
-
|
Ordering Information
Specify code number and variables. Burnout is set
to up-scale. Specify when downscale or no burnout protection is
required.
- Code no.: RTD
- Model / Input / Output1 / Ouput2 - Power, Ex. RTD-4C8N-X
- Temperature Range, Ex. 0~100°C
- Special Output Range, Ex.
0~20mA
Specifications
- Accuracy : ±0.2%of Full Scale
-
Temperature Coefficient : ±0.015%/°C
-
Response Time : 0.5 Sec or less(0~90%), Normal
-
Insulation Resistance : 100MΩ or more with 500V
DC between Input, Output and Power
- Dielectric Strength : 1500V AC 0.5mA/Min (Input
to Output to Power)
- Display Range : -1999 to 9999°C (Available Decimal
Point)
- Input Sensing : 2mA DC (Pt 100Ω RTD Sensor)
-
Power Supply : AC 100~120V, 200~230V 50/60Hz (about
3VA) or DC 18~30V (about 3Watts)
- Operating Temperature : -5 ~ +55°C
-
Operating Humidity : 90% RH max.(Non-condensing)
-
Isolation : Input to Output to Power
- Adjustment : Zero & Span(Separation) ±10%
of
F.S
- Burnout Protection : Upscale standard (Downscale
option)
- Display : 4 digits
-
Housing Material : Plastic ABS(Polycarbonate), Black
-
Mounting : Wall or Rail mounting (Plug-in Type)
-
Dimension : 52(W) × 77(H) × 112(D)mm
- Weight : about 400g
|
|

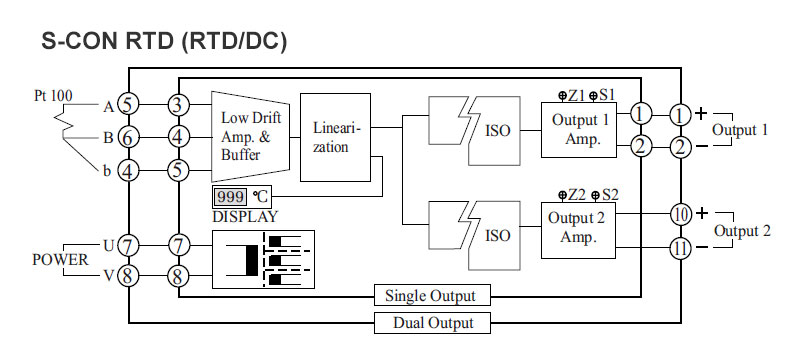

Schematic Circuit & Connection
Diagram
|
|
