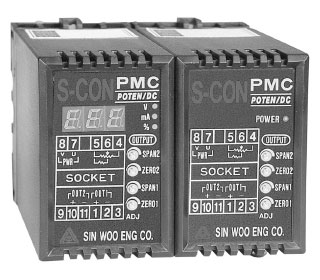

S-CON PMC (POTEN/DC)     Isolated Potentiometer Signal Converter

Input 2 or 3-wire potentiometer value of 100Ω ~ 100kΩ and output isolated DC signals. Potentiometer Transmitter, Isolation Signal Splitter

S-CON PMC (POTEN/DC)

Input

Output

Power

A: 100Ω ~ 100kΩ

1: DC 0~10mV

2: DC 0~100mV

3: DC 0~5V

4: DC 0~10V

5: DC 1~5V

6: DC 0~1mA

7: DC 0~20mA

8: DC 4~20mA

W: AC 200~230V, 50/60Hz

X: AC 100~120V, 50/60Hz

Y: DC 24V

Model & Suffix Code

Model Type Selection

Code

Output

Display

2

1 Output

with Display

4

1 Output

without Display

7

2 Outputs

with Display

9

2 Outputs

without Display



Input Type & Range Selection

Code

Signal

A

100Ω ~ 100kΩ

R

Other Special Specifications



Output Type & Range Selection (Available for Output 1 & Output 2)

Code

Signal

Load Resistance

1

DC 0~10mV

10kΩ or more

2

DC 0~100mV

100kΩ or more

3

DC 0~5V

5kΩ or more

4

DC 0~10V

10kΩ or more

5

DC 1~5V

5kΩ or more

6

DC 0~1mA

0~15kΩ

7

DC 0~20mA

0~750Ω

8

DC 4~20mA

0~750Ω

R

Other Special Specifications

-

N

Not Used

-



Power Supply

Code

Voltage

Frequency

W

AC 200~230V

50/60Hz

X

AC 100~120V

50/60Hz

Y

DC 24V

-

Z

Other Special Specifications

-



Ordering Information

Specify code number and variables.
    - Code no.: PMC - Model / Input / Output1 / Ouput2 - Power, Ex. PMC-4A8N-X
    - Special Output Range, Ex. 0~20mA



Specifications

- Accuracy : ±0.2%of Full Scale
- Temperature Coefficient : ±0.015%/°C
- Response Time : 0.5 Sec or less(0~90%), Normal
- Input Range : 100Ω ~ 100kΩ(Free : 3-wire only)
- Insulation Resistance : 100MΩ or More with 500V DC between Input, Output and Power
- Dielectric Strength : 1500V AC 0.5mA/Min (Input to Output to Power)
- Display Range : -1999 to 9999 (Available Decimal Point)
- Display Unit : %, V, A, mV, mA, etc.
- Power Supply : AC 100~120V, 200~230V 50/60Hz (about 3VA) or DC 18~30V (about 3Watts)
- Operating Temperature : -5 ~ +55°C
- Operating Humidity : 90% RH max.(Non-condensing)
- Isolation : Input to Output to Power
- Adjustment : Zero & Span(Separation) ±30% of F.S
- Display : 4 digits
- Housing Material : Plastic ABS(Polycarbonate), Black
- Mounting : Wall or Rail mounting (Plug-in Type)
- Dimension : 52(W) × 77(H) × 112(D)mm
- Weight : about 400g

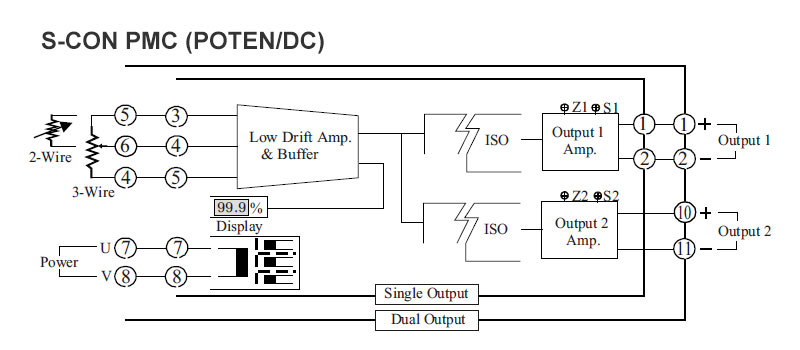

Schematic Circuit & Connection Diagram
