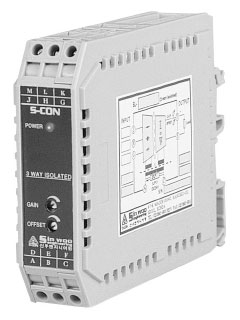

S-CON SL-IPD (ISO/PDB) Slim Isolation Signal Power Distributor

Supply Power to 2-wire single loop system and function as an isolator at the same time. Transmitter Power Supply

S-CON SL-IPD (ISO/PDB)

Input

Output

Power

A: 2-wire Current Loop
with 24V Power Supply

1: DC 0~5V

2: DC 1~5V

3: DC 0~20mA

4: DC 4~20mA

X: AC 85~265V, 50/60Hz

Y: DC 24V

Model & Suffix Code

Input Type & Range Selection

Code	Signal
A	2-wire Current Loop with 24V Power Supply
R	Other Special Specifications

Output Type & Range Selection

Code	Signal	Load Resistance
1	DC 0~5V	750Ω or less
2	DC 1~5V	750Ω or less
3	DC 0~20mA	750Ω or less
4	DC 4~20mA	750Ω or less
R	Other Special Specifications	-

Power Supply

Code	Voltage	Frequency
X	AC 85~265V	50/60Hz
Y	DC 24V	-
Z	Other Special Specifications	-

Ordering Information

Specify code number and variables.
- Code no.: SL-IPD - Input / Output - Power, Ex. SL-IPD-A1-Y
- Specify special Output Range, Ex. 0~5mA

Specifications

- Accuracy : ±0.2%of Full Scale
- Temperature Coefficient : ±0.015%/°C
- Response Time : 0.1 Sec or less(0~90%), Normal
- Insulation Resistance : 100MΩ or more with 500V DC between Input, Output and Power
- Dielectric Strength : 1500V AC 0.5mA/Min (Input to Output to Power)
- Power Supply : DC 18~30V(Max. Current : 100mA)-Reverse Polarity protected
- Operating Temperature : 0 ~ 40°C(Storage : -20 ~70°C)
- Operating Humidity : 90% RH max.(Non-condensing)
- Isolation : Input to Output to Power
- Easy Calibration of the Gain(Max.±40%of F.S) and Offset(Max.±20% of F.S)
- Triple Isolation for using on input & output of the PLC
- Housing Material : Plastic ABS(Resin), Gray
- Mounting : Rail mounting
- Dimension : 22.5(W) × 75(H) × 107(D)mm
- Weight : about 120g

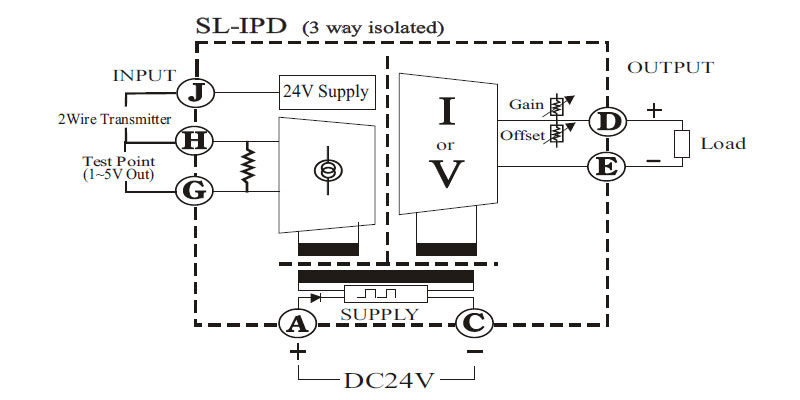

Schematic Circuit & Connection Diagram
