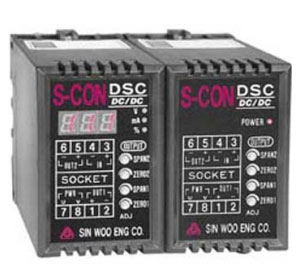

S-CON DSC (DC/DC)
Isolated DC Signal Converter
Isolating signal transmitter
and output isolated DC signals. Isolation Amplifier
and
Isolation Signal Splitter
|
S-CON DSC (DC/DC)
|
Input
|
Output
|
Power
|
|
|
A: DC 0~10mV
B: DC
0~100mV
C: DC 0~5V
D: DC 0~10V
E: DC
1~5V
F: DC 0~1mA
G: DC
0~20mA
H: DC 4~20mA
|
1: DC 0~10mV
2:
DC 0~100mV
3:
DC 0~5V
4: DC
0~10V
5: DC
1~5V
6: DC
0~1mA
7: DC 0~20mA
8: DC 4~20mA
|
W: AC 200~230V,
50/60Hz
X: AC 100~120V,
50/60Hz
Y: DC 24V
|
|

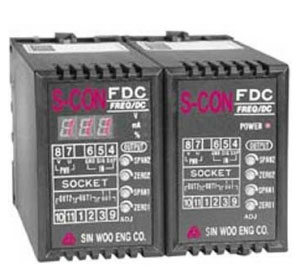

S-CON FDC (FREQ/DC)
Isolated Frequency Signal Converter
Input
pulse and output proportional
DC signals. Frequency Transmitter and
Isolation Signal Splitter
|
S-CON FDC (FREQ/DC)
|
Input
|
Output
|
Power
|
|
|
A: 3-wire Voltage Pulse
B: 2-wire Current Pulse
C: 2-wire Voltage Pulse
D: Open Collector
E:
Dry Contact
|
1: DC 0~10mV
2:
DC 0~100mV
3:
DC 0~5V
4: DC
0~10V
5: DC
1~5V
6: DC
0~1mA
7: DC 0~20mA
8: DC 4~20mA
|
W: AC 200~230V,
50/60Hz
X: AC 100~120V,
50/60Hz
Y: DC 24V
|
|

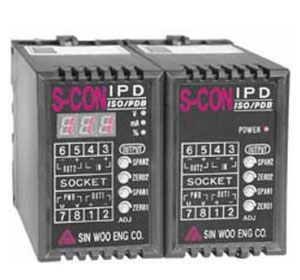

S-CON IPD (ISO/PDB)
Isolated Signal
Power Distributor
Supply
power to 2-wire single loop system and function
as an isolator at the same time. Transmitter
Power Supply, Isolation Signal Splitter
|
S-CON IPD (ISO/PDB)
|
Input
|
Output
|
Power
|
|
|
A: DC 4~20mA
with
24V Power Supply
|
1: DC 0~10mV
2:
DC 0~100mV
3:
DC 0~5V
4: DC
0~10V
5: DC
1~5V
6: DC
0~1mA
7: DC 0~20mA
8: DC 4~20mA
|
W: AC 200~230V,
50/60Hz
X: AC 100~120V,
50/60Hz
Y: DC 24V
|
|

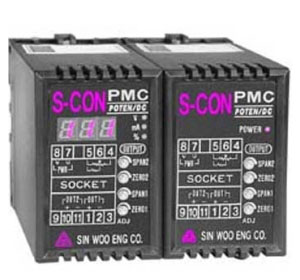

S-CON PMC (POTEN/DC)
Isolated Potentiometer
Signal Converter
Input
2 or 3-wire potentiometer value of 100Ω
~ 100kΩ and output isolated DC signals.
Potentiometer Transmitter, Isolation
Signal Splitter
|
S-CON PMC (POTEN/DC)
|
Input
|
Output
|
Power
|
|
|
A: 100Ω ~ 100kΩ
|
1: DC 0~10mV
2:
DC 0~100mV
3:
DC 0~5V
4: DC
0~10V
5: DC
1~5V
6: DC
0~1mA
7: DC 0~20mA
8: DC 4~20mA
|
W: AC 200~230V,
50/60Hz
X: AC 100~120V,
50/60Hz
Y: DC 24V
|
|

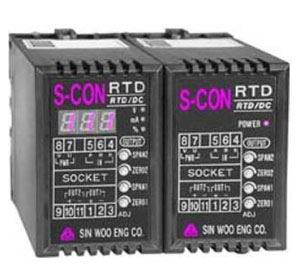

S-CON RTD (RTD/DC)
Isolated Temperature (RTD)
Signal Converter
Input
2 or 3-wire Resistance Temperature Detector
(RTD, Pt100) and output isolated
and linearized DC signals. Temperature Transmitter
and
Isolation Signal Splitter
|
S-CON RTD (RTD/DC)
|
Input
|
Output
|
Power
|
|
|
A: -50 ~ +50°C,
JIS
B: 0 ~ 50°C,
JIS
C: 0 ~ 100°C,
JIS
D: 0 ~ 200°C,
JIS
E: 0 ~ 300°C,
JIS
F: 0 ~ 400°C,
JIS
G: -50 ~ +50°C,
DIN
H: 0 ~ 50°C,
DIN
I: 0 ~ 100°C,
DIN
J: 0 ~ 200°C,
DIN
K: 0 ~ 300°C,
DIN
L: 0 ~ 400°C,
DIN
|
1: DC 0~10mV
2:
DC 0~100mV
3:
DC 0~5V
4: DC
0~10V
5: DC
1~5V
6: DC
0~1mA
7: DC 0~20mA
8: DC 4~20mA
|
W: AC 200~230V,
50/60Hz
X: AC 100~120V,
50/60Hz
Y: DC 24V
|
|

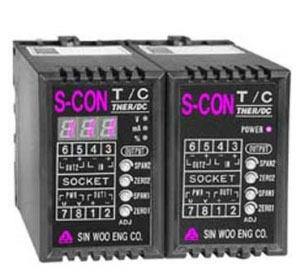

S-CON T/C (THER/DC)
Isolated Thermocouple
Signal Converter
Input
standard thermocouples and output isolated
and linearized DC signals. Thermocouple Transmitter
and
Isolation Signal Splitter
|
S-CON T/C (THER/DC)
|
Input
|
Output
|
Power
|
|
|
A: K Type (CA)
B: E Type
(CRC)
C: J Type (IC)
D: T Type (CC)
E: R Type
|
1: DC 0~10mV
2:
DC 0~100mV
3:
DC 0~5V
4: DC
0~10V
5: DC
1~5V
6: DC
0~1mA
7: DC 0~20mA
8: DC 4~20mA
|
W: AC 200~230V,
50/60Hz
X: AC 100~120V,
50/60Hz
Y: DC 24V
|
|

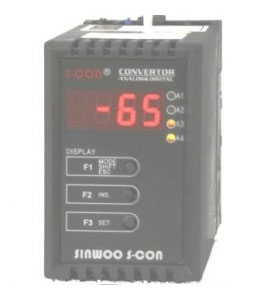

S-CON AS (ALARM/SET)
Isolated Signal
Alarm Setter
Input
various analog signals and output
max 4 alarms. Current Measuring
Contactor, Voltage Measuring Contactor and
Temperature Alarm Unit
|
S-CON AS (ALARM/SET)
|
Input
|
Output
|
Power
|
|
|
A: DC Voltage
B: DC Current
C: AC Voltage
D: AC Current
E: RTD Sensor (Pt100)
G: Potentiometer
|
1: SPDT 1-Point
2: SPDT 2-Point
3: SPST 3-Point
4:
SPST 4-Point
|
W: AC 200~230V,
50/60Hz
X: AC 100~120V,
50/60Hz
Y: DC 24V
|
|
|

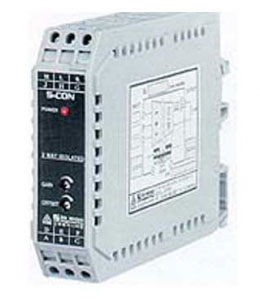

S-CON SL-DSC (DC/DC)
Slim DC Signal Converter
Compact Isolating
Signal Transmitter and output isolated
DC signals. Isolation Amplifier
|
S-CON SL-DSC (DC/DC)
|
Input
|
Output
|
Power
|
|
|
A:
DC 4~20mA
B:
DC 0~20mA
C:
DC 1~5V
D:
DC 0~5V
|
1:
DC 0~5V
2:
DC 1~5V
3:
DC 0~20mA
4:
DC 4~20mA
|
X: AC 85~265V, 50/60Hz
Y:
DC 24V
|
|

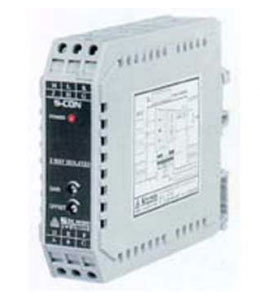

S-CON SL-IPD (ISO/PDB)
Slim
Isolation Signal Power Distributor
Supply
Power to 2-wire single loop system and function
as an isolator at the same time. Transmitter
Power Supply
|
S-CON SL-IPD (ISO/PDB)
|
Input
|
Output
|
Power
|
|
|
A:
2-wire Current Loop
with
24V Power Supply
|
1:
DC 0~5V
2:
DC 1~5V
3:
DC 0~20mA
4:
DC 4~20mA
|
X: AC 85~265V, 50/60Hz
Y:
DC 24V
|
|

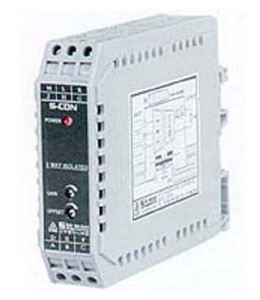

S-CON SL-PMC (POTEN/DC)
Slim Potentiometer Signal Converter
Input 2 or 3-Wire
potentiometer value of 100Ω ~ 100kΩ
and output isolated DC Signals. Potentiometer Transmitter
|
S-CON SL-PMC (POTEN/DC)
|
Input
|
Output
|
Power
|
|
|
A
: 100Ω ~ 100kΩ
|
1:
DC 0~5V
2:
DC 1~5V
3:
DC 0~20mA
4:
DC 4~20mA
|
X: AC 85~265V, 50/60Hz
Y:
DC 24V
|
|

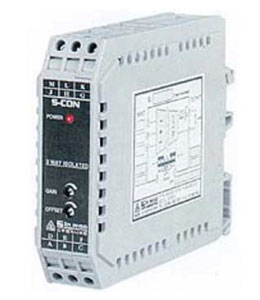

S-CON SL-RTD (RTD/DC)
Slim
Temperature (RTD) Signal Converter
Input
3-wire Resistance Temperature Detector
(RTD, Pt100) signals and output isolated
and linearized DC signals. Temperature Transmitter
|
S-CON SL-RTD (RTD/DC)
|
Input
|
Output
|
Power
|
|
|
A : Pt100,
JIS
B : Pt100,
DIN
|
1:
DC 0~5V
2:
DC 1~5V
3:
DC 0~20mA
4:
DC 4~20mA
|
X: AC 85~265V, 50/60Hz
Y:
DC 24V
|
|
|
|
