S-CON 300 Multi-Function Digital Signal Indicater & Isolated Analog Output

DIN size, 4-digit DC panel meter with isolated analog output, Automatic calculation Display range, ZERO & SPAN of input

S-CON 300

Input

Output

Power

A: DC 0~10mV

B: DC 0~100mV

C: DC 0~5V

D: DC 0~10V

E: DC 1~5V

F: DC 0~1mA

G: DC 0~20mA

H: DC 4~20mA

1: DC 0~10mV

2: DC 0~100mV

3: DC 0~5V

4: DC 0~10V

5: DC 1~5V

6: DC 0~1mA

7: DC 0~20mA

8: DC 4~20mA

W: AC 200~230V, 50/60Hz

X: AC 100~120V, 50/60Hz

Y: DC 24V

General Specifications

Construction

Panel flush mounting

Connection

Screw terminals

Housing material

Plastic(resin) light-gray

Input configuration

Differential Input

Scaling

Functional switches at the front panel

Display

LED

0.6 inch or 1 inch 7-segment, red or green (Option)

Number of display digits

4(-9999 ~ 9999)

Decimal point position

3 positions selected by a programmed functional switches at the front panel

Set-point adjustments

Front-accessed programmed functional switches

Over-range indication

Display "OVEr"

Engineering unit indication

Sticker attached

Burn Out

Selectable Up-Scale or Down-Scale

Installation

Power Supply

AC 110V/220V, 50/60Hz

DC 24V ±10%, 5VA

Operating temperature

0 to 55°C (32 to 131°F)

Operating humidity

20-80% RH (Non-condensing)

Mounting

Panel flush mounting

Size

W96 x H48 x D118mm (3.78" x 1.89" x 4.65")

Performance

Accuracy

±0.1% of FS

Temperature coefficient

±0.01% of FS + 0.1 digit / °C

Insulation resistance

100MΩ or more with 500VDC

Dielectric strength

AC1500V at 1 Minute (input to power)

Input

DC voltage

0 ~ 300VDC, minimum span: 10mV

Input	Impedance
0 - 10 mV	10 KΩ or more
0 - 100 mV	100 KΩ or more
0 - 10 V	1 MΩ or more
> 12 V	2.5 KΩ / V

DC current

Resister incorporated

Input	Resistance
4 - 20 mA	250 Ω
10 - 50 mA	100 Ω
0 - 1 mA	1000 Ω

PMC

Input: 100~100KΩ

RTD

Input: -200~+600°C

Output

DC current

Output	Load Resistance	Impedance
4 - 20 mA	0 - 500 Ω	5 MΩ or more
0 - 20 mA	0 - 500 Ω
0 - 10 mA	0 - 1000 Ω
0 - 1 mA	0 - 10 KΩ

DC voltage

Output	Load Resistance	Impedance
0 - 10 mV	10 KΩ or more	10 Ω or less
0 - 100 mV	100 KΩ or more	100 Ω or less
1 - 5 V	1 KΩ or more	0.1 Ω or less
0 - 10 V	10 KΩ or more	0.1 Ω or less

Ordering Information

Specify code number and variables

Code number

S-CON 300-Input, Output, Power (e.g S-CON 300-DNX)

Special input, outputs range

Code, Display range, Input range (e.g S-CON 300-DNX, 0-9999, 4-20mA)

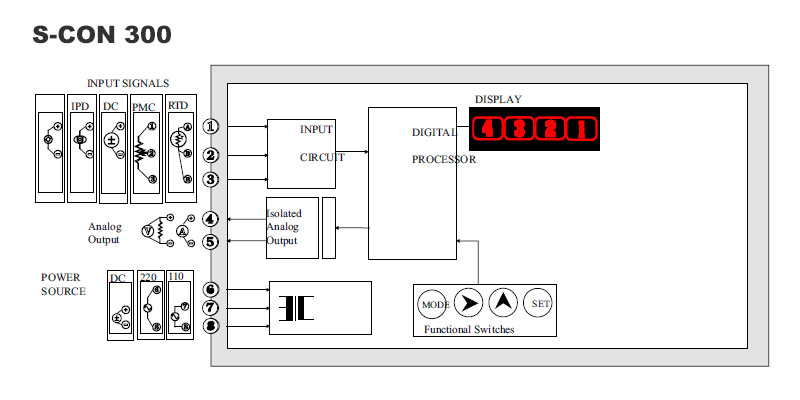

Schematic Circuit & Connection Diagram
