S-CON IPD (ISO/PDB)
Isolated Signal
Power Distributor
Supply
power to 2-wire single loop system and function
as an isolator at the same time. Transmitter
Power Supply, Isolation Signal Splitter
|

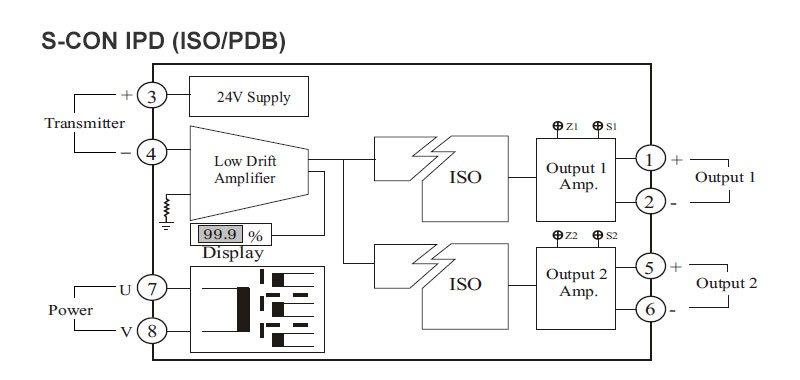

S-CON IPD (ISO/PDB)
|
Input
|
Output
|
Power
|
|
|
A: DC 4~20mA
with
24V Power Supply
|
1: DC 0~10mV
2:
DC 0~100mV
3:
DC 0~5V
4: DC
0~10V
5: DC
1~5V
6: DC
0~1mA
7: DC 0~20mA
8: DC 4~20mA
|
W: AC 200~230V,
50/60Hz
X: AC 100~120V,
50/60Hz
Y: DC 24V
|
|
|
Model & Suffix Code
Model Type Selection
|
Code
|
Output
|
Display
|
|
2
|
1 Output
|
with Display
|
|
4
|
1 Output
|
without Display
|
|
7
|
2 Outputs
|
with Display
|
|
9
|
2 Outputs
|
without Display
|
Input Type & Range Selection
|
Code
|
Signal
|
|
A
|
DC 4~20mA with DC 24V Power Supply
|
|
R
|
Other Special Specifications
|
Output Type & Range Selection (Available
for Output 1 & Output 2)
|
Code
|
Signal
|
Load Resistance
|
|
1
|
DC 0~10mV
|
10kΩ or more
|
|
2
|
DC 0~100mV
|
100kΩ or more
|
|
3
|
DC 0~5V
|
5kΩ or more
|
|
4
|
DC 0~10V
|
10kΩ or more
|
|
5
|
DC 1~5V
|
5kΩ or more
|
|
6
|
DC 0~1mA
|
0~15kΩ
|
|
7
|
DC 0~20mA
|
0~750Ω
|
|
8
|
DC 4~20mA
|
0~750Ω
|
|
R
|
Other Special Specifications
|
-
|
|
N
|
Not Used
|
-
|
Power Supply
|
Code
|
Voltage
|
Frequency
|
|
W
|
AC 200~230V
|
50/60Hz
|
|
X
|
AC 100~120V
|
50/60Hz
|
|
Y
|
DC 24V
|
-
|
|
Z
|
Other Special Specifications
|
-
|
Ordering Information
Specify code number and variables.
- Code no.: IPD - Model / Input
/ Output1 / Ouput2 - Power, Ex. IPD-4A8N-X
- Special Output Range, Ex.
0~20mA
Specifications
- Accuracy : ±0.2%of Full Scale
-
Temperature Coefficient : ±0.015%/°C
-
Response Time : 0.5 Sec or less(0~90%), Normal
-
Insulation Resistance : 100MΩ or more with 500V
DC between Input, Output and Power
- Dielectric Strength : 1500V AC 0.5mA/Min (Input
to Output to Power)
- Display Range : -1999 to 9999 (Available Decimal
Point)
- Display Unit : %, V, A, mV, mA, etc.
-
Power Supply : AC 100~120V, 200~230V 50/60Hz (about
3VA) or DC 18~30V (about 3Watts)
- Operating Temperature : -5 ~ +55°C
-
Operating Humidity : 90% RH max. (Non-condensing)
-
Isolation : Input to Output to Power
- Adjustment : Zero & Span(Separation) ±10%
of
F.S
- Display : 4 digits
-
Housing Material : Plastic ABS(Polycarbonate), Black
-
Mounting : Wall or Rail mounting (Plug-in Type)
-
Dimension : 52(W) × 77(H) × 112(D)mm
- Weight : about 400g
|
