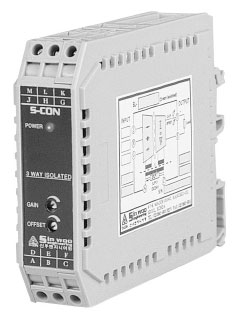

S-CON SL-PMC (POTEN/DC)     Slim Potentiometer Signal Converter

Input 2 or 3-wire potentiometer value of 100Ω ~ 100kΩ and output isolated DC Signals. Potentiometer Transmitter

S-CON SL-PMC (POTEN/DC)

Input

Output

Power

A : 100Ω ~ 100kΩ

1: DC 0~5V

2: DC 1~5V

3: DC 0~20mA

4: DC 4~20mA

X: AC 85~265V, 50/60Hz

Y: DC 24V

Model & Suffix Code

Model Type Selection

Code

Input Type

1

2-wire Potentiometer Input

2

3-wire Potentiometer Input



Input Type & Range Selection

Code

Signal

A

100Ω ~ 100kΩ

R

Other Special Specifications



Output Type & Range Selection

Code

Signal

Load Resistance

1

DC 0~5V

750Ω or less

2

DC 1~5V

750Ω or less

3

DC 0~20mA

750Ω or less

4

DC 4~20mA

750Ω or less

R

Other Special Specifications

-



Power Supply

Code

Voltage

Frequency

X

AC 85~265V

50/60Hz

Y

DC 24V

-

Z

Other Special Specifications

-



Ordering Information

Specify code number and variables.
    - Code no.: SL-PMC - Input / Output - Power, Ex. SL-PMC-2A1-Y
    - Specify special Output Range, Ex. 0~5mA





Specifications

- Accuracy : ±0.2%of Full Scale
- Temperature Coefficient : ±0.015%/°C
- Response Time: 0.1Sec or less(0~90%), Normal
- Insulation Resistance : 100MΩ or more with 500V DC between Input, Output and Power
- Dielectric Strength : 1500V AC 0.5mA/Min (Input to Output to Power)
- Power Supply : DC 18~30V (Max. Current : 100mA) - Reverse Polarity protected
- Operating Temperature : 0 ~ 40°C (Storage : -20 ~70°C)
- Operating Humidity : 90% RH max.(Non-condensing)
- Isolation : Input to Output to Power
- Easy Calibration of the Gain (Max.±40%of F.S) and Offset (Max.±20% of F.S)
- Triple Isolation for using on input & output of the PLC
- Housing Material : Plastic ABS(Resin), Gray
- Mounting : Rail mounting
- Dimension : 22.5(W) × 75(H) × 107(D)mm
- Weight : about 120g

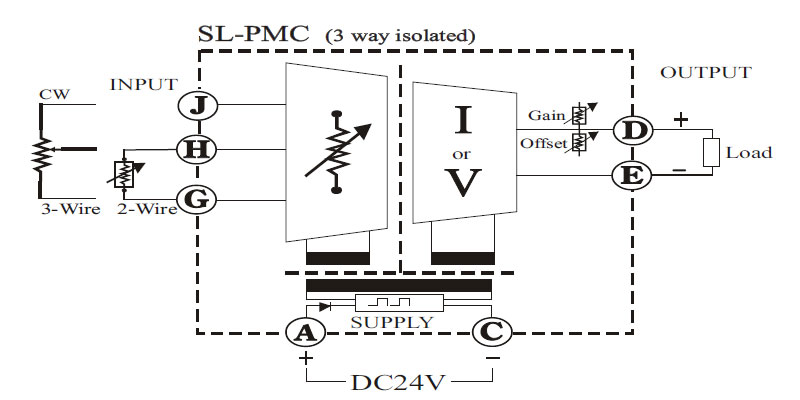

Schematic Circuit & Connection Diagram
